Lepu Seal OEM high quality bellow seal free sample for beverage

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
TYPE 2
Shaft size:
1/2-3 inch
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. The fiber as well as the fabric of Lepu Seal bellow seal is minimally processed and finished without harmful chemical softeners, chlorine bleach, and heavy metal dyes. During the operation, Lepu seals enjoy higher precision
2. The product helps clean the pool efficiently and quickly, which makes it particularly useful for impromptu gatherings or parties. Lepu seal is made of strong quality stainless steel
3. The product is highly resistant to color fading. It is treated with a special technique to enhance its capacity on color retention. Lepu can customize the products to satisfy the different needs of customers


Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |

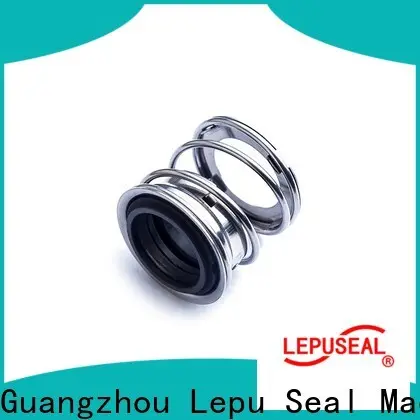

John crane mechanical seal TYPE 2 is available in single, double and balanced arrangements. Non-clogging, single-coil spring allows for greater dependability than multiple spring designs, and it will not run foul due to fluid contact.

The Type 2 elastomer bellows seal is widely recognized as the industry's workhorse., the Type 2 mechanical seal is popular using in pumps, mixers, blenders, agitators, air compressors,  fans and other rotary shaft equipment.

The mechanical seal type 2 is a punched light pump seal, selling in big quantity in the market, more than millions pcs per year.

Lepu seal is a leading manufacturer of the john crane mechanical seal type 2, providing promised quality stamping seals to hundreds of clients.



PRODUCT ADVANTAGE

bg



1
1
Top quality stainless steel for the frame and spring
1
1
Different type material match depends on client’s request
1
1
100% follow original john crane seal design
1
1
Strong ability fit for mass order quanity



Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-1
Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-2
Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-3
Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-5
  • ◪ Sealing Face: Carbon, SIC, TC, Ceramic

  • ◪ Secondary Sealing Combination: NBR, EPDM, VITON

  • ◪ Sealing Frame: stainless steel

  • ◪ Working Temperature:-20℃ --- 120℃

  • ◪ Working pressure: ≤ 1.4MPA

  • ◪ Linear Speed:≤ 15m/s

  • ◪ Technical drawing


Product feature

◪  Designed with a drive band and drive notches that eliminate overstressing of bellows to absorb both breakout and running torque

◪  Automatic adjustment compensates for abnormal shaft-end play and run-out

◪  Special balancing allows for higher pressure applications



PRODUCT TECHNICAL DRAWING

bg


Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-6


Specification and size :


Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-7



PRODUCT APPLICATION

bg


Pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment


Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-8


Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-9
Lepu-Best Sell Multi-purpose John Crane Mechanical Seal Type 2 |-10



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
