----------Top quality of Mechanical Seal WB2----------
This series adopts perfluoroethylene bellows. It is designed with multi-spring structure. The spring of LPWB2 type is protected threugh a perfluoroethylene cover. This Teflon Bellow Seal is one of the most commonly used seals for corrosion resistant pumps.
Replacement of WB2, PTFE bellows design, outside mounted, used in strong corrosive chemical occasions. Mechanical seal type1 is widely use for water pump.
WB2 is also a featured seal item in our factory, we do offer high quality with very nice price for our professional mechanical seal clients in the past years.
Contact us without any hesitation if you are looking for this WB2 mechanical seal for your pumps or any equipment.
Structure Description:
Replacement of WB2, PTFE bellows design, outside mounted, used in strong corrosive chemical occasions.1. mechanical seal type1 is widely use for water pump.
Advantages:
Size: from 16-60mm, as below
Application: working for clean water pump.
Certification: ISO9001, SGS
Benefit:
Delivery time: 20-30days.
Lepu seal can offer WB2 mechanical seal and WB-10T mechanical seal together.
Customized products and OEM is welcomed , small order for john crane mechanical seal is acceptable.
If it is not the one you need, you can pass us your drawing ,material,shaft size for quotation. small order for mechanical seal WB is acceptable.
Self-adjusting to shaft misalignments deflections, the length of the contact area of the bellows with the shaft is an optimum compromise between ease of assembly (less friction) sufficient adhesive force for torque transmission, it fulfills very specific leakage requirements.
PRODUCT TECHNICAL SPECIFICATION
bg

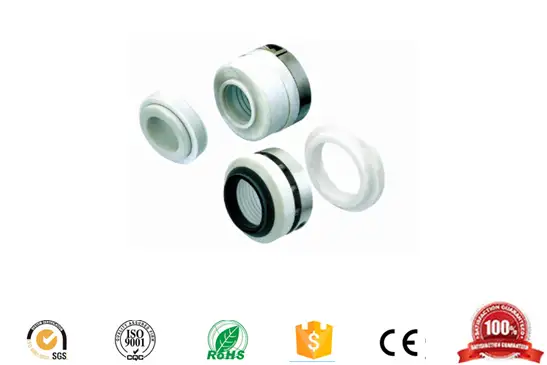

Lepu Quality Mechanical Seal Wb2 PTFE Teflon Bellow Seal
- Brand Name
- LEPU
- Place of Origin
- China
- Model Number
- LP-WB2
- Shaft size
- 16-60mm
- Stationary Ring
- Ceramic/SIC/SIC
Rotary Tefion/SIC/SIC
- Secondary Seal
- Teflon
- Medium Sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, and nitric acid with various degrees.etc.
- Spring and Metal Part Stainless steel
- Temperature -20℃--120℃
- Pressure ≤0.5Mpa
- Speed ≤10m/s
WHO IS LEPUSEAL FACTORY?
bg
1
1
professional mechanical seal manufacturer from china
1
1
focus on mechanical seal since 1998
1
1
cover many mechanical seal product range
1
1
stable quality with reasonable price
1
1
fast delivery with online service after sale
1
1
responsible and efficient
Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
