Lepu seal burgmann mechanical seal get quote high pressure

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
M3N
Shaft size:
6-80mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
1 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Comparison
LEPU SEAL has the ability to meet different needs. Bellows Seal is available in multiple types and specifications. The quality is reliable and the price is reasonable.Compared with products in the same category, Bellows Seal we produce is equipped with the following advantages.
  • Lepu seal burgmann mechanical seal get quote high pressure 11
    Lepu seal burgmann mechanical seal get quote high pressure 12
Company Advantages
1. The quality of Lepu burgmann mechanical seal selection guide is guaranteed. Its manufacture is concerned with consumer safety by ensuring that health standards are upheld during production.
2. Our qualified team effectively controls this high quality product by implementing the quality control system.
3. In burgmann mechanical seal product development, Guangzhou Lepu Machinery CO., LTD has a number of industry leading engineers.

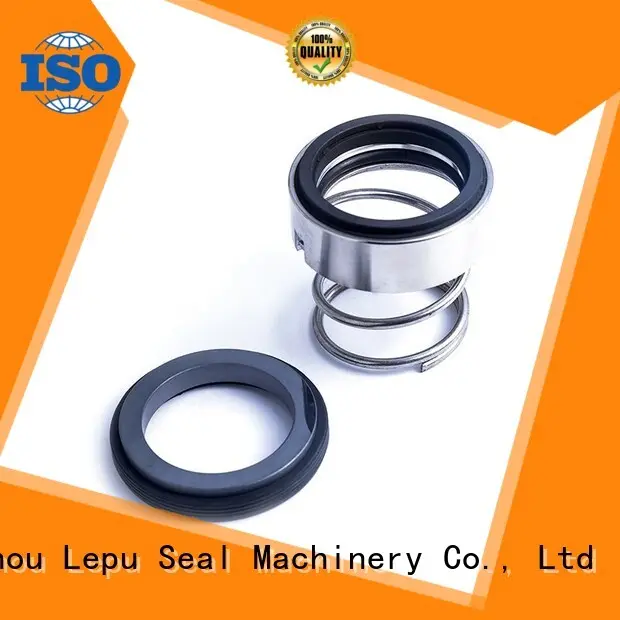

Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For


This mechanical seal is a standard seal for plain shafts, this m3n mechanical seal designed with rotating conical spring, and it is a single and unbalance seal, and it is a dependent on direction of rotation seal type

As a standard mechanical seal, burgmann m3n seal is widely used in many kinds of industry pumps, like water pumps, sewage pumps, submerged pumps, chemical pumps, and so on.



PRODUCT ADVANTAGE

bg



1
1
100% same design as a replacement for burgmann m3n mechanical seal
1
1
Different type material for seal face, matching clients running request
1
1
Top quality stainless steel SS304 for seal frame and spring
1
1
Left rotating or right rotating spring are all available in our factory



Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-1
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-2
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-3

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-4
  • ◪  Universal application opportunities

  • ◪  Insensitive to low solids content

  • ◪  No damage of the shaft by set screws

  • ◪  Large choice of materials

  • ◪  Short installation lengths possible (G16)

  • ◪  Short installation lengths possible (G16)



PRODUCT TECHNICAL DRAWING

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-5



SHAFT SIZE LIST

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-6


Working Range:

Pressure: p1 = 10 bar (145 PSI)
Temperature:
t = -20 °C ... +140 °C (-4 °F ... +355 °F)
Sliding velocity: vg = 15 m/s (50 ft/s)
Axial movement: ±1.0 mm



PRODUCT APPLICATION

bg


◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Building services industry

◪  Food and beverage industry

◪  Sugar industry

◪  Low solids content media

◪  Water and sewage water pumps

◪  Submersible pumps

◪  Chemical standard pumps

◪  Eccentric screw pumps

◪  Cooling water pumps


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-7
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-8



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-9


undefined
undefined
undefined
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-13
undefined
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-15





Company Features
1. Guangzhou Lepu Machinery CO., LTD is proudly providing quality burgmann mechanical seal selection guide to the world markets using our exclusive industry experience and expertise.
2. By introducing high-end technology, Lepu has successfully manufactured qualified burgmann mechanical seal .
3. burgmann mg1 seal is regarded by Guangzhou Lepu Machinery CO., LTD as its service theory. Get an offer! Facing the future, Guangzhou Lepu Machinery CO., LTD will adhere to the brand concept of burgmann mechanical seal suppliers . Get an offer! Lifetime warranty & Technical support in a lifetime are promised for our burgmann seals . Get an offer! What is most proud of Guangzhou Lepu Machinery CO., LTD is that we have outstanding burgmann mechanical seal catalogue talents who are working hard to build a 'world-class eagleburgmann mechanical seal enterprise group'. Get an offer!
