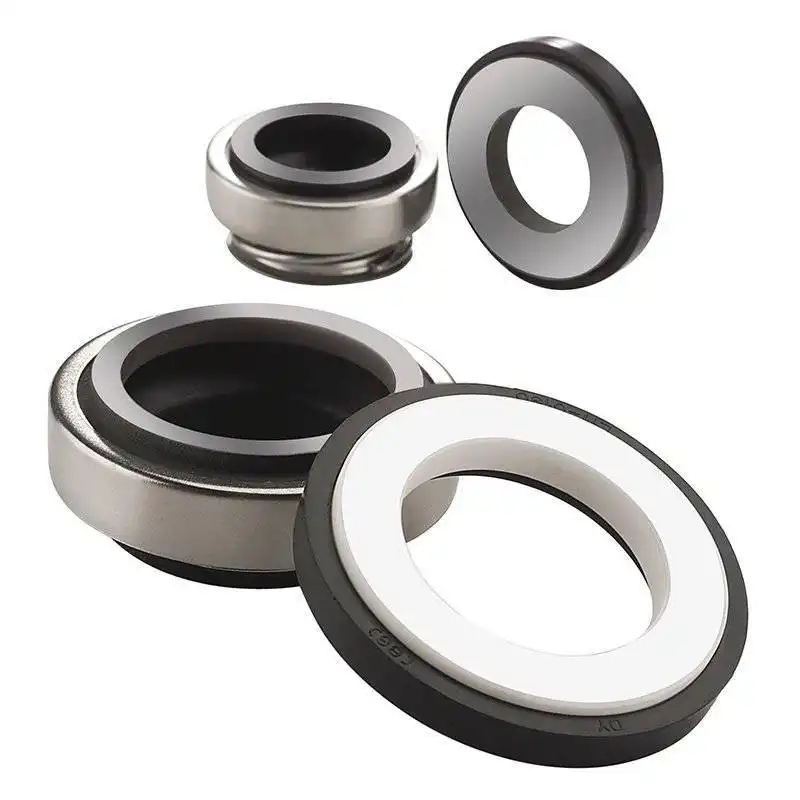

Factory directly high cost performance mechanical seal BT 301 1

Factory directly high cost performance mechanical seal BT 301 2

Factory directly high cost performance mechanical seal BT 301 3

Factory directly high cost performance mechanical seal BT 301 4

Factory directly high cost performance mechanical seal BT 301

Brand Name:

Lepu

Place of Origin:

Guangzhou, China

Model Number:

301

Shaft size:

6-70mm

Avaiable material:

CARBON/SIC/TC/CERAMIC

Certification:

SGS,ISO,CE/UL/SGS/…

OEM/ODM Availability:

Yes

Package:

Carton box

Delivery Time:

15 day

Supply Ability:

100000set/month

MOQ:

1 set

Payment Terms:

L/C, T/T, Western Union, MoneyGram

Inquiry

Write a Review

Lepu-Factory Directly High Cost Performance Burgmann Mechanical

As a kind of high cost performance mechanical seal, Burgmann mechanical seal BT-AR 301 is widely used in water and waste water pumps, this seal designed with a rubber bellows, is a unbalance mechanical seal, single spring and Independent of direction of rotation.

The short axial length (this allows for more economic pump construction and saves material), and the best quality/price ratio

People like to use the ceramic for the seal ring because low cost, with very big quantity, even more than millions of units per year.

PRODUCT ADVANTAGE

High cost performance mechanical seal in the market

Big factory fit for big quantity order

Can also be used as a multiple seal in tandem or back-to-back arrangement

Competitive price for TC material

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-1

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-2

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-3

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

click here to get free seal sample！

PRODUCT TECHNICAL SPECIFICATION

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-5

◪ Rubber bellows mechanical seal
◪ Unbalanced
◪ Single spring
◪ Independent of direction of rotation
◪ Short axial installation length

PRODUCT TECHNICAL DRAWING

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-6

SHAFT SIZE LIST

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-7

Working Range:

Pressure: p1* = 6 bar (87 PSI),
vacuum … 0.5 bar (7.45 PSI) up to 1 bar (14.5 PSI) with seat locking
Temperature:
t* = -20 °C … +120 °C (-4 °F … +248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm

PRODUCT APPLICATION

◪ Water and waste water technology

◪ Pool and spa applications

◪ Household appliances

◪ Domestic and garden pumps

◪ Whirlpool and swimming pool pumps

◪ Dishwasher pumps

◪ Submersible motors / pumps

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-8

Lepu-Factory Directly High Cost Performance Burgmann Mechanical-9

DISPLAY DIAGRAM

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
