Lepu seal bellow seal customization for food

Company Advantages
1. Adoption level of production technologies for Lepu bellow seal is in good progress. Lepu products cost less than that of the original
2. For manufacturers, it is a value-for-money product. It promotes economic growth by increasing productivity and cutting production costs. Lepu can customize the products to satisfy the different needs of customers
3. The product contains little or virtually zero preservatives. Some preservatives like parabens, dyes, or oils will not be easily present. Lepu has strict requirements in the production process
4. The product will not accumulate too much heat. Its substrate used has improved heat dissipation, which greatly lowers the operating temperature. Compact gland allows Lepu seal to be used in limited space
5. The product is scratch and wear resistance. Its materials are all abrasion-proof and have excellent chemical and physical strength and stiffness. Lepu seals can ensure high efficiency

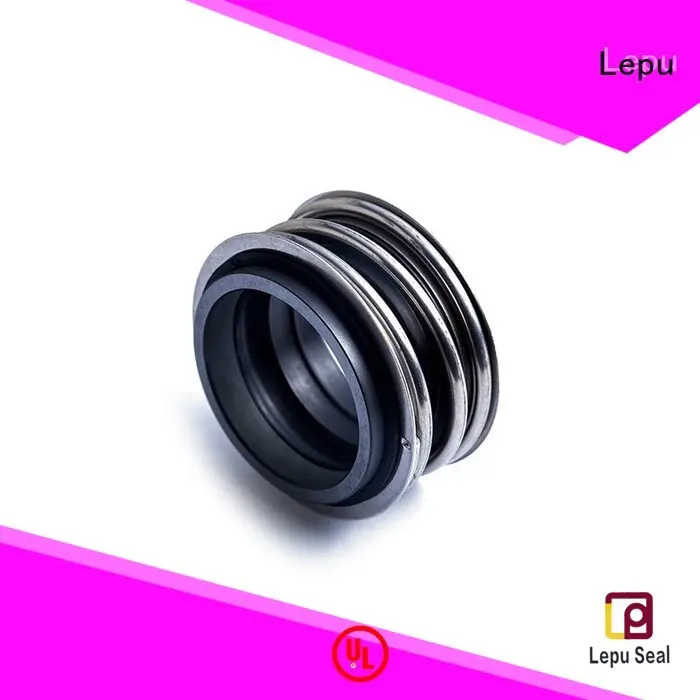

Burgmann mechanical seal MG1/MG12/MG13 is a famous elastomer bellows seal widely used in many kind of industry, like Process industry, Chemical industry, Pulp and paper industry, Water and waste water technology, Food and beverage industry, Sugar industry, and so on.

The MG1 can also be used as a multiple seal in tandem or in a back-to-back arrangement. Installation proposals available upon request.

And for different using, there several type of the rubber tail, a middle long tail is MG12 mechanical seal, and longest tail is MG13 type. Please choose the right type tail when buying this burgmann mechanical seal MG1 type.

Advantage introduction:competitive price+ fast delivery+top after-sale service

Working Range:

Pressure: p1 = 16 bar (230 PSI),
vacuum ... 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature:
t = -20 °C … +140 °C
(-4 °F … +284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm

◪  Process industry

◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Food and beverage industry

◪  Sugar industry

◪  Chemical standard pumps

◪  Helical screw pumps

◪  Stock pumps

◪  Circulating pumps

◪  Submersible pumps

◪  Water and waste water pumps

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.

Company Features
1. Guangzhou Lepu Machinery CO., LTD wins the market and builds its reputation with its carefully crafted bellow seal .
2. Guangzhou Lepu Machinery CO., LTD has exceptional innovative manufacturing facilities.
3. Lepu earnestly implements the principle of metal bellow mechanical seal and adheres to the principle of bellow type mechanical seal . Inquiry!
