Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 1
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 2
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 3
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 4
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 5
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 6
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 7
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 8
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 9
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 10
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 1
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 2
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 3
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 4
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 5
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 6
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 7
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 8
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 9
Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 10

Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
MG1/MG12/MG13
Shaft size:
10-100mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
1 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Comparison
LEPU SEAL insists on the use of high-quality materials and advanced technology to manufacture Bellows Seal. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.Compared with other same kind of products in the market, LEPU SEAL's Bellows Seal is equipped with the following outstanding advantages.
  • Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 11
    Lepu portable eagle burgmann mechanical seals for pumps free sample high temperature1 12
Company Advantages
1. Lepu burgmann mechanical seal m7n is stringently inspected by the QC team. Its cooling device, PCB, indicator, current limiting resistor, internal wirings, and other parts have been inspected by virtue of specific equipment.
2. The product is absolutely quality-assured as it has been thoroughly tested on every stage of the production process by our quality controllers as per the set industry norms.
3. The quality of this product is highly secured as per the quality requirement of the customers.
4. Lepu has been always attaching great importance to the customer service.
5. Guangzhou Lepu Machinery CO., LTD has a professional lab to ensure high quality for eagle burgmann mechanical seals for pumps.


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical

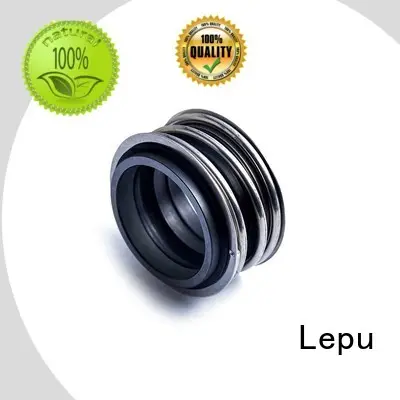

Burgmann mechanical seal MG1/MG12/MG13 is a famous elastomer bellows seal widely used in many kind of industry, like Process industry, Chemical industry, Pulp and paper industry, Water and waste water technology, Food and beverage industry, Sugar industry, and so on.

The MG1 can also be used as a multiple seal in tandem or in a back-to-back arrangement. Installation proposals available upon request.

And for different using, there several type of the rubber tail, a middle long tail is MG12 mechanical seal, and longest tail is MG13 type. Please choose the right type tail when buying this burgmann mechanical seal MG1 type.



PRODUCT ADVANTAGE

bg



1
1
100% same replacement for burgmann MG1/MG12/MG13
1
1
Different type Top quality material for seal face, matching clients running request
1
1
Different type rubber for different working liquid
1
1
Different color rubber is available according client’s request, like green, black, brown.



Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-1
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-2
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-3
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-5
  • ◪  For plain shafts

  • ◪  Single and dual seal

  • ◪  Elastomer bellows rotating

  • ◪  Unbalanced

  • ◪  Independent of direction of rotation

  • ◪  No torsion on bellows



PRODUCT TECHNICAL DRAWING

bg


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-6



SHAFT SIZE LIST

bg


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-7


Working Range:

Pressure: p1 = 16 bar (230 PSI),
vacuum ... 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature:
t = -20 °C … +140 °C
(-4 °F … +284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm



PRODUCT APPLICATION

bg


◪  Process industry

◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Food and beverage industry

◪  Sugar industry

◪  Chemical standard pumps

◪  Helical screw pumps

◪  Stock pumps

◪  Circulating pumps

◪  Submersible pumps

◪  Water and waste water pumps


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-8
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-9



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-10


undefined
undefined
undefined
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-14
undefined
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-16





Company Features
1. Based in rapidly developing China market, Guangzhou Lepu Machinery CO., LTD has become one of the key market players in developing and manufacturing burgmann mechanical seal m7n .
2. Guangzhou Lepu Machinery CO., LTD has been focusing on the development technology of eagle burgmann mechanical seals for pumps.
3. Our goal is to improve customer service in a significant way. We will endeavor to localize all the product services by establishing our branch companies for the worldwide channel to guarantee 100% customer satisfaction. We aim to be problem-solvers and partners, not just producers. We listen to customers and make what they want us to make. Then we deliver quickly-- minus any bureaucratic fuss.
