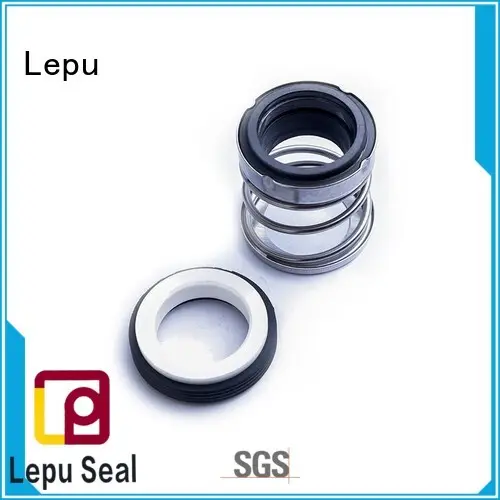

Lepu latest bellow seal OEM for high-pressure applications

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
TYPE 21
Shaft size:
1/2-4 inch
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Lepu elastomer seal design is designed and created independently by our professional team. Hydraulically balanced seal face technology reduces power consumption
2. Guangzhou Lepu Machinery CO., LTD's technical security and R&D capabilities are first class in the industry. Lepu has strict requirements in the production process
3. The product is notable for its high energy efficiency. This product consumes little energy or power to finish its task. Lepu seal is durable even running in bad environment
4. This product features high precision. It can produce an exact result every single time and repeat the exact same task with the same level. Lepu seal is 100% replacement as original


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type


John crane mechanical seal TYPE 21 is designed for centrifugal, rotary and turbine pumps, compressors, chillers and other rotary shaft equipment. Now this type 21 mechanical seal has become a general industry standard in mechanical seal field.

Carbon and silicon are 2 kind of popular material for the rotary and stationary seal ring, if in big quantity, in order to reduce the cost, people choose ceramic as the seal material.

For the secondary seal, NBR is a low cost material, and for some hard material like hot oil, chemical medium, epdm or viton are better choice.

Lepu seal factory had been a leading manufacturer in the past years, and we manufacture the john crane mechanical seal type 21 with stable and high quality, buy this mechanical seal type 21 from our seal factory is a reliable choice.



PRODUCT ADVANTAGE

bg



1
1
Type 21 almost a general industry standard mechanical seal
1
1
Lepu seal providing type 21 seal hundreds of thousand sets per year
1
1
100% replacement for original type 21 design
1
1
Lepu seal offer cheap price with fast delivery



Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-1
Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-2
Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-3

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-4
  • ◪ Sealing Face: Carbon, SIC, TC, Ceramic

  • ◪ Secondary Sealing Combination: NBR, EPDM, VITON

  • ◪ Sealing Frame: stainless steel

  • ◪ Working Temperature:-20℃ --- 120℃

  • ◪ Working pressure: ≤ 1.4MPA

  • ◪ Linear Speed:≤ 15m/s


Product feature

◪  Dent and groove design eliminates overstressing of the elastomer bellows to prevent bellows slip and protect the shaft and sleeve from wear

◪  Non-clogging, single-coil spring provides greater dependability than multiple spring designs and will not foul due to fluid contact.

◪  Flexible elastomer bellows automatically compensates for abnormal shaft-end play, run-out, primary ring wear and equipment tolerances.



PRODUCT TECHNICAL DRAWING

bg


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-5


Specification and size :


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-6



PRODUCT APPLICATION

bg


Pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-7


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-8
Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-9



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-10


Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-11
undefined
undefined
Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-14
undefined
Lepu-Factory Directly Wholesale Price John Crane Mechanical Seal Type-16
