Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

Lepu funky single mechanical seal free sample for food 1
Lepu funky single mechanical seal free sample for food 2
Lepu funky single mechanical seal free sample for food 3
Lepu funky single mechanical seal free sample for food 4
Lepu funky single mechanical seal free sample for food 5
Lepu funky single mechanical seal free sample for food 6
Lepu funky single mechanical seal free sample for food 7
Lepu funky single mechanical seal free sample for food 8
Lepu funky single mechanical seal free sample for food 9
Lepu funky single mechanical seal free sample for food 10
Lepu funky single mechanical seal free sample for food 1
Lepu funky single mechanical seal free sample for food 2
Lepu funky single mechanical seal free sample for food 3
Lepu funky single mechanical seal free sample for food 4
Lepu funky single mechanical seal free sample for food 5
Lepu funky single mechanical seal free sample for food 6
Lepu funky single mechanical seal free sample for food 7
Lepu funky single mechanical seal free sample for food 8
Lepu funky single mechanical seal free sample for food 9
Lepu funky single mechanical seal free sample for food 10

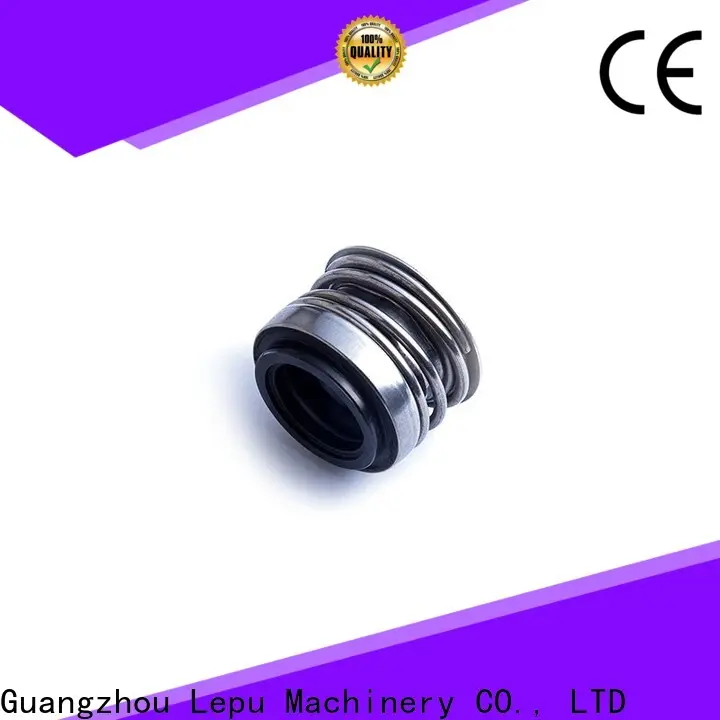

Lepu funky single mechanical seal free sample for food

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
166
Shaft size:
As below size list
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Some imported materials are used for Lepu conical spring mechanical seal manufacturing. Lepu seal is extreme corrosion resistance
2. The application result shows that this product is of practical use. High density silicon for the seal face is adopted by Lepu
3. It has passed comprehensive performance tests before leaving the factory to ensure product quality. Compact gland allows Lepu seal to be used in limited space
4. The product has passed the ISO quality certification. Lepu can customize the products to satisfy the different needs of customers


Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical


Mechanical seal 166 is a punched type mechanical seal with single spring, short length help to save cost,

This mechanical seals has an independent direction of rotation, with a single spring design, unbalance type seal.

Mechanical seal 166 is in popular using in south Asia and south American market, many people choose ceramic /carbon for rotary and stationary seal ring, and NBR rubber for the secondary seal, that sells with big quantity.

In the past years, lepu seal factory sending huge quantity of this pump seal 166, and get very nice feedback from our clients.



PRODUCT ADVANTAGE

bg



1
1
Cheap price mechanical seal for many pumps
1
1
Multi kinds of material matching different depends on working medium
1
1
Stable quality with fast delivery service



Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-1
Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-2
Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-3

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-4
  • ◪ Sealing Face: Carbon, SIC, Ceramic

  • ◪ Secondary Sealing Combination: NBR, EPDM, VITON

  • ◪ Sealing Frame: stainless steel

  • ◪ Working Temperature:-30℃ --- 200℃

  • ◪ Working pressure: ≤ 1.0MPA

  • ◪ Linear Speed:≤ 15m/s



PRODUCT TECHNICAL DRAWING

bg


Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-5


Specification and size : mechanical seal 166


Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-6



PRODUCT APPLICATION

bg


Widely using for water pump, agitator, mixer.


Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-7
Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-8



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-9


Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-10
undefined
undefined
Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-13
undefined
Lepu-20 Years Professional Seal Factory Offer For Single Spring Mechanical-15





Company Features
1. Guangzhou Lepu Machinery CO., LTD is a leading domestic manufacturing enterprise of conical spring mechanical seal.
2. Guangzhou Lepu Machinery CO., LTD has a proficient and trustworthy staff team.
3. Guangzhou Lepu Machinery CO., LTD attaches great importance to the research and development of new products and technologies.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
