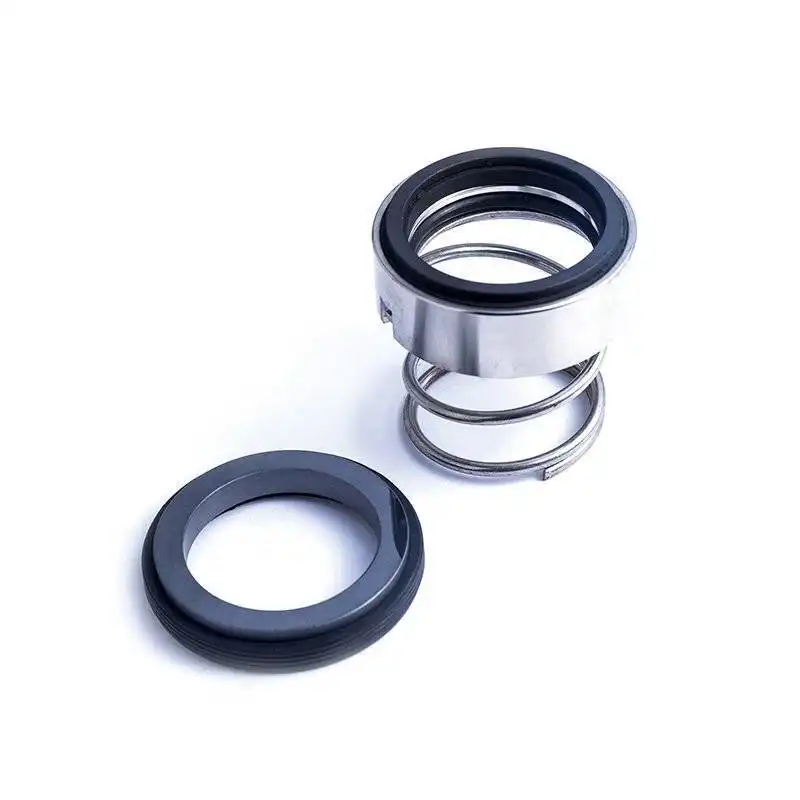

    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For


    This mechanical seal is a standard seal for plain shafts, this m3n mechanical seal designed with rotating conical spring, and it is a single and unbalance seal, and it is a dependent on direction of rotation seal type

    As a standard mechanical seal, burgmann m3n seal is widely used in many kinds of industry pumps, like water pumps, sewage pumps, submerged pumps, chemical pumps, and so on.



    PRODUCT ADVANTAGE

    bg



    1
    1
    100% same design as a replacement for burgmann m3n mechanical seal
    1
    1
    Different type material for seal face, matching clients running request
    1
    1
    Top quality stainless steel SS304 for seal frame and spring
    1
    1
    Left rotating or right rotating spring are all available in our factory



    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-1
    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-2
    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-3

    Advantage introduction:competitive price+ fast delivery+top after-sale service

    PRODUCT TECHNICAL SPECIFICATION

    bg


    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-4
    • ◪  Universal application opportunities

    • ◪  Insensitive to low solids content

    • ◪  No damage of the shaft by set screws

    • ◪  Large choice of materials

    • ◪  Short installation lengths possible (G16)

    • ◪  Short installation lengths possible (G16)



    PRODUCT TECHNICAL DRAWING

    bg


    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-5



    SHAFT SIZE LIST

    bg


    product-Conical spring burgmann mechanical seal M3N for water pump-Lepu Seal-img-1


    Working Range:

    Pressure: p1 = 10 bar (145 PSI)
    Temperature:
    t = -20 °C ... +140 °C (-4 °F ... +355 °F)
    Sliding velocity: vg = 15 m/s (50 ft/s)
    Axial movement: ±1.0 mm



    PRODUCT APPLICATION

    bg


    ◪  Chemical industry

    ◪  Pulp and paper industry

    ◪  Water and waste water technology

    ◪  Building services industry

    ◪  Food and beverage industry

    ◪  Sugar industry

    ◪  Low solids content media

    ◪  Water and sewage water pumps

    ◪  Submersible pumps

    ◪  Chemical standard pumps

    ◪  Eccentric screw pumps

    ◪  Cooling water pumps


    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-7
    Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-8



    DISPLAY DIAGRAM

    bg


    Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
