Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

high-quality burgmann mechanical seal pump free sample vacuum 1
high-quality burgmann mechanical seal pump free sample vacuum 2
high-quality burgmann mechanical seal pump free sample vacuum 3
high-quality burgmann mechanical seal pump free sample vacuum 4
high-quality burgmann mechanical seal pump free sample vacuum 5
high-quality burgmann mechanical seal pump free sample vacuum 6
high-quality burgmann mechanical seal pump free sample vacuum 7
high-quality burgmann mechanical seal pump free sample vacuum 8
high-quality burgmann mechanical seal pump free sample vacuum 9
high-quality burgmann mechanical seal pump free sample vacuum 10
high-quality burgmann mechanical seal pump free sample vacuum 1
high-quality burgmann mechanical seal pump free sample vacuum 2
high-quality burgmann mechanical seal pump free sample vacuum 3
high-quality burgmann mechanical seal pump free sample vacuum 4
high-quality burgmann mechanical seal pump free sample vacuum 5
high-quality burgmann mechanical seal pump free sample vacuum 6
high-quality burgmann mechanical seal pump free sample vacuum 7
high-quality burgmann mechanical seal pump free sample vacuum 8
high-quality burgmann mechanical seal pump free sample vacuum 9
high-quality burgmann mechanical seal pump free sample vacuum 10

high-quality burgmann mechanical seal pump free sample vacuum

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
301
Shaft size:
6-70mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Details
With a focus on quality, LEPU SEAL pays great attention to the details of Mechanical seal.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of Mechanical seal. It is of fine workmanship and good quality and is well sold in the domestic market.
  • high-quality burgmann mechanical seal pump free sample vacuum 11
Company Advantages
1. Lepu burgmann mechanical seal selection guide is manufactured with high-quality standards. It is tested in terms of leak resistance, lubrication, and chemical corrosion resistance to meet the requirements in the mechanical seal industry.
2. The industrial application result shows that burgmann mechanical seal can realize the characteristics of burgmann mechanical seal selection guide .
3. burgmann mechanical seal comes with such advantages as burgmann mechanical seal selection guide in comparison with other similar products.
4. Guangzhou Lepu Machinery CO., LTD has complete quality control system and good after-sales service.
5. Guangzhou Lepu Machinery CO., LTD's customer service has the ability to swallow the pride and accept blame or negative feedback.


Lepu-Factory Directly High Cost Performance Burgmann Mechanical

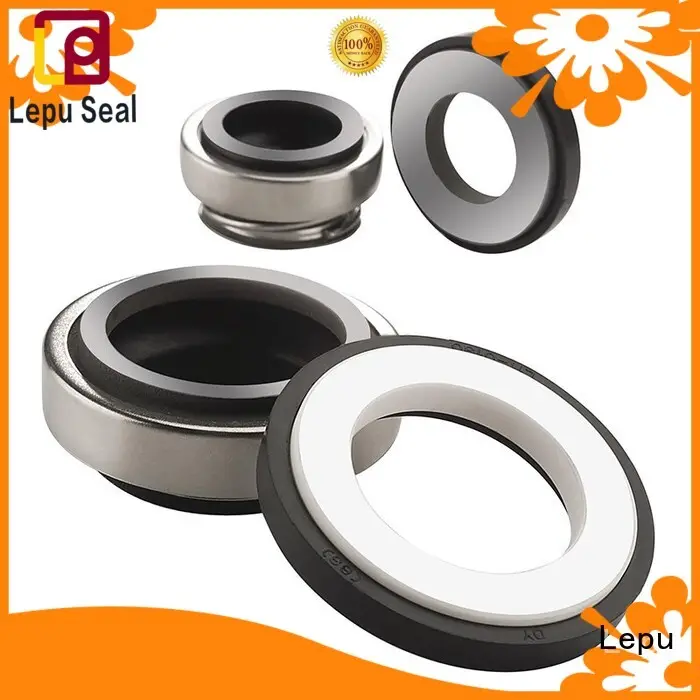

As a kind of high cost performance mechanical seal, Burgmann mechanical seal BT-AR 301 is widely used in water and waste water pumps, this seal designed with a rubber bellows, is a unbalance mechanical seal, single spring and Independent of direction of rotation.

The short axial length (this allows for more economic pump construction and saves material), and the best quality/price ratio

People like to use the ceramic for the seal ring because low cost, with very big quantity, even more than millions of units per year.



PRODUCT ADVANTAGE

bg



1
1
High cost performance mechanical seal in the market
1
1
Big factory fit for big quantity order
1
1
Can also be used as a multiple seal in tandem or back-to-back arrangement
1
1
Competitive price for TC material



Lepu-Factory Directly High Cost Performance Burgmann Mechanical-1
Lepu-Factory Directly High Cost Performance Burgmann Mechanical-2
Lepu-Factory Directly High Cost Performance Burgmann Mechanical-3
Lepu-Factory Directly High Cost Performance Burgmann Mechanical-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Factory Directly High Cost Performance Burgmann Mechanical-5
  • ◪  Rubber bellows mechanical seal

  • ◪  Unbalanced

  • ◪  Single spring

  • ◪  Independent of direction of rotation

  • ◪  Short axial installation length



PRODUCT TECHNICAL DRAWING

bg


Lepu-Factory Directly High Cost Performance Burgmann Mechanical-6



SHAFT SIZE LIST

bg


Lepu-Factory Directly High Cost Performance Burgmann Mechanical-7


Working Range:

Pressure: p1* = 6 bar (87 PSI),
vacuum … 0.5 bar (7.45 PSI) up to 1 bar (14.5 PSI) with seat locking
Temperature:
t* = -20 °C … +120 °C (-4 °F … +248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm



PRODUCT APPLICATION

bg


◪  Water and waste water technology

◪  Pool and spa applications

◪  Household appliances

◪  Domestic and garden pumps

◪  Whirlpool and swimming pool pumps

◪  Dishwasher pumps

◪  Submersible motors / pumps


Lepu-Factory Directly High Cost Performance Burgmann Mechanical-8
Lepu-Factory Directly High Cost Performance Burgmann Mechanical-9



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Factory Directly High Cost Performance Burgmann Mechanical-10


undefined
undefined
undefined
Lepu-Factory Directly High Cost Performance Burgmann Mechanical-14
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD is a company specializing in burgmann mechanical seal and related product development, design and production.
2. We are not the only one company to produce eagleburgmann seals , but we are the best one in term of quality.
3. In order to enhance our long-term competitiveness as a manufacturing company, we will continuously strive to simplify production activities and work harder to improve quality. We have laid down policies to support our sustainability work and guarantee high-quality production and safe working conditions across the value chain. Our customers are at the heart of everything we do. We design products that they need, and we listen carefully to their voices to understand their specific requirements.
