Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

high-quality burgmann mechanical seal cartex customization vacuum 1
high-quality burgmann mechanical seal cartex customization vacuum 2
high-quality burgmann mechanical seal cartex customization vacuum 3
high-quality burgmann mechanical seal cartex customization vacuum 4
high-quality burgmann mechanical seal cartex customization vacuum 5
high-quality burgmann mechanical seal cartex customization vacuum 6
high-quality burgmann mechanical seal cartex customization vacuum 7
high-quality burgmann mechanical seal cartex customization vacuum 1
high-quality burgmann mechanical seal cartex customization vacuum 2
high-quality burgmann mechanical seal cartex customization vacuum 3
high-quality burgmann mechanical seal cartex customization vacuum 4
high-quality burgmann mechanical seal cartex customization vacuum 5
high-quality burgmann mechanical seal cartex customization vacuum 6
high-quality burgmann mechanical seal cartex customization vacuum 7

high-quality burgmann mechanical seal cartex customization vacuum

Brand Name:
LEPU
Place of Origin:
GUANGDONG,CHINA
Model Number:
CARTEX CARTRIDGE SEAL
Shaft size:
20-100mm
Avaiable material:
chrone steel/carbon/siicon carbide/tungsten carbide/viton
Certification:
ISO, SGS, TUV
OEM/ODM Availability:
OEM/ODM AVAILABEL
Package:
carbon box with soft bubble plastic
Delivery Time:
5-30days
Start Port:
guangzhou
Supply Ability:
1000 set/month
MOQ:
1set
Payment Terms:
T/T, LC,WESTERN UNION, ALIPAY
Inquiry
Product Comparison
Bellows Seal, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.Compared with products in the same category, LEPU SEAL's Bellows Seal has the following outstanding features.
  • high-quality burgmann mechanical seal cartex customization vacuum 8
    high-quality burgmann mechanical seal cartex customization vacuum 9
Company Advantages
1. There are many factors being considered while designing Lepu burgmann m7n seal . They are the selection of materials, modes of loading, safety factors, allowable stresses, etc.
2. This product has excellent performance, durability and usability.
3. The quality of the product has been improved thanks to the enforcement of a strict quality management system.
4. The level of burgmann mechanical seal quality of Guangzhou Lepu Machinery CO., LTD has always been in the forefront of the country.
5. Popularity, good reputation, orientation are three evaluation index norms of Lepu Machinery image.



Burgmann cartex single cartridge seal is a world famous  cartridge mechanical seal, this seals is popular  used for pumps, agitator, mixer, and other rotating machines.

cartex signle cartridge seal is a standard mechanical seal, compared to the modular design with many complex parts, Cartex has been specifically engineered with a simple, robust design to achieve higher overall reliability and performance in extreme conditions.

 eagleburgmann cartex seal is a single seal and balanced seal type, and independent of direction of rotation, this cartex design have below advantage:

A simple, robust engineered design

Larger springs

More stable, robust for lower internal stresses

Larger cross section seal faces for low distortion and low drive stresses

Minimizes leakage

Larger/stronger pins

Provides distortion free torque transmission to sealing faces

Fewer o-rings and components

Reduced possible leakage paths

High performance pumping feature

Lower operating temperatures

lepu seal is a professional manufacturer for mechanical seal since 1998, now it is one leading seal supplier in china.

in the past 20years, lepu seal have top reputation in local and overseal market, provide many kinds of mechanical for our clients.



PRODUCT ADVANTAGE

bg



1
1
simple cartridge design
1
1
100% same with original burgmann cartex design
1
1
Provides distortion free torque transmission to sealing faces
1
1
Reduced possible leakage paths
1
1
Accept small order, only need 1pcs quantity.




Lepu-Find Eagle Burgmann Mechanical Seals For Pumps Top Quality Eagleburgmann


Lepu-Find Eagle Burgmann Mechanical Seals For Pumps Top Quality Eagleburgmann-1





Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Find Eagle Burgmann Mechanical Seals For Pumps Top Quality Eagleburgmann-2
  • ◪ Standard or Nonstandard: Standard

  • ◪ Model Number: Burgmann cartex single seal

  • ◪ Sealing Face: Carbon, SSIC, Tungsten carbide

  • ◪ Secondary Sealing Combination:NBR, EPDM, VITON

  • ◪ Sealing Frame:stainless steel SS316 OR SS304

  • ◪ Working Temperature:-40 - 200 °C, depnes on material

  • ◪ Working pressure: ≤ 25MPA

  • ◪ Axial movement:±1.0 mm

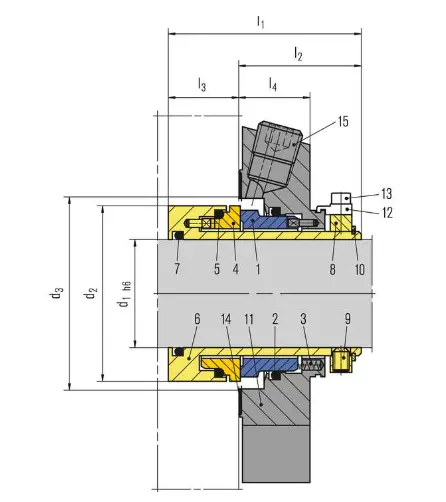

CARTEX DATA AND DRAWING:

Lepu-Find Eagle Burgmann Mechanical Seals For Pumps Top Quality Eagleburgmann-3

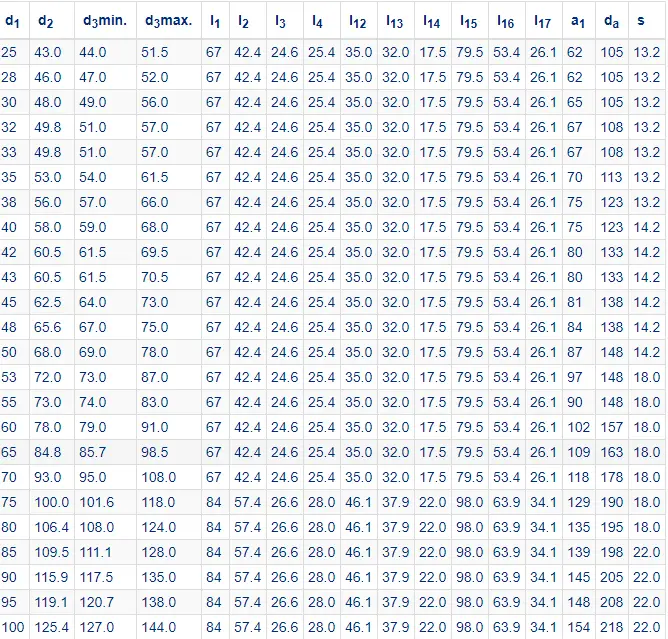

CARTEX SEAL DIMENSTION LIST

Lepu-Find Eagle Burgmann Mechanical Seals For Pumps Top Quality Eagleburgmann-4



PRODUCT APPLICATION

bg


◪ perfect cartridge mechanical seal for many type pumps, agitator, mixers.

◪ a perfect replacement of original EAGLEBURGMANN CARTEX SINGLE mechanical seal.









DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Mechanical Seal Standard Chesterton Single Cartridge Mechanical Seal-8


undefined
undefined
undefined
undefined
undefined

undefined





Company Features
1. Strong capacity and quality assurance make Guangzhou Lepu Machinery CO., LTD a leader in burgmann mechanical seal .
2. The factory is characterized by its advantageous geographic position where embraces many industrial clusters. Under the increased access to information or raw materials that accompany cluster manufacturing, we are able to significantly increase our productivity.
3. We should abide by the tenet of eagle burgmann mechanical seals for pumps. Ask! Guangzhou Lepu Machinery CO., LTD invests heavily in basic research, concentrating on technological breakthroughs that drive the world forward. Ask! Ingenious talents are indispensable for Lepu to keep advanced in this industry. Ask! Looking into the future, Guangzhou Lepu Machinery CO., LTD will continue to uphold the philosophy of burgmann m7n seal . Ask!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
