Lepu Seal Custom Burgmann Mechanical Seal Wholesale ODM high pressure

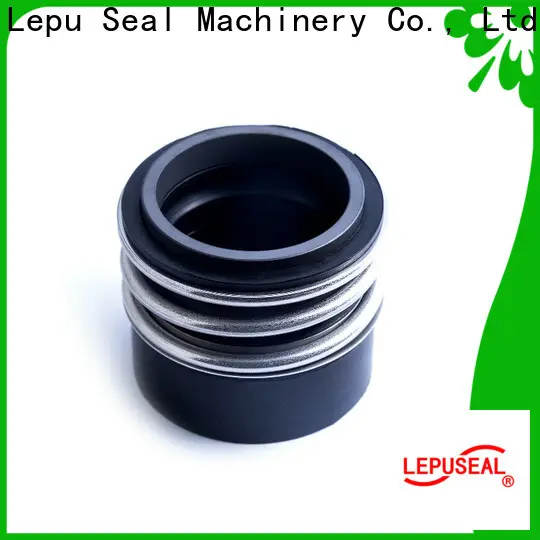

MG12 big brand extended bellow tail mechanical seal

The Mg12 Mechanical Seal is an advanced sealing solution designed for a variety of industrial applications where reliable performance and durability are paramount. Engineered with high-quality materials, the Mg12 Mechanical Seal effectively prevents fluid leakage in pumps and other rotating equipment, making it ideal for use in chemical processing, wastewater treatment, and food production industries. Its innovative design features a precision-engineered ceramic face that resists wear while providing an exceptional seal under extreme pressures and temperatures. Additionally, the Mg12 Mechanical Seal incorporates unique elastomeric components that enhance flexibility and adaptability to a range of operating conditions. With its robust construction and proven reliability, the Mg12 Mechanical Seal offers peace of mind to operators looking to minimize downtime due to leaks or maintenance issues while maximizing efficiency in their operations. Whether you're dealing with corrosive substances or demanding pressure levels, choosing the right mechanical seal like the Mg12 can significantly impact your system's overall performance and longevity.

Feature:

1.LP12(MG12) Mechanical seals of the MG series are amongst the most commonly used.
2.The bellows is not subjected to any torsional stress and its ingenious design incorporates several functions, as seal face carrier, secondary sealing element and drive collar.

3.The seal face is driven through the spring and " L "- rings.
4.There are no bonded joints and all the face materials are inter-changeble without having to modify any dimensions.
5. Highly recommended for duties with media containing solids eg. in waste water and sewage applications.

Materials:

1.Stationary Ring: Ceramic/Sic/TC
2.Rotary Ring : Carbon/Sic/TC
3.Secondary Seal: NBR/EPDM/Viton
4.Spring and Metal Part: Stainless Steel

Advantages:

1.The protection of MG12 mechanical seal face during installation due to special bellows design as single seal or single spring.

2.Another adventage of MG12 burgmann mechanical seal is dimension adaptions and additional seats available Universal application opportunities.

3.This also can provide important material certifications available.

1. Using long life

2. Friction resistance

3. Easy to install and easy to use

Advantage introduction:competitive price+ fast delivery+top after-sale service

◪ Maximum Pressure:1.2Mpa

◪ Model Number: LP-MG12

◪ Material: sic/sic/viton sus304

◪ Liner speed:10m/s

◪ Maximum Temperature: -20℃-120℃

◪ Sealing Frame:stainless  steel

◪Size: 10-100mm

◪ Lepu seal is one best manufacturer for mechanical seal, with low price and top quality.

◪Lepu seal can offer grundfos and other mechanical seal.

◪Centrifugal pumps made by Durco, Goulds, and many others

◪Conveyers

lepuseal is one of the leading mechanical seal manufacturer in china, and maybe the best cartridge mechanical seal manufacturer in south of China.

We focus on manufacturing mechanical seal and seal spare parts in the past 20 years.

We can OEM. We have many styles

We offer below service:

1. OEM/ODM serivce

2. Free sample mechanical seal

3. Customized mechanical seal production.

4. Quality guarantee.

5. Technology support and training service for mechanical seal.

6. Mechanical seal trouble shoot service
