Wholesale cr grundfos pump seal kit bellow Lepu Brand

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-A
Shaft size:
12,16mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
10000 set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Lepu mechanical seals create excellent quality. grundfos pump seal kit mechanical seal grundfos pump offered by Lepu Machinery are used for grundfos mechanical shaft seals.
2. The fame of Lepu is widely increasing for its high quality grundfos mechanical seal.
3. The grundfos pump seal is typically integrated with top kit shaft seal grundfos, such as mechanical seal pompa grundfos. Lepu seals are 100% same as the original design.
4. More innovative ideas to produce better mechanical seals. With the raw material and latest technology, our grundfos pump mechanical seal,Grundfos Mechanical Seal Suppliers is worth your recommendation.


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a For Multistage


Rubber Bellow Grundfos Mechanical Seal GRF-A is a replacement seal, working for grundfos Multistage Centrifugal Pumps. As a professional mechanical seal manufacturer, lepu seal factory 100% follow original grundfos design for this mechanical seal, and make sure perfect fit for grundfos CR / CRI / CRN Series Vertical Multistage Centrifugal Pumps.

This Grundfos Mechanical Seal with rubber bellows design, offering perfect seal ability for the pump. The rotary and stationary seal face can choose carbon or silicon as material, and use epdm or viton as rubber seal part.

If you donot know what size for what grundfos pump, please check the below data or contact us our sales, and get professional suggestion.



PRODUCT ADVANTAGE

bg



1
1
Top quality material for the frame and bellows
1
1
Long and short tail(foot) are all available
1
1
Competitive price with fast delivery for this seal
1
1
100% replacement for grundfos seal



Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a For Multistage-1
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a For Multistage-2

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


  • ◪ Temperature:-30℃ to 200℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel

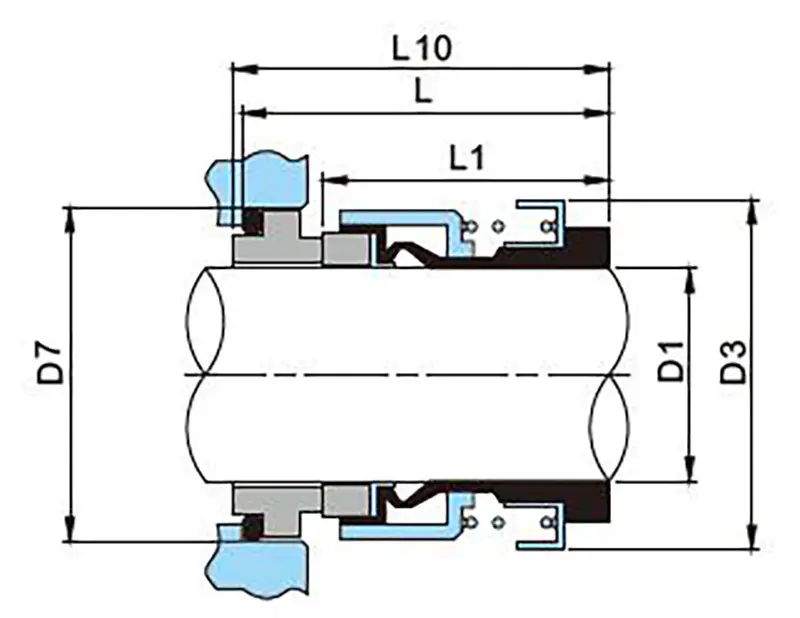

PRODUCT TECHNICAL DRAWING

bg


GRF-A rubber bellow seal


Specification and size

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a For Multistage-3

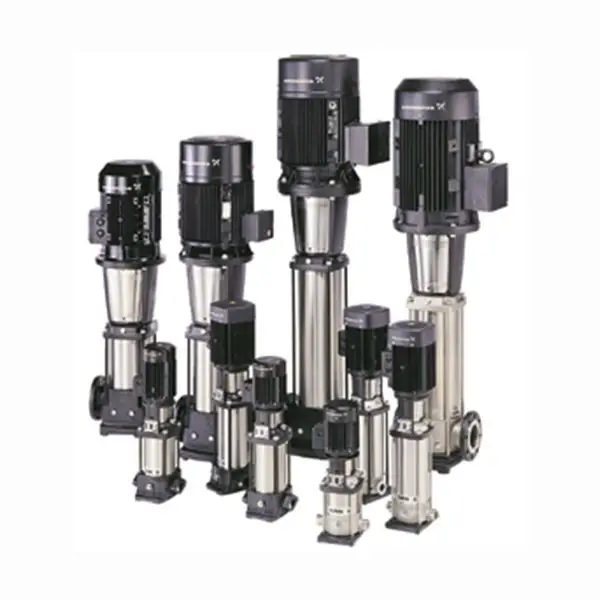

PRODUCT APPLICATION

bg


◪  12mm shaft seal:

◪  Part number should be 405096, 405347, 405347TC

◪  Fit for Pump Models CR2, CRN2 (S), CR4, CRN4 (S), CR8,

◪  16mm shaft seal, part number is 425763, 425672, 425672TC.

◪  Fit for Pump Models CR8, CRN 8 (S), CR16, CRN16 (S)

◪  Also working for  grundfos CH, CHI ,CHE pump.




DISPLAY DIAGRAM

bg

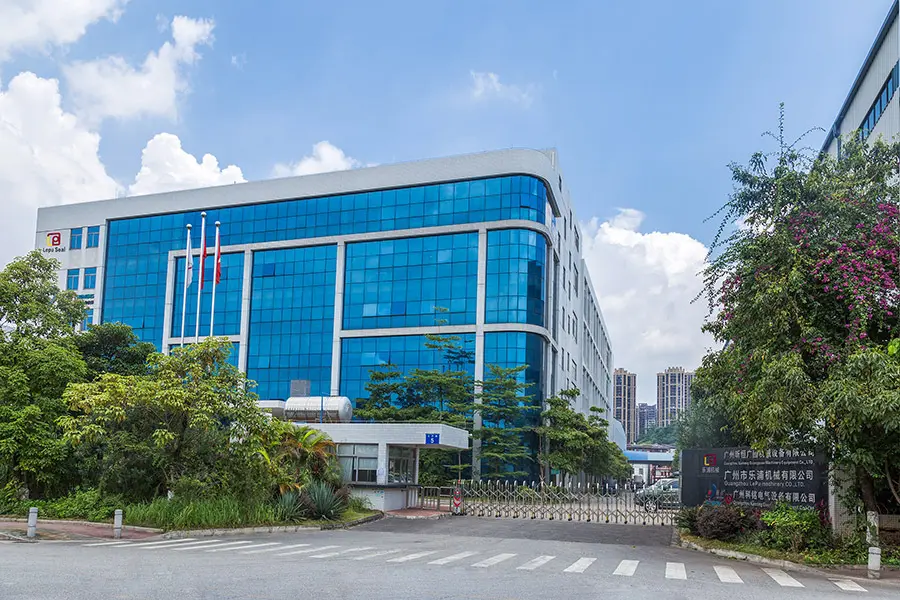

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.



Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a For Multistage-4
undefined
undefined
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a For Multistage-7
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD has evolved and expanded the business in grundfos mechanical seal field for many years. - All Work And No Play Makes Jack A Dull Boy. Lepu Is One Of The Leading grundfos pump seal, grundfos pump seal kit, mechanical seal grundfos pump Designers, Manufacturers And Exporter From China Get Info!
2. The technical level for grundfos pump mechanical seal comes up to the advanced level in China.
3. It is of highly advanced technology that our grundfos seal kit has got more and more attention among customers. - Guangzhou Lepu Machinery CO., LTD always sticks to the core business philosophy. Please contact.
