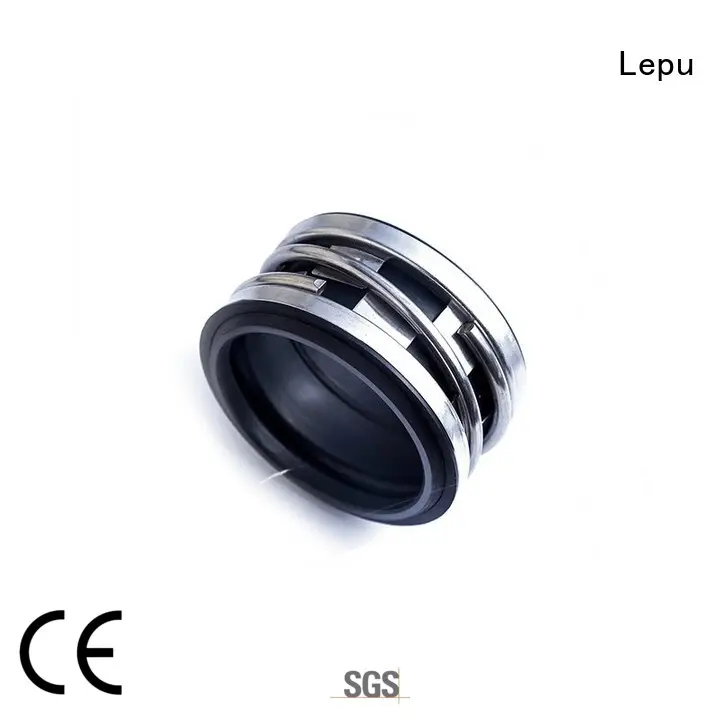

solid mesh john crane mechanical seal pump OEM for pulp making

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
TYPE 2100/2102/2103
Shaft size:
10-100mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Comparison
Under the guidance of market, LEPU SEAL constantly strives for innovation. Burgmann Mechanical Seal has reliable quality, stable performance, good design, and great practicality.Compared with products in the same category, Burgmann Mechanical Seal has the following advantages.
  • solid mesh john crane mechanical seal pump OEM for pulp making 11
    v s
    solid mesh john crane mechanical seal pump OEM for pulp making 12
Company Advantages
1. The quality of Lepu John Crane Mechanical Seal Type 21 has been tested. It is verified in terms of its design, construction, installation, commissioning, operation, adjustment, maintenance and cleaning.
2. The quality of the product meets the latest industry standards.
3. The product, widely recognized in the industry for offering great economic benefits, is believed to be more applied in the future market.


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102


Compact, unitized, single-spring elastomer bellows seal, that is what we calling John crane mechanical seal 2100/2102/2103, offers maximum durability and performance in many demanding applications.

There are 3 kinds of tail for john crane mechanical seal type 2100, the normal size tail is we call 2100, and middle longer tail is 2102, the longest tail mechanical seal is 2103, please choose the right size base when buying this 2100 john crane seal.

Lepu seal is a leading manufacturer of the john crane mechanical seal type 2, providing promised quality stamping seals to hundreds of clients.



PRODUCT ADVANTAGE

bg



1
1
Top quality stainless steel for the frame and spring
1
1
100% follow original john crane seal design
1
1
Strong ability fit for mass order quanity
1
1
Top quality rubber parts



Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-1
Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-2
Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-3
Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-5
  • ◪ Sealing Face: Carbon, SIC, TC, Ceramic

  • ◪ Secondary Sealing Combination: NBR, EPDM, VITON

  • ◪ Sealing Frame: stainless steel

  • ◪ Working Temperature:-20℃ --- 120℃

  • ◪ Working pressure: ≤ 1.4MPA

  • ◪ Linear Speed:≤ 15m/s

  • ◪ Technical drawing


Product feature

◪  Innovative bellows design is pressure-supported and will not crease or fold under high pressure.

◪  Non-clogging, single-coil spring keeps seal faces closed and properly tracking during all phases of operation.

◪  Positive drive through interlocking tangs will not slip or break free during upset conditions.

◪  Available in the widest array of material options, including high performance silicon carbides.



PRODUCT TECHNICAL DRAWING

bg


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-6


Specification and size :


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-7



PRODUCT APPLICATION

bg


Pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-8


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-9
Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-10



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-11


Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-12
undefined
undefined
Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-15
undefined
Lepu-High Quality Heavy Duty John Crane Mechanical Seal 2100 2102-17





Company Features
1. Guangzhou Lepu Machinery CO., LTD is a company which is the joint of trade and industry. We are specialized in the research, development, and production of John Crane Mechanical Seal Type 21 .
2. Together with advanced facilities, Guangzhou Lepu Machinery CO., LTD has established a sound quality control system and equipped with
3. Sustainability operates around the clock, all over the site in our company. For example, a variety of policies, such as the provision of special buses or the encouragement of cycling, are in place at our different facilities to cut the number of car journeys into work each day. We take our responsibility to the Earth seriously and are committed to sustainable business practices. Our performance in meeting our environmental goals—related to energy efficiency, greenhouse gas (GHG) emissions, water intake, and waste to landfills demonstrates our commitment to reducing our environmental footprint. We responsibly and sustainably manage our products. We aim to reduce resource use, degradation, and pollution along the whole life cycle of our products. We assume social responsibility in our business activities. We encourage employees to participate in different initiatives to solve key social and environmental issues. Inquire!
