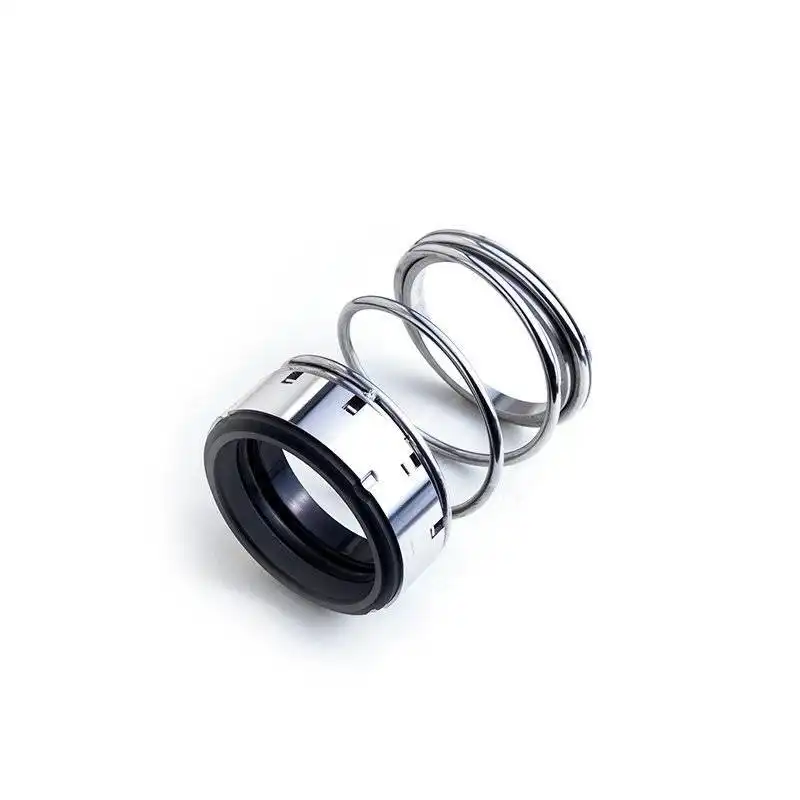

Mechanical seal type1 from china pump seal supplier 1

Mechanical seal type1 from china pump seal supplier 2

Mechanical seal type1 from china pump seal supplier 3

Mechanical seal type1 from china pump seal supplier 4

Mechanical seal type1 from china pump seal supplier

Brand Name:

Lepu

Place of Origin:

Guangzhou, China

Model Number:

TYPE 1

Shaft size:

12-75mm

Avaiable material:

CARBON/SIC/TC/EPDM/VITON, SS304 or SS316

Certification:

SGS,ISO,CE/UL/SGS/…

OEM/ODM Availability:

Yes

Package:

Carton box

Delivery Time:

15-20 day

Supply Ability:

100000 set/MONTH

MOQ:

1 set

Payment Terms:

L/C, T/T, Western Union, MoneyGram

Inquiry

Write a Review

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal

Type 1 is a full Convolution Industrial-duty seal, with elastomer Bellows design, Suitable for a wide range of service conditions ranging from water and steam to chemicals and corrosive materials.

The Type 1 elastomer bellows seal is widely recognized as the industry's workhorse., the Type 1 mechanical seal is ideal for use in pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment.
It is normally used by the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing and power generation industries.

The mechanical seal type 1 is a punched light pump seal, so cost is cheap, so very popular used in many kinds of industry equipment, that type 1 seal is also a featured seal item in our factory, we do offer high quality with very nice price for our professional mechanical seal clients in the past years.

PRODUCT ADVANTAGE

Top quality stainless steel for the frame and spring

Different type material match depends on client’s request

Our factory Competitive price with fast delivery for this seal

100% replacement for original seal design

Strong ability To absorb both breakout and running torque

Low drive torque improves performance and reliability

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-1

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-2

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-3

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

click here to get free seal sample！

PRODUCT TECHNICAL SPECIFICATION

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-5

◪ Model Number: TYPE 1
◪ Sealing Face: Carbon, SIC, TC, Ceramic
◪ Secondary Sealing Combination: NBR, EPDM, VITON
◪ Sealing Frame: stainless steel
◪ Working Temperature:-20℃ --- 120℃
◪ Linear Speed:≤ 15m/s
◪ Technical drawing

Product feature

◪ UNBALANCED

◪ SINGLE SPRING

◪ BI-DIRECTIONAL

◪ ELASTOMER BELLOWS

◪ SET SCREW LOCK COLLARS AVAILABLE

PRODUCT TECHNICAL DRAWING

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-6

Specification and size :

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-7

PRODUCT APPLICATION

Pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-9

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-10

DISPLAY DIAGRAM

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-11

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-12

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-15

Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-17
