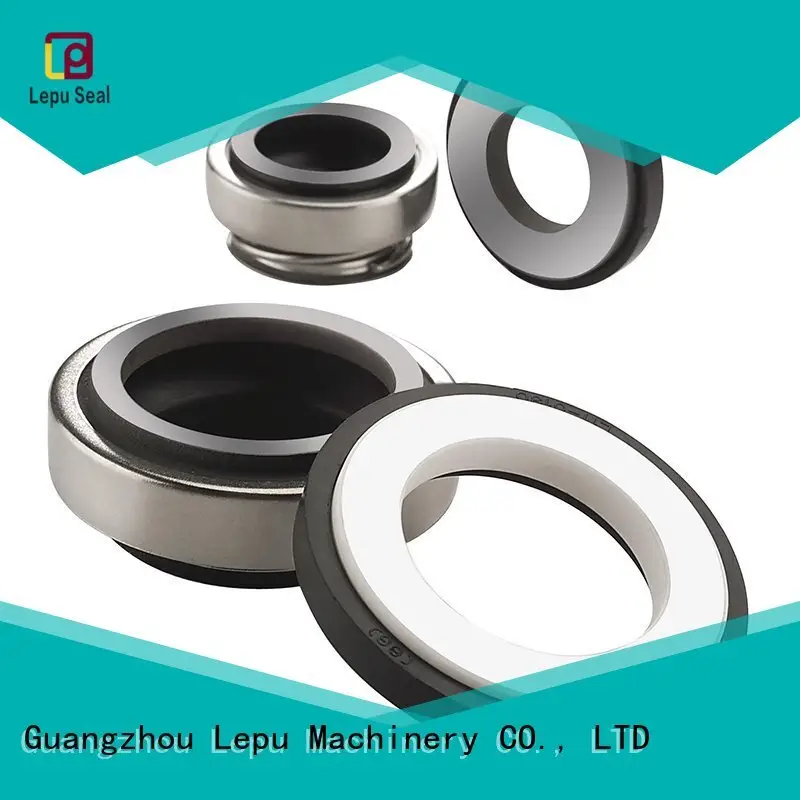

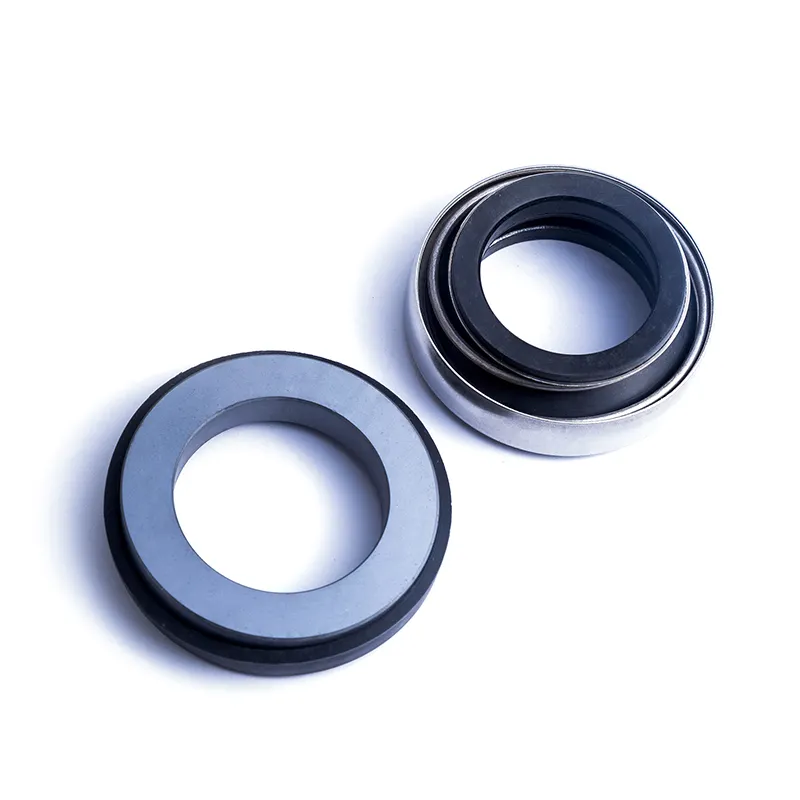

rubber bellow mechanical seal seal multi performance Lepu Brand company

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
301
Shaft size:
6-70mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Focus on mechanical seals for 20 years. As one of the unique feature, rubber bellow mechanical seal successfully makes bellow type mechanical seal more popular among customers. Focus on mechanical seals for 20 years
2. Guangzhou Lepu Machinery CO., LTD, well-known for its superior quality, will provide first-class service. Higher-quality mechanical seals ensure high efficiency
3. Lepu mechanical seals create excellent quality, Lepu Designs And Offers Quality bellow seal, rubber bellows seal Of Various Styles.


Lepu-Factory Directly High Cost Performance Burgmann Mechanical Seal Bt-ar 301


As a kind of high cost performance mechanical seal, Burgmann mechanical seal BT-AR 301 is widely used in water and waste water pumps, this seal designed with a rubber bellows, is a unbalance mechanical seal, single spring and Independent of direction of rotation.

The short axial length (this allows for more economic pump construction and saves material), and the best quality/price ratio

People like to use the ceramic for the seal ring because low cost, with very big quantity, even more than millions of units per year.



PRODUCT ADVANTAGE

bg



1
1
High cost performance mechanical seal in the market
1
1
Big factory fit for big quantity order
1
1
Can also be used as a multiple seal in tandem or back-to-back arrangement
1
1
Competitive price for TC material

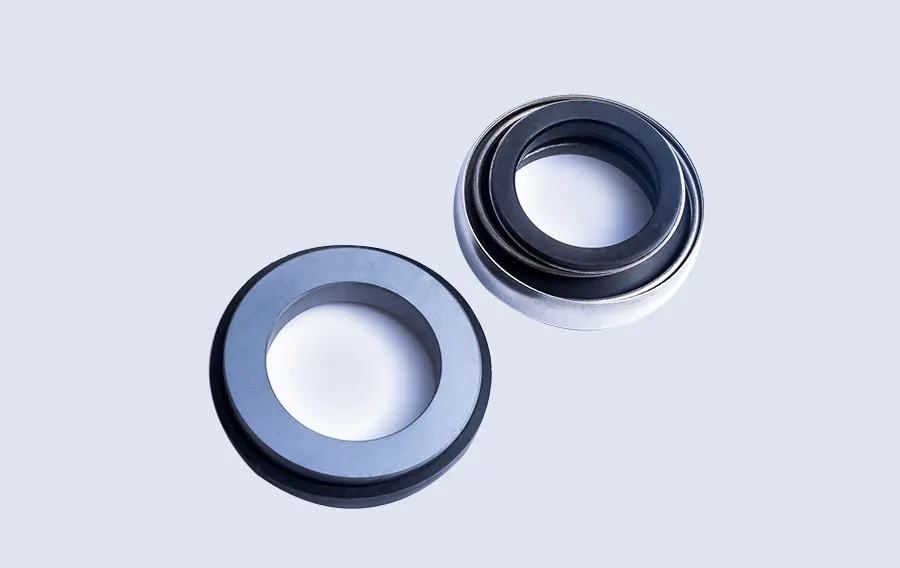

Lepu-Factory Directly High Cost Performance Burgmann Mechanical Seal Bt-ar 301-1

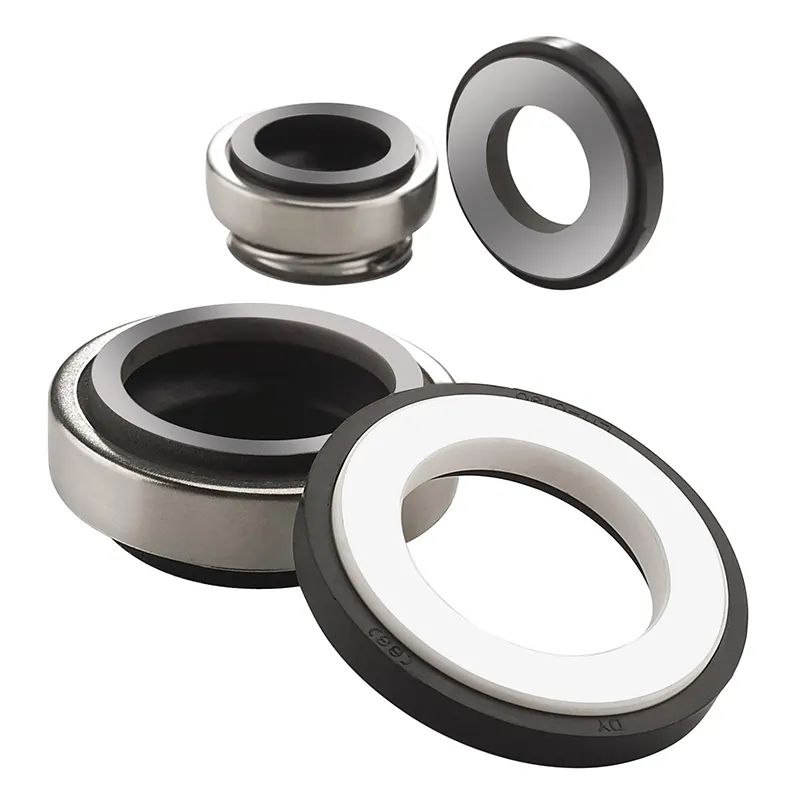

Lepu-Factory Directly High Cost Performance Burgmann Mechanical Seal Bt-ar 301-2

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


  • ◪  Rubber bellows mechanical seal

  • ◪  Unbalanced

  • ◪  Single spring

  • ◪  Independent of direction of rotation

  • ◪  Short axial installation length

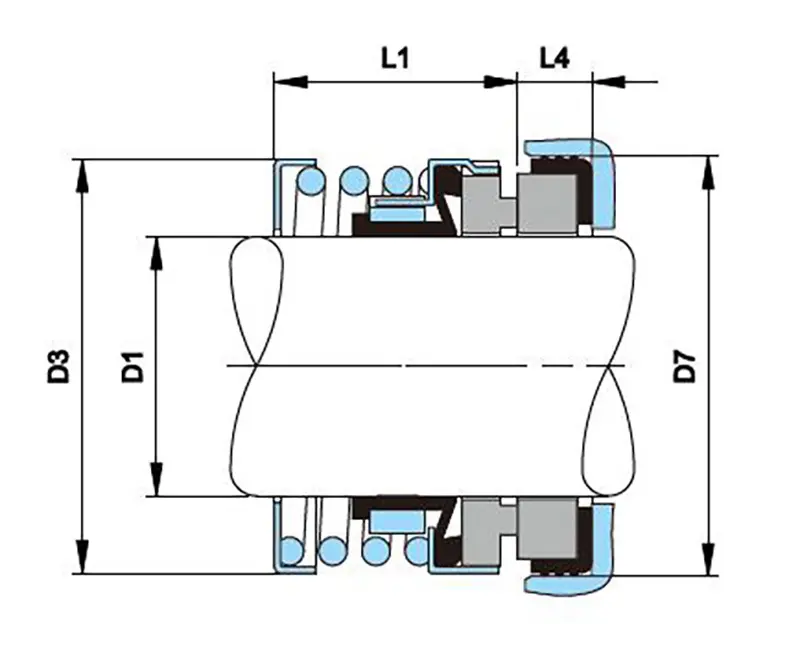

PRODUCT TECHNICAL DRAWING

bg




SHAFT SIZE LIST

bg


Lepu-Factory Directly High Cost Performance Burgmann Mechanical Seal Bt-ar 301-3


Working Range:

Pressure: p1* = 6 bar (87 PSI),
vacuum … 0.5 bar (7.45 PSI) up to 1 bar (14.5 PSI) with seat locking
Temperature:
t* = -20 °C … +120 °C (-4 °F … +248 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm



PRODUCT APPLICATION

bg


◪  Water and waste water technology

◪  Pool and spa applications

◪  Household appliances

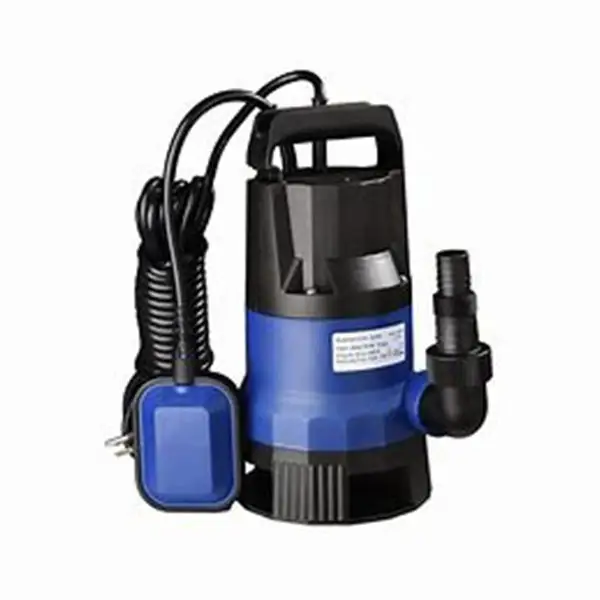

◪  Domestic and garden pumps

◪  Whirlpool and swimming pool pumps

◪  Dishwasher pumps

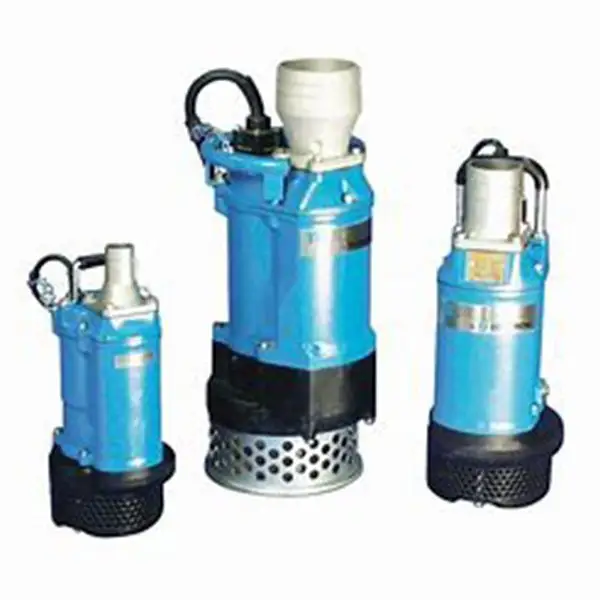

◪  Submersible motors / pumps




DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.

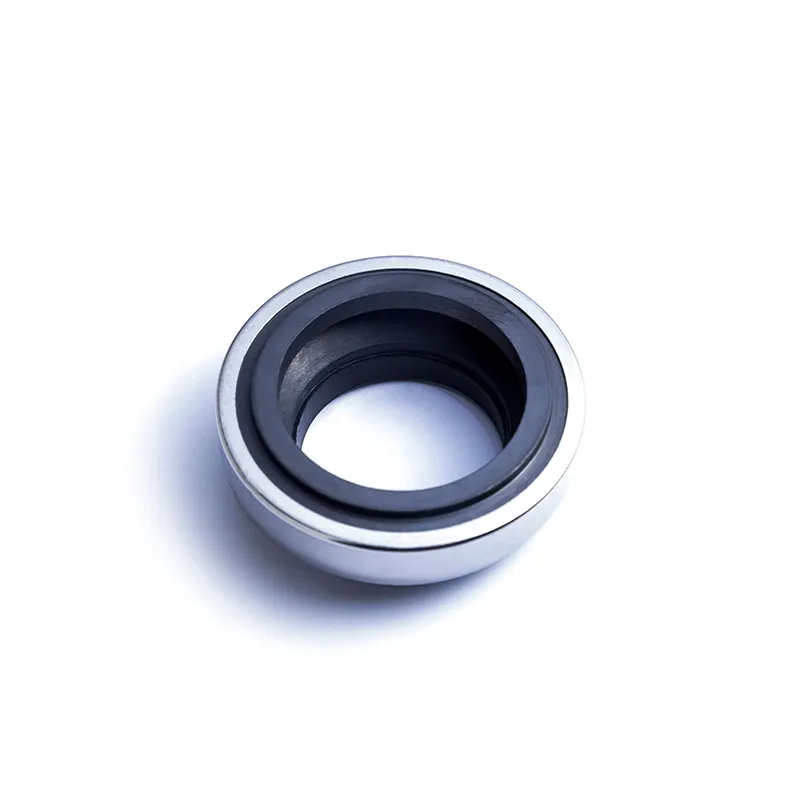

Lepu-Factory Directly High Cost Performance Burgmann Mechanical Seal Bt-ar 301-4


undefined
undefined
undefined

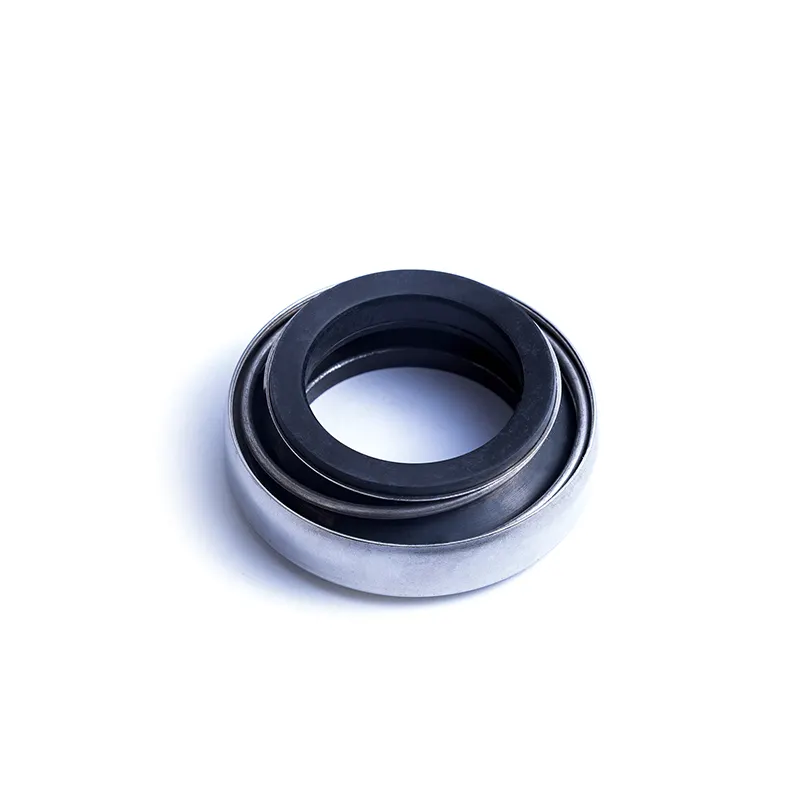

Lepu-Factory Directly High Cost Performance Burgmann Mechanical Seal Bt-ar 301-8
undefined
undefined





Company Features
1. There is strict testing for quality of bellow seal to make satisfying products for customers.
2. Our metal bellow seals have been well sold to all over the world known as its rubber bellow mechanical seal. Call!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
