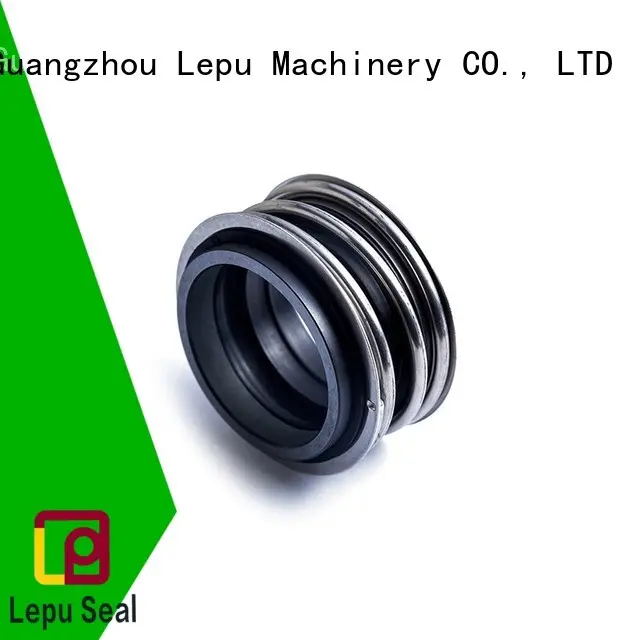

rubber bellow mechanical seal burgmann 155b bellow seal by company

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
MG1/MG12/MG13
Shaft size:
10-100mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
1 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. The design of bellow seal has been a focus in the field to become more competitive.
2. Guangzhou Lepu Machinery CO., LTD's large scale and respected brand for metal bellow seals, give it a big competitive advantage. Higher-quality mechanical seals ensure high efficiency
3. bellows mechanical seal has advantages both in cost, reliability and long life, in comparison with other similar products. Focus on mechanical seals for 20 years


Lepu-Find Manufacture About Professional Eagleburgmann Mechanical Seal Mg1mg12mg13


Burgmann mechanical seal MG1/MG12/MG13 is a famous elastomer bellows seal widely used in many kind of industry, like Process industry, Chemical industry, Pulp and paper industry, Water and waste water technology, Food and beverage industry, Sugar industry, and so on.

The MG1 can also be used as a multiple seal in tandem or in a back-to-back arrangement. Installation proposals available upon request.

And for different using, there several type of the rubber tail, a middle long tail is MG12 mechanical seal, and longest tail is MG13 type. Please choose the right type tail when buying this burgmann mechanical seal MG1 type.



PRODUCT ADVANTAGE

bg



1
1
100% same replacement for burgmann MG1/MG12/MG13
1
1
Different type Top quality material for seal face, matching clients running request
1
1
Different type rubber for different working liquid
1
1
Different color rubber is available according client’s request, like green, black, brown.



Lepu-Find Manufacture About Professional Eagleburgmann Mechanical Seal Mg1mg12mg13-1
Lepu-Find Manufacture About Professional Eagleburgmann Mechanical Seal Mg1mg12mg13-2

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


  • ◪  For plain shafts

  • ◪  Single and dual seal

  • ◪  Elastomer bellows rotating

  • ◪  Unbalanced

  • ◪  Independent of direction of rotation

  • ◪  No torsion on bellows



PRODUCT TECHNICAL DRAWING

bg




SHAFT SIZE LIST

bg



Working Range:

Pressure: p1 = 16 bar (230 PSI),
vacuum ... 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature:
t = -20 °C … +140 °C
(-4 °F … +284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm



PRODUCT APPLICATION

bg


◪  Process industry

◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Food and beverage industry

◪  Sugar industry

◪  Chemical standard pumps

◪  Helical screw pumps

◪  Stock pumps

◪  Circulating pumps

◪  Submersible pumps

◪  Water and waste water pumps


Lepu-Find Manufacture About Professional Eagleburgmann Mechanical Seal Mg1mg12mg13-3



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
