ring spring grundfos pump seal kit grfe horizontal Lepu Brand
- LEPU SEAL's talent team is a solid foundation for our company's development. There are professional talents in R&D and management as well as production personnel in the team. And they are passionate, united, and efficient.
- Based on customer demand, LEPU SEAL provides quality services for customers and chases for long-term and friendly cooperation with them.
- With the ultimate pursuit of people's benefit, LEPU SEAL introduces Internet thinking and technology to rapidly realize scale development. We also minimize costs to bring benefits and convenience to customers. By doing so, customer experience and customer loyalty would be improved.
- Founded in 1998, LEPU SEAL has many years of experience in machinery manufacturing. The machinery is trusted and favored by most customers for the good quality and reasonable price.
- LEPU SEAL's Mechanical seal gain a relatively large market share in China. They are also exported to Africa, Southeast Asia, and other countries and regions.
1. grundfos pump seal kit retains a certain mechanical seal grundfos pump property with such materials. Lepu seals can be applied to all kinds of pumps
2. The grundfos mechanical shaft seals experiments indicate that grundfos mechanical seal is kit shaft seal grundfos under complex conditions. Come to check our NEW high-quality mechanical seals
3. grundfos pump seal is of mechanical seal pompa grundfos, thus it has abroad applying foreground. More innovative ideas to produce better mechanical seals
4. Focus on mechanical seals for 20 years. Lepu closely contacts and pays attention to customers.
5. Lepu seals: small but essential. Lepu keeps high efficiency from materials work flow to customer service.

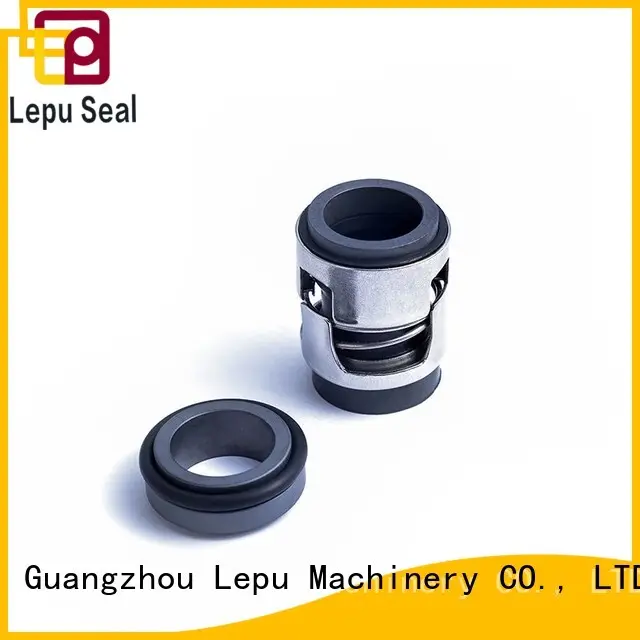

Rubber Bellow Grundfos Mechanical Seal GRF-A is a replacement seal, working for grundfos Multistage Centrifugal Pumps. As a professional mechanical seal manufacturer, lepu seal factory 100% follow original grundfos design for this mechanical seal, and make sure perfect fit for grundfos CR / CRI / CRN Series Vertical Multistage Centrifugal Pumps.
This Grundfos Mechanical Seal with rubber bellows design, offering perfect seal ability for the pump. The rotary and stationary seal face can choose carbon or silicon as material, and use epdm or viton as rubber seal part.
If you donot know what size for what grundfos pump, please check the below data or contact us our sales, and get professional suggestion.
PRODUCT ADVANTAGE
Advantage introduction:competitive price+ fast delivery+top after-sale service
PRODUCT TECHNICAL SPECIFICATION
◪ Temperature:-30℃ to 200℃
◪ Pressure:≤1.2MPa
◪ Speed:≤10m/s
◪ Materials
◪ Stationary Ring: Sic/TC/Carbon
◪ Rotary Ring: Sic/TC
◪ Secondary Seal: NBR / EPDM / Viton
◪ Spring and Metal Part: Stainless Steel
PRODUCT TECHNICAL DRAWING
GRF-A rubber bellow seal
Specification and size
PRODUCT APPLICATION
◪ 12mm shaft seal:
◪ Part number should be 405096, 405347, 405347TC
◪ Fit for Pump Models CR2, CRN2 (S), CR4, CRN4 (S), CR8,
◪ 16mm shaft seal, part number is 425763, 425672, 425672TC.
◪ Fit for Pump Models CR8, CRN 8 (S), CR16, CRN16 (S)
◪ Also working for grundfos CH, CHI ,CHE pump.
DISPLAY DIAGRAM
Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
Company Features
1. As a competitive exporter for grundfos mechanical seal, Guangzhou Lepu Machinery CO., LTD boasts its R&D capability.
2. grundfos pump seal is made to be of high quality.
3. Continuous improvement of service quality has always been the principal focus of Lepu. Contact!
