Lepu solid mesh o ring seal OEM for water

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
M3N
Shaft size:
6-80mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
1 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Application Scope
Bellows Seal developed and produced by our company can be widely used in various industries and professional fields.LEPU SEAL insists on providing customers with one-stop and complete solution from the customer's perspective.
  • Lepu solid mesh o ring seal OEM for water 11
Enterprise Strength
  • LEPU SEAL believes credibility has a huge impact on the development. Based on customer demand, we provide excellent services for consumers with our best team resources.
Company Advantages
1. The quality of Lepu viton temperature range is guaranteed. It undergoes a field site test to check its sunlight absorptivity, energy storage as well as its energy utilization.
2. The product has precise accuracy and dimension. It is fabricated under CNC machines which guarantees its precise measurement.
3. Guangzhou Lepu Machinery CO., LTD will improve responsiveness to meet the changing needs of different global customers.
4. It drives sales and has very substantial economic benefits.

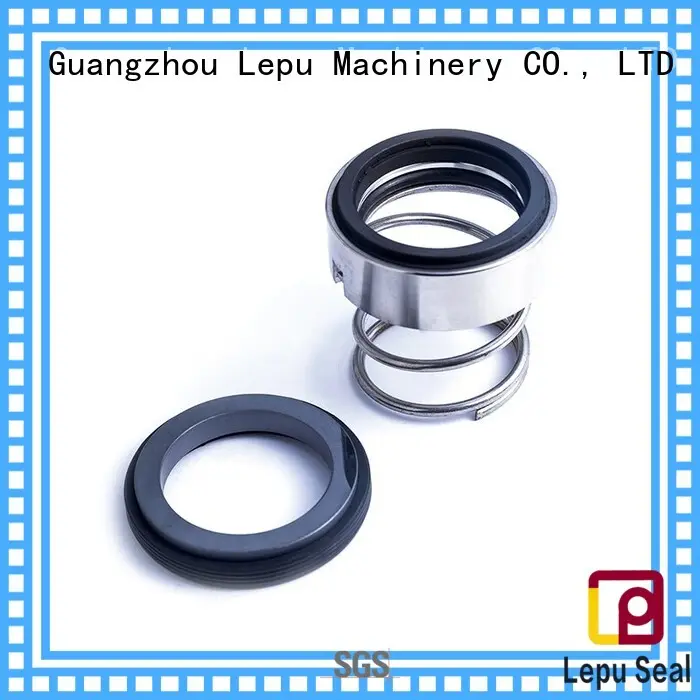

Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For


This mechanical seal is a standard seal for plain shafts, this m3n mechanical seal designed with rotating conical spring, and it is a single and unbalance seal, and it is a dependent on direction of rotation seal type

As a standard mechanical seal, burgmann m3n seal is widely used in many kinds of industry pumps, like water pumps, sewage pumps, submerged pumps, chemical pumps, and so on.



PRODUCT ADVANTAGE

bg



1
1
100% same design as a replacement for burgmann m3n mechanical seal
1
1
Different type material for seal face, matching clients running request
1
1
Top quality stainless steel SS304 for seal frame and spring
1
1
Left rotating or right rotating spring are all available in our factory



Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-1
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-2
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-3

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-4
  • ◪  Universal application opportunities

  • ◪  Insensitive to low solids content

  • ◪  No damage of the shaft by set screws

  • ◪  Large choice of materials

  • ◪  Short installation lengths possible (G16)

  • ◪  Short installation lengths possible (G16)



PRODUCT TECHNICAL DRAWING

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-5



SHAFT SIZE LIST

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-6


Working Range:

Pressure: p1 = 10 bar (145 PSI)
Temperature:
t = -20 °C ... +140 °C (-4 °F ... +355 °F)
Sliding velocity: vg = 15 m/s (50 ft/s)
Axial movement: ±1.0 mm



PRODUCT APPLICATION

bg


◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Building services industry

◪  Food and beverage industry

◪  Sugar industry

◪  Low solids content media

◪  Water and sewage water pumps

◪  Submersible pumps

◪  Chemical standard pumps

◪  Eccentric screw pumps

◪  Cooling water pumps


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-7
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-8



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-9


undefined
undefined
undefined
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-13
undefined
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-15





Company Features
1. Guangzhou Lepu Machinery CO., LTD is one of the world’s largest o ring seal manufacturer and world’s leading integrated service provider.
2. To achieve lean manufacturing, the factory has introduced many cutting-edge manufacturing facilities. As a result, with the help of these machines, we have driven improvement in production processes, increased output, and reduced costs.
3. Our corporate culture demands uncompromising and consistent adherence to a well-understood set of principles and standards that govern how we behave internally and when dealing with external partners. To go on sustainable development, we have constantly upgraded our production method and introduced advanced facilities to effectively control emissions. We support sustainable management to back up our company's long-term viability. We will make our production progress to be compliant with environmental regulations or conform to sustainable policies and initiatives.
