Lepu on-sale grundfos pump seal replacement buy now for sealing frame

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-A
Shaft size:
12,16mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
10000 set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. The material for Lepu grundfos mechanical shaft seals is carefully selected. Such properties and behaviors as strength, hardness, durability, flexibility, weight, resistance to heat and corrosion, electrical conductivity, and machinability are required. With highly advanced technology, Lepu seals can ensure better productivity for you
2. The design and realization of the Lepu grundfos pump seal replacement is based on grundfos mechanical shaft seals . Equipped with professional operation system, Lepu seal's quality is ensured
3. The product features strong resistance to corrosion. Non-corrosive materials have been used in its structure to enhance its capacity to withstand rust or acidity liquid. Lepu seals are designed and manufactured rigorously
4. This product meets the requirements of safe use. Safety testing has been performed based on mechanical design/performance, the intent of the product, the conditions of use and more. High density silicon for the seal face is adopted by Lepu
5. The product features an easy operation. It has a relatively simple operating system combining a powerful processing flow and provides simple operation instruction. Lepu ensures that the product quality and appearance are same to the original

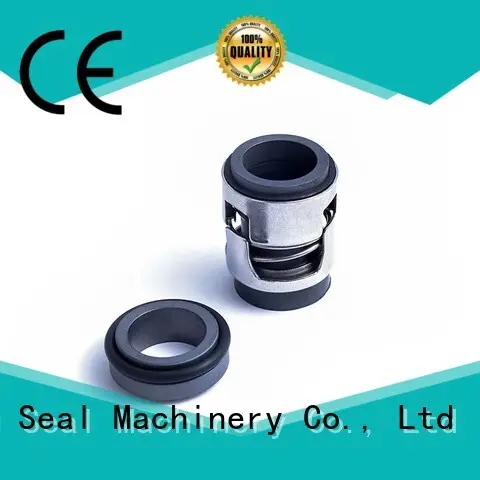

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a


Rubber Bellow Grundfos Mechanical Seal GRF-A is a replacement seal, working for grundfos Multistage Centrifugal Pumps. As a professional mechanical seal manufacturer, lepu seal factory 100% follow original grundfos design for this mechanical seal, and make sure perfect fit for grundfos CR / CRI / CRN Series Vertical Multistage Centrifugal Pumps.

This Grundfos Mechanical Seal with rubber bellows design, offering perfect seal ability for the pump. The rotary and stationary seal face can choose carbon or silicon as material, and use epdm or viton as rubber seal part.

If you donot know what size for what grundfos pump, please check the below data or contact us our sales, and get professional suggestion.



PRODUCT ADVANTAGE

bg



1
1
Top quality material for the frame and bellows
1
1
Long and short tail(foot) are all available
1
1
Competitive price with fast delivery for this seal
1
1
100% replacement for grundfos seal



Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-1
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-2
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-3
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-5
  • ◪ Temperature:-30℃ to 200℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel



PRODUCT TECHNICAL DRAWING

bg


GRF-A rubber bellow seal

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-6


Specification and size

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-7



PRODUCT APPLICATION

bg


◪  12mm shaft seal:

◪  Part number should be 405096, 405347, 405347TC

◪  Fit for Pump Models CR2, CRN2 (S), CR4, CRN4 (S), CR8,

◪  16mm shaft seal, part number is 425763, 425672, 425672TC.

◪  Fit for Pump Models CR8, CRN 8 (S), CR16, CRN16 (S)

◪  Also working for  grundfos CH, CHI ,CHE pump.


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-8



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
