Lepu multipurpose john crane mechanical seal catalogue supplier processing industries

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
TYPE 1
Shaft size:
12-75mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Application Scope
The Burgmann Mechanical Seal of LEPU SEAL is applicable in the following scenes.LEPU SEAL has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
  • Lepu multipurpose john crane mechanical seal catalogue supplier processing industries 11
Company Advantages
1. john crane mechanical seal catalogue is developed using latest technology support.
2. High stiffness is one of the obvious advantages of this product. When exposed to the external force, it is not susceptible to deformation or breaking.
3. With this product, less work is required to be done by human labor, which enhances speed, accuracy, and efficiency.


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal

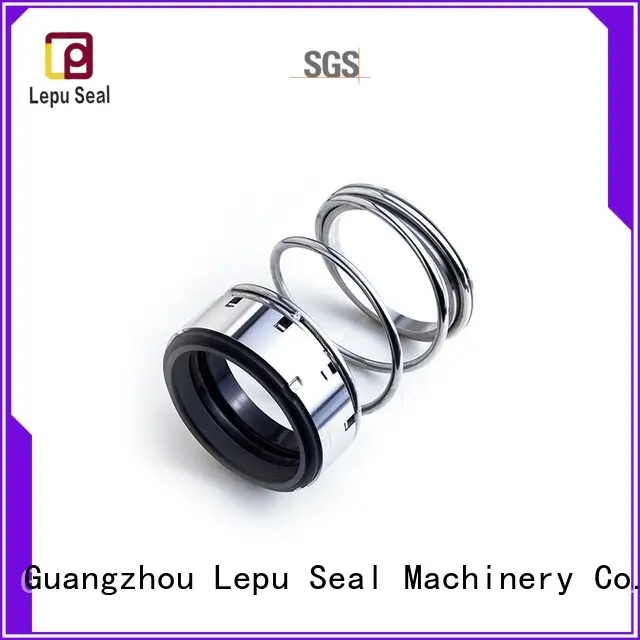

John crane type 1 is a full Convolution Industrial-duty seal, with elastomer Bellows design, Suitable for a wide range of service conditions ranging from water and steam to chemicals and corrosive materials.

The Type 1 elastomer bellows seal is widely recognized as the industry's workhorse., the Type 1 mechanical seal is ideal for use in pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment.
It is normally used by the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing and power generation industries.

The mechanical seal type 1 is a punched light pump seal, so cost is cheap, so very popular used in many kinds of industry equipment, that type 1 seal is also a featured seal item in our factory, we do offer high quality with very nice price for our professional mechanical seal clients in the past years.

Contact us without any hesitation if you are looking for this john crane type 1 mechanical seal.



PRODUCT ADVANTAGE

bg



1
1
Top quality stainless steel for the frame and spring
1
1
Different type material match depends on client’s request
1
1
Our factory Competitive price with fast delivery for this seal
1
1
100% replacement for original john crane seal design
1
1
Strong ability To absorb both breakout and running torque
1
1
Low drive torque improves performance and reliability



Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-1
Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-2
Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-3
Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-5
  • ◪ Model Number: John crane TYPE 1

  • ◪ Sealing Face: Carbon, SIC, TC, Ceramic

  • ◪ Secondary Sealing Combination: NBR, EPDM, VITON

  • ◪ Sealing Frame: stainless steel

  • ◪ Working Temperature:-20℃ --- 120℃

  • ◪ Linear Speed:≤ 15m/s

  • ◪ Technical drawing


Product feature

◪  UNBALANCED

◪  SINGLE SPRING

◪  BI-DIRECTIONAL

◪  ELASTOMER BELLOWS

◪  SET SCREW LOCK COLLARS AVAILABLE



PRODUCT TECHNICAL DRAWING

bg


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-6


Specification and size :


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-7



PRODUCT APPLICATION

bg


Pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-8


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-9
Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-10



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-11


Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-12
undefined
undefined
Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-15
undefined
Lepu-Find Manufacture About Heavy Duty John Crane Mechanical Seal-17





Company Features
1. Guangzhou Lepu Machinery CO., LTD is a company majoring in producing high quality john crane mechanical seal catalogue .
2. Having a complete set of quality management platform, Lepu may fulfill the requirements of different clients.
3. We have excellent teams. They are the units of our company to produce goods and provide services. They provide a great deal of knowledge, judgment, and expertise to meet product needs. We want to do the right thing not only for our customers and shareholders but for our people, and the environment. We do this by embedding responsible and sustainable business practices at the heart of everything we do through our own environmental programs. Inquiry! We actively respond to environmental issues. During the production, the wastewater will be treated by advanced waste management facilities to reduce pollution and energy resources will be used more effectively. We aim to be the leading provider in China. We have developed a detailed strategy to help us achieve this goal by standing out from the industry and providing the best services.
