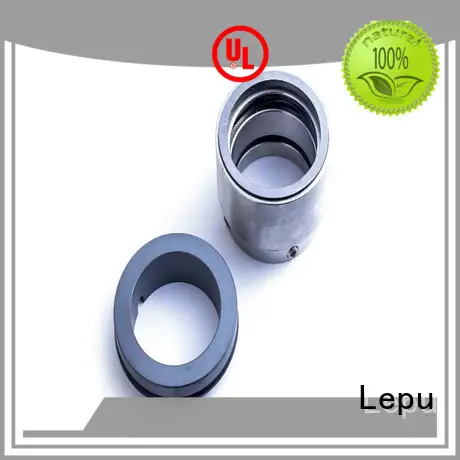

Lepu mechanical silicon o ring supplier for water

Brand Name:
LEPU
Place of Origin:
GUANGDONG, CHINA
Model Number:
HJ92N
Shaft size:
10mm-100mm
Avaiable material:
carbon/silicon, viton/nbr/epdm
Certification:
ISO, SGS,
OEM/ODM Availability:
YES
Package:
CARTON BOX
Delivery Time:
30DAYS
Start Port:
GUANGHZOU,CHINA
Supply Ability:
1000SET/MONTH
MOQ:
1SET
Payment Terms:
TT,WESTERN UNION, MONEYGRAM,LC
Inquiry
Enterprise Strength
  • LEPU SEAL has a professional service team to solve problems for customers.
Company Advantages
1. Lepu viton o ring temperature range is manufactured by using top-class materials and advanced tools & equipment under the guidance of highly skilled staff.
2. The product can bear the most demanding industrial conditions. It is made of heavy-duty materials such as steel alloys and is not prone to rust and corrosion.
3. The product has the advantage of stable mechanical properties. Having been treated under extremely cold temperatures, its mechanical components are tensile enough to withstand extreme industrial conditions.
4. silicon o ring has passed all relative quality certificates.


Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture


Mechanical seals of the HJ92N series from EagleBurgmann are designed for media containing, solids or with high viscosity e.g. sugar, paper, sewage and waste water industry.  The springs are product protected.  There is no sticking or clogging making the design rugged and reliable.  The seal is independent of direction of rotation.

LEPU SEAL is a professional supplier for mechanical seal products, focus in making mechanical seal since 1998, our mechanical seal products cover almost all range of the famous mechanical seal, like grundfos seal, flygt seal, burgmann seal, john crane seal, and apv seal, alfa laval seal, nissin pump seal, and so on.



PRODUCT ADVANTAGE

bg



1
1
100% same replacement for burgmann mechanical seal HJ92N
1
1
Top quality stainless steel SS304 or SS316 for the frame and multiple spring
1
1
Factory directly price with fast delivery serive
1
1
Different material option upon working liquid



Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-1
Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-2


PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-3
  • ◪  Single seal

  • ◪  Unbalanced

  • ◪  Super-Sinus-spring or multiple springs rotating

  • ◪  Independent of direction of rotation

  • ◪  Universal application opportunities

  • ◪  Efficient stock keeping due to easily interchangeable faces

  • ◪  Extended selection of materials

  • ◪  Insensitive to low solids contents

  • ◪  Flexibility in torque transmissions

  • ◪  Self cleaning effect



PRODUCT TECHNICAL DRAWING

g



Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-4







Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-5



Working Range:

Pressure:
p1*) = 0.5 abs ... 25 bar (7.25 abs ... 363 PSI)
Temperature:
t = -50 °C ... +220 °C (-58 °F ... +430 °F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Axial movement:
d1 = 18 ... 25 mm: ±0,5 mm
d1 = 28 ... 55 mm: ±0,8 mm
d1 = 60 ... 100 mm: ±1,0 mm



PRODUCT APPLICATION

bg


◪  Process industry

◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Shipbuilding

◪  Lube oils

◪  Low solids content media

◪  Water / sewage water pumps

◪  Chemical standard pumps

◪  Vertical screw pumps

◪  Gear wheel feed pumps

◪  Multistage pumps (drive side)


Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-6
Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-7



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-8


undefined
undefined
undefined
Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-12
undefined
Lepu-Best Eagleburgmann Mechanical Seal Made By Lepu Seal Manufacture-14






Company Features
1. With years of efforts on the design and manufacture of viton o ring temperature range , Guangzhou Lepu Machinery CO., LTD has developed into a professional manufacturer in the industry.
2. At present, most of the silicon o ring series produced by us are original products in China.
3. We consider sustainability is of great importance. We invest in sectors such as water supply, wastewater treatment systems, and sustainable energy to make a real difference to the environment. Adhering to the highest ethical standards, we operate our business and treat all of our co-workers, customers, and suppliers with honesty, integrity, and respect. We implement sustainable development policy during our business activities. We adopt appropriate technologies to manufacture, preventing and reducing environmental pollution. Our company plays an active role in protecting natural resources and reducing environmental impact. We understand the impact that our factory may have on the environment, including changes in water quality and climate change. This is why we have long set environmental goals and share progress on a regular basis.
