Lepu marine o ring mechanical seals customization for water

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
M7N
Shaft size:
14-200mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
10-15 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Details
With the dedication to pursue excellence, LEPU SEAL strives for perfection in every detail.Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, LEPU SEAL's Bellows Seal is highly competitive in the domestic and foreign markets.
  • Lepu marine o ring mechanical seals customization for water 11
Enterprise Strength
  • LEPU SEAL insists on combining standardized services with personalized services to meet customers' different needs. This contributes to the brand image building of our company's quality service.
Company Advantages
1. o ring mechanical seals has outstanding features of o ring design to differentiate it from other products.
2. All incoming materials are inspected to ensure they match the quality requirement.
3. Customer opinions are seriously used to boost this product's quality.
4. Guangzhou Lepu Machinery CO., LTD has won customers' trust and support with excellent sales, perfect design, excellent production and sincere services.
5. Guangzhou Lepu Machinery CO., LTD can send free samples if needed by customers.

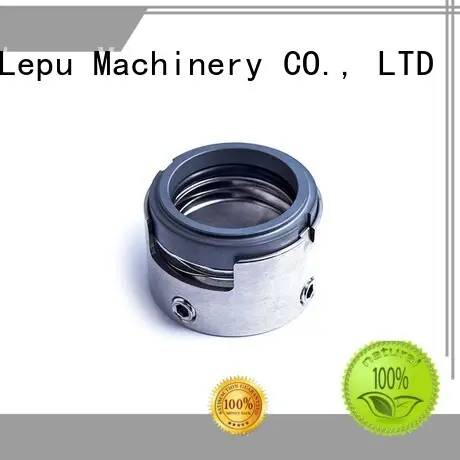

Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical


M7N mechanical seal made by lepu seal is a popular seal replacement for eagleburgmann m7n. this seal we made is a Self cleaning effect seal, and insensitive to low solids contents, this seal design offer strong flexibility in torque transmissions, and for this seal, Lepu seal offer many kinds of selection material for the seal face.

Mechancial seal m7n is widely used in many industry pumps, especially for Low solids content media, Chemical standard pumps, Shipbuilding, Gear wheel feed pumps.  If in high chemical condition, PTFE is recommend for secondary seals , as ptfe offer high chemical resistance.

If need any more information about this seal, contact Lepu seal freely.



PRODUCT ADVANTAGE

bg



1
1
100% same replacement for burgmann M7N
1
1
Top quality stainless steel SS304 or SS316 for the frame and multiple spring
1
1
Factory directly price with fast delivery serive
1
1
Different material option upon working liquid



Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-1
Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-2
Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-3


PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-4
  • ◪  Single seal

  • ◪  Unbalanced

  • ◪  Super-Sinus-spring or multiple springs rotating

  • ◪  Independent of direction of rotation

  • ◪  Universal application opportunities

  • ◪  Efficient stock keeping due to easily interchangeable faces

  • ◪  Extended selection of materials

  • ◪  Insensitive to low solids contents

  • ◪  Flexibility in torque transmissions

  • ◪  Self cleaning effect



PRODUCT TECHNICAL DRAWING

bg


Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-5



SHAFT SIZE LIST

bg


Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-6


Working Range:

p1 = 25 bar (363 PSI)
Temperature:
t = -50 °C ... +220 °C
(-58 °F ... +428 °F)
Sliding velocity:
vg = 20 m/s (66 ft/s)



PRODUCT APPLICATION

bg


◪  Process industry

◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Shipbuilding

◪  Lube oils

◪  Low solids content media

◪  Water / sewage water pumps

◪  Chemical standard pumps

◪  Vertical screw pumps

◪  Gear wheel feed pumps

◪  Multistage pumps (drive side)


Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-7
Lepu-Factory Directly Price Eagleburgmann Replacement Mechanical-8



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
