Lepu Lepu mechanical seal bellows mechanical seal OEM for beverage

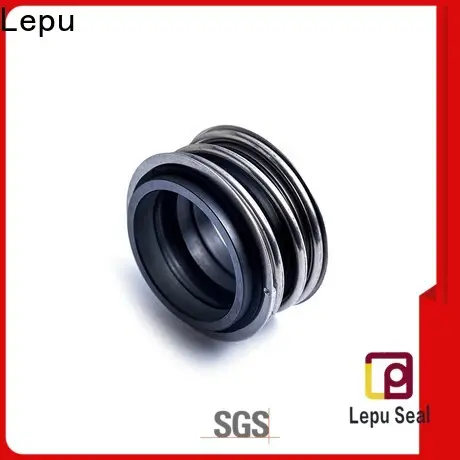

Burgmann mechanical seal MG1/MG12/MG13 is a famous elastomer bellows seal widely used in many kind of industry, like Process industry, Chemical industry, Pulp and paper industry, Water and waste water technology, Food and beverage industry, Sugar industry, and so on.

The MG1 can also be used as a multiple seal in tandem or in a back-to-back arrangement. Installation proposals available upon request.

And for different using, there several type of the rubber tail, a middle long tail is MG12 mechanical seal, and longest tail is MG13 type. Please choose the right type tail when buying this burgmann mechanical seal MG1 type.

Advantage introduction:competitive price+ fast delivery+top after-sale service

• ◪  For plain shafts

• ◪  Single and dual seal

• ◪  Elastomer bellows rotating

• ◪  Unbalanced

• ◪  Independent of direction of rotation

• ◪  No torsion on bellows

Working Range:

Pressure: p1 = 16 bar (230 PSI),
vacuum ... 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature:
t = -20 °C … +140 °C
(-4 °F … +284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm

◪  Process industry

◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Food and beverage industry

◪  Sugar industry

◪  Chemical standard pumps

◪  Helical screw pumps

◪  Stock pumps

◪  Circulating pumps

◪  Submersible pumps

◪  Water and waste water pumps

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
