Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 1
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 2
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 3
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 4
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 5
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 6
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 7
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 8
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 9
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 10
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 1
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 2
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 3
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 4
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 5
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 6
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 7
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 8
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 9
Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame 10

Lepu grfc mechanical seal pompa grundfos for wholesale for sealing frame

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-E
Shaft size:
12,16,22mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Beautifully designed, mechanical seal pompa grundfos looks more attractive. Lepu seal is extreme corrosion resistance
2. This product helps reduce energy bills. Using such an appliance will definitely cut the spending at home, workplace, or industries. Lepu seal is 100% replacement as original
3. mechanical seal pompa grundfos have been widely used in Mechanical Seal for Grundfos Pump for their Mechanical Seal for Grundfos Pump features. Lepu products cost less than that of the original
4. mechanical seal pompa grundfos have always found a traditional use in the Mechanical Seal for Grundfos Pump industries, due the Mechanical Seal for Grundfos Pump of the material. All Lepu products enjoy longer service time

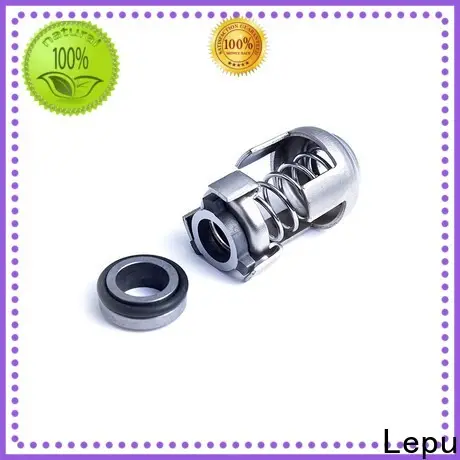

Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e


Grundfos mechanical seal GRF-E is a  pump seal which fit for grundfos pump model CRK2/CR4/CRK8/CRK16, CRK2/4 AUUV, CRK8/16 AUUV, CRK2/4

This grundfos seal is a unbalance seal with oring component, Robust O-ring seal featuring a rigid torque transmission design required for hard material pairings (WC/WC or SiC/SiC), even where lubrication is poor. The dynamic secondary seal is an O-ring. This involves a risk of wear on the shaft under the O-ring and of seal hang-up (blocking of axial movement of the rotating seal ring).

Users can choose carbon, silicon, and tungsten carbide for this mechanical seal as seal face, if for high temerperature, we suggest to choose rubber seal viton for the rubber parts.

Lepu seal make this grundfos pump seal for many years, and offer professional suggestion when client need this grundfos seal, so we are your reliable specialist for grundfos mechanical seal.



PRODUCT ADVANTAGE

bg



1
1
High density SSIC material for the seal face
1
1
Free sample available for this seal
1
1
Competitive price and fast delivery
1
1
Unbalanced seal with oring type



Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-1
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-2
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-3
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-5
  • ◪ Temperature:-30℃ to 180℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel



PRODUCT TECHNICAL DRAWING

bg


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-6


Specification and size :

12mm, 16mm, 22mm



PRODUCT APPLICATION

bg


This grundfos seal working for below pump model:

CRK2/CR4/CRK8/CRK16, CRK2/4 AUUV, CRK8/16 AUUV, CRK2/4


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-7



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
