Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

Lepu grfc grundfos shaft seal for wholesale for sealing joints 1
Lepu grfc grundfos shaft seal for wholesale for sealing joints 2
Lepu grfc grundfos shaft seal for wholesale for sealing joints 3
Lepu grfc grundfos shaft seal for wholesale for sealing joints 4
Lepu grfc grundfos shaft seal for wholesale for sealing joints 5
Lepu grfc grundfos shaft seal for wholesale for sealing joints 6
Lepu grfc grundfos shaft seal for wholesale for sealing joints 7
Lepu grfc grundfos shaft seal for wholesale for sealing joints 8
Lepu grfc grundfos shaft seal for wholesale for sealing joints 9
Lepu grfc grundfos shaft seal for wholesale for sealing joints 10
Lepu grfc grundfos shaft seal for wholesale for sealing joints 1
Lepu grfc grundfos shaft seal for wholesale for sealing joints 2
Lepu grfc grundfos shaft seal for wholesale for sealing joints 3
Lepu grfc grundfos shaft seal for wholesale for sealing joints 4
Lepu grfc grundfos shaft seal for wholesale for sealing joints 5
Lepu grfc grundfos shaft seal for wholesale for sealing joints 6
Lepu grfc grundfos shaft seal for wholesale for sealing joints 7
Lepu grfc grundfos shaft seal for wholesale for sealing joints 8
Lepu grfc grundfos shaft seal for wholesale for sealing joints 9
Lepu grfc grundfos shaft seal for wholesale for sealing joints 10

Lepu grfc grundfos shaft seal for wholesale for sealing joints

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-A
Shaft size:
12,16mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
10000 set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. To manufacture Lepu Grundfos Mechanical Seal Suppliers , we adopt lean production method, giving faster turnaround time and flawless accuracy. The seal face uses high quality SSIC for stationary and rotary
2. This product is widely used in domestic and foreign markets. All Lepu products enjoy longer service time
3. Its performance outperforms well similar products. During the operation, Lepu seals enjoy higher precision
4. The production process of the product has a strong stability and is a guarantee of product quality. Lepu seal is extreme corrosion resistance
5. The product undergoes quality testing from our QC team to ensure faultlessness. Lepu seals enjoy low maintenance costs


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a

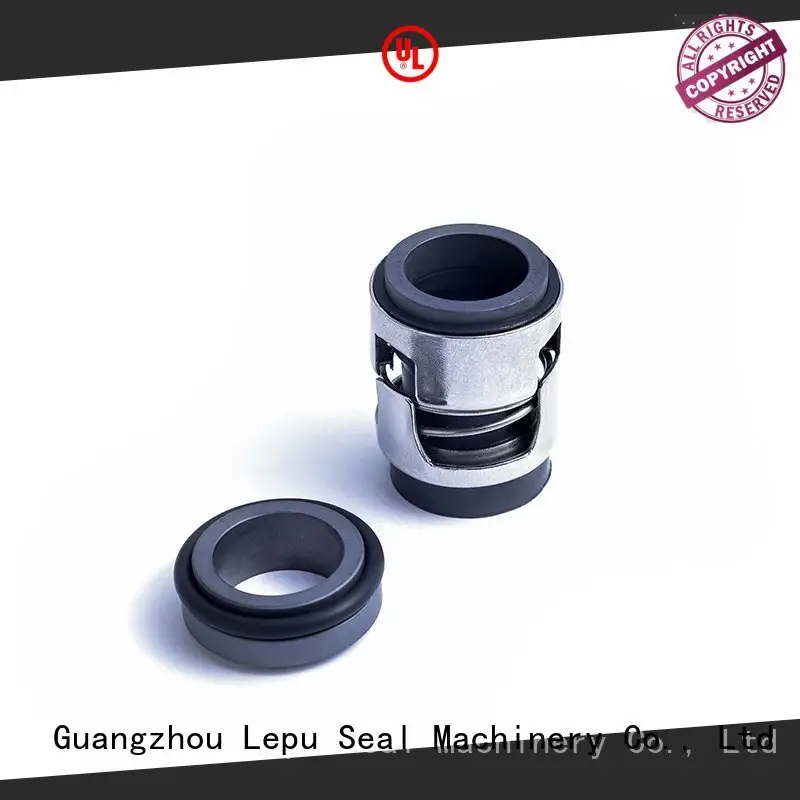

Rubber Bellow Grundfos Mechanical Seal GRF-A is a replacement seal, working for grundfos Multistage Centrifugal Pumps. As a professional mechanical seal manufacturer, lepu seal factory 100% follow original grundfos design for this mechanical seal, and make sure perfect fit for grundfos CR / CRI / CRN Series Vertical Multistage Centrifugal Pumps.

This Grundfos Mechanical Seal with rubber bellows design, offering perfect seal ability for the pump. The rotary and stationary seal face can choose carbon or silicon as material, and use epdm or viton as rubber seal part.

If you donot know what size for what grundfos pump, please check the below data or contact us our sales, and get professional suggestion.



PRODUCT ADVANTAGE

bg



1
1
Top quality material for the frame and bellows
1
1
Long and short tail(foot) are all available
1
1
Competitive price with fast delivery for this seal
1
1
100% replacement for grundfos seal



Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-1
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-2
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-3
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-5
  • ◪ Temperature:-30℃ to 200℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel



PRODUCT TECHNICAL DRAWING

bg


GRF-A rubber bellow seal

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-6


Specification and size

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-7



PRODUCT APPLICATION

bg


◪  12mm shaft seal:

◪  Part number should be 405096, 405347, 405347TC

◪  Fit for Pump Models CR2, CRN2 (S), CR4, CRN4 (S), CR8,

◪  16mm shaft seal, part number is 425763, 425672, 425672TC.

◪  Fit for Pump Models CR8, CRN 8 (S), CR16, CRN16 (S)

◪  Also working for  grundfos CH, CHI ,CHE pump.


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-8



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-9


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-10
undefined
undefined
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-13
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD stands out among all Chinese grundfos shaft seal manufacturer. The factory is well-equipped with a full set of manufacturing facilities and testing equipment. This not only enables us to increase production efficiency, but also helps us improve the customer satisfaction level by high-quality products.
2. Our factory adopts imported new production facilities. These facilities have helped us speed up our manufacturing process and enable us to provide better products and faster manufacturing service.
3. The factory has well-equipped cutting-edge facilities, including testing machines and manufacturing machines. These facilities always work in a precise and high efficient manner, which enables us to improve overall productivity. Centering on high quality, Guangzhou Lepu Machinery CO., LTD hopes to serve every customer well. Get quote!
