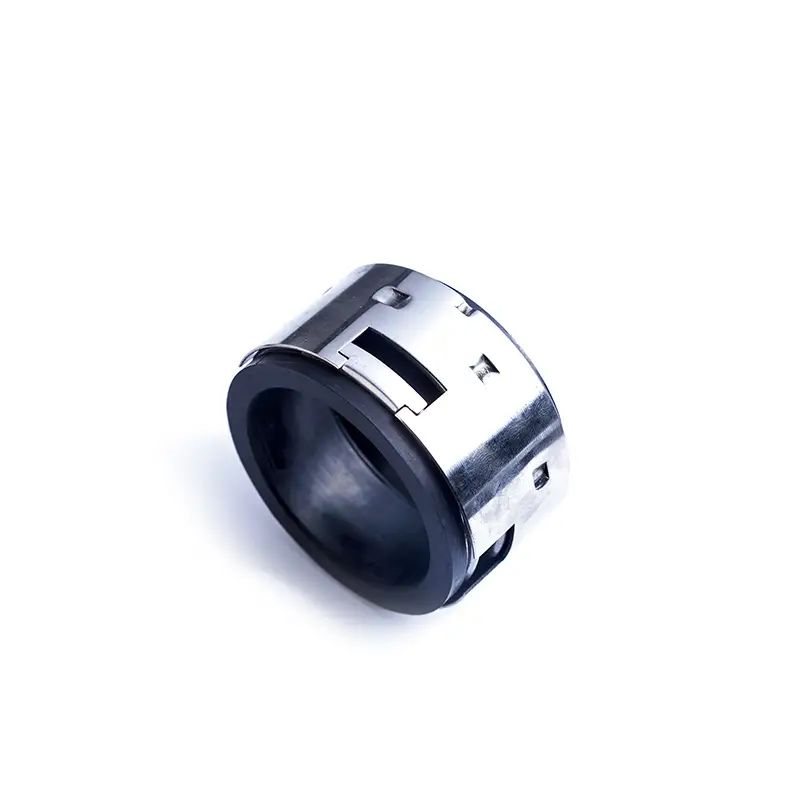

Lepu funky john crane mechanical seal catalogue get quote for chemical 1
Lepu funky john crane mechanical seal catalogue get quote for chemical 2
Lepu funky john crane mechanical seal catalogue get quote for chemical 3
Lepu funky john crane mechanical seal catalogue get quote for chemical 4
Lepu funky john crane mechanical seal catalogue get quote for chemical 5
Lepu funky john crane mechanical seal catalogue get quote for chemical 6
Lepu funky john crane mechanical seal catalogue get quote for chemical 7
Lepu funky john crane mechanical seal catalogue get quote for chemical 8
Lepu funky john crane mechanical seal catalogue get quote for chemical 9
Lepu funky john crane mechanical seal catalogue get quote for chemical 10
Lepu funky john crane mechanical seal catalogue get quote for chemical 1
Lepu funky john crane mechanical seal catalogue get quote for chemical 2
Lepu funky john crane mechanical seal catalogue get quote for chemical 3
Lepu funky john crane mechanical seal catalogue get quote for chemical 4
Lepu funky john crane mechanical seal catalogue get quote for chemical 5
Lepu funky john crane mechanical seal catalogue get quote for chemical 6
Lepu funky john crane mechanical seal catalogue get quote for chemical 7
Lepu funky john crane mechanical seal catalogue get quote for chemical 8
Lepu funky john crane mechanical seal catalogue get quote for chemical 9
Lepu funky john crane mechanical seal catalogue get quote for chemical 10

Lepu funky john crane mechanical seal catalogue get quote for chemical

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
TYPE 502
Shaft size:
14-100mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Enterprise Strength
  • LEPU SEAL has excellent customer service management team and professional customer service personnel. We can provide comprehensive, thoughtful, and timely services for customers.
Company Advantages
1. The adoption of advanced equipment and the lean production method make Lepu john crane mechanical seal catalogue more cost-effective.
2. Performance such as John Crane Mechanical Seal 2100 make it meet requirements in john crane mechanical seal catalogue market.
3. Guangzhou Lepu Machinery CO., LTD thinks highly of the performance of John Crane Mechanical Seal 2100 which is used to be economical and eco-friendly.
4. The product can foster a safe environment as it does all the work without an operator having to be present.


Lepu-Professional John Crane Mechanical Seal Type 1 John Crane

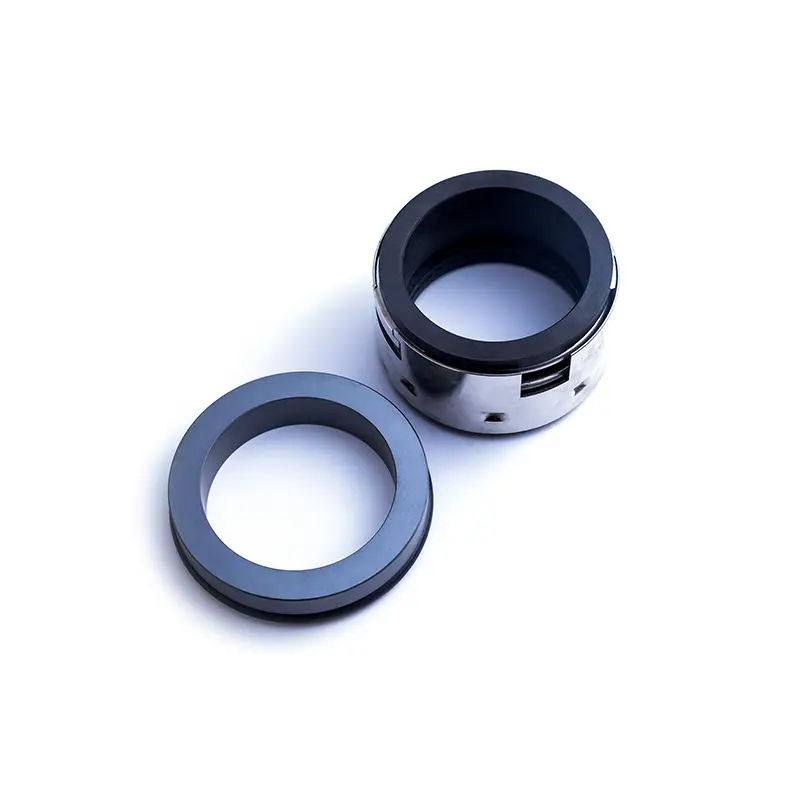

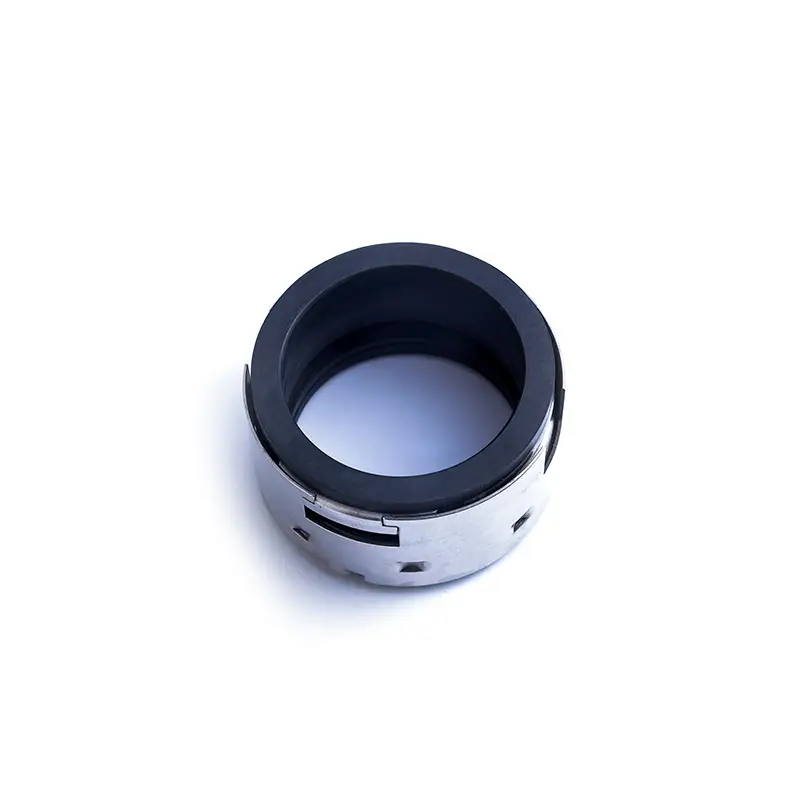

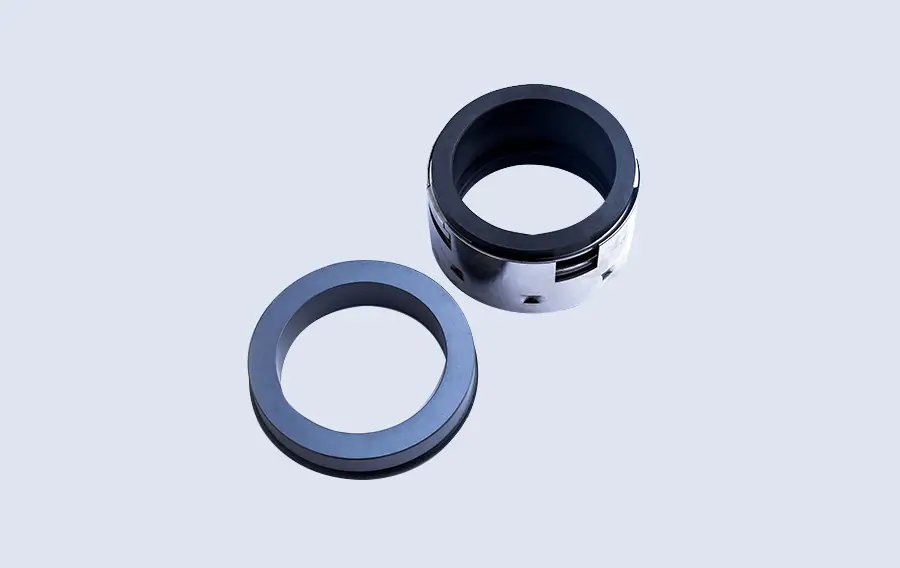

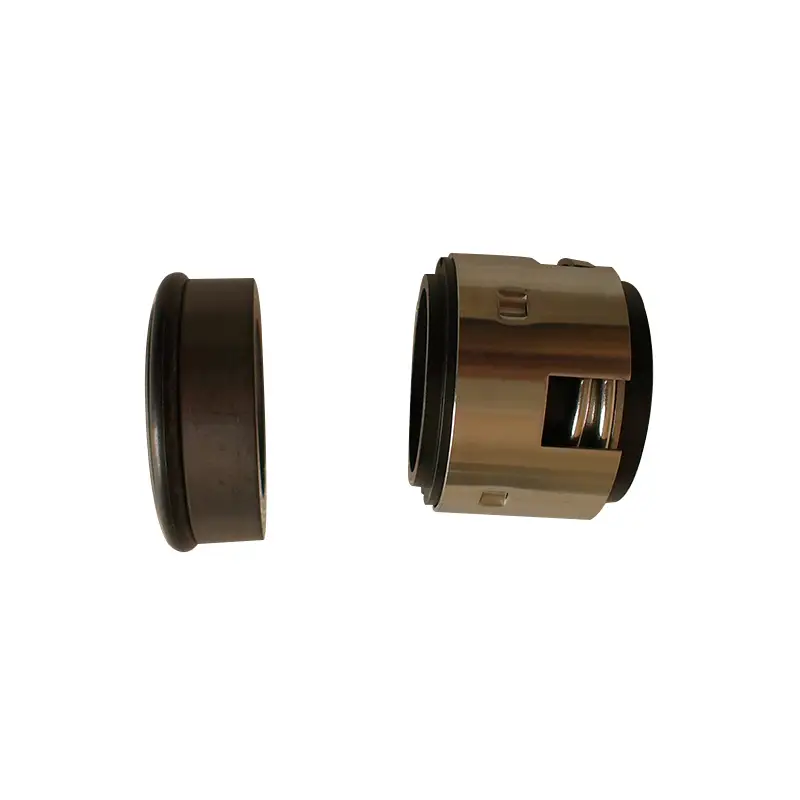

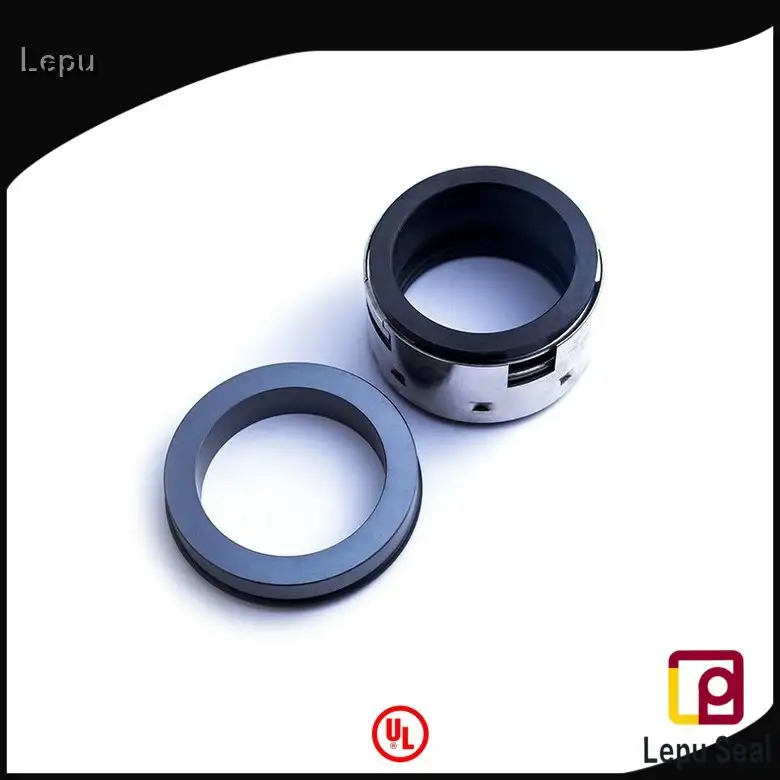

John crane mechanical seal type 502 is one of the best-performing elastomeric bellows seals available. Working well for general service and provideing excellent performance in a wide range of hot water and mild chemical liquid. It is specifically designed for confined spaces and limited glands lengths.

the Type 502 mechanical seal is widely recognized as the industry's workhorse., this mechanical seal is ideal for use in pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment.

John crane mechanical seal 502 is also a featured seal item in our factory, we do offer high quality with very nice price for our professional mechanical seal clients in the past years.

Contact us without any hesitation if you are looking for this john crane 502 mechanical seal for your pumps or any equipment.



PRODUCT ADVANTAGE

bg



1
1
Top quality stainless steel for the frame and spring
1
1
Factory directly outlet price with top after-sales service
1
1
100% replacement for original john crane seal design
1
1
100% replacement for original grundfos CM seal
1
1
Strong ability To absorb both breakout and running torque
1
1
Bi-directional and robust drive to the seal face eliminates stresses on the bellows



Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-1
Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-2
Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-3
Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-5
  • ◪ Model Number: John crane mechanical seal type 502

  • ◪ Sealing Face: Carbon, SIC, TC, Ceramic

  • ◪ Secondary Sealing Combination: NBR, EPDM, VITON

  • ◪ Sealing Frame: stainless steel

  • ◪ Working Temperature:- -40°F to 400°F/40°C to 205°C (depending on materials used)

  • ◪ Working pressure: ≤ 4MPA


Product feature

◪  Full convolution elastomeric bellows seal designed to fit into confined spaces including DIN24960.

◪  Unitized for ease of installation and tolerant of shaft play and run-out.

◪  Bi-directional and robust drive to the seal face eliminates stresses on the bellows

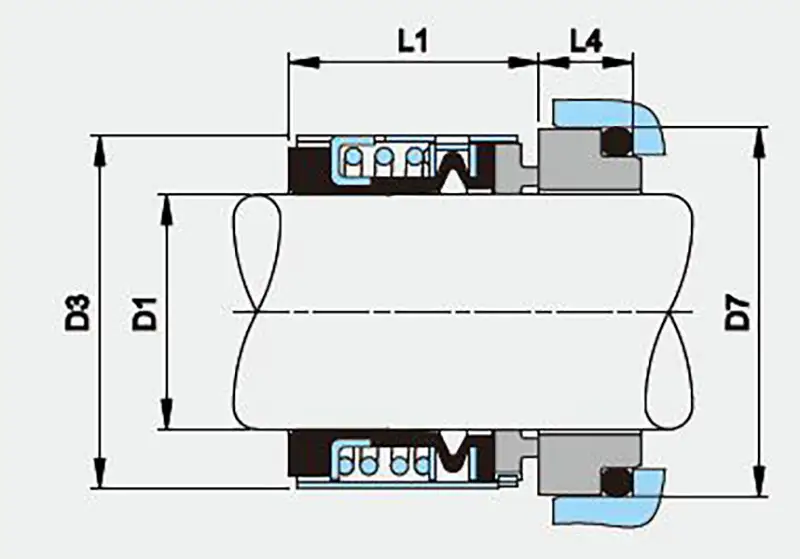

PRODUCT TECHNICAL DRAWING

bg


Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-6

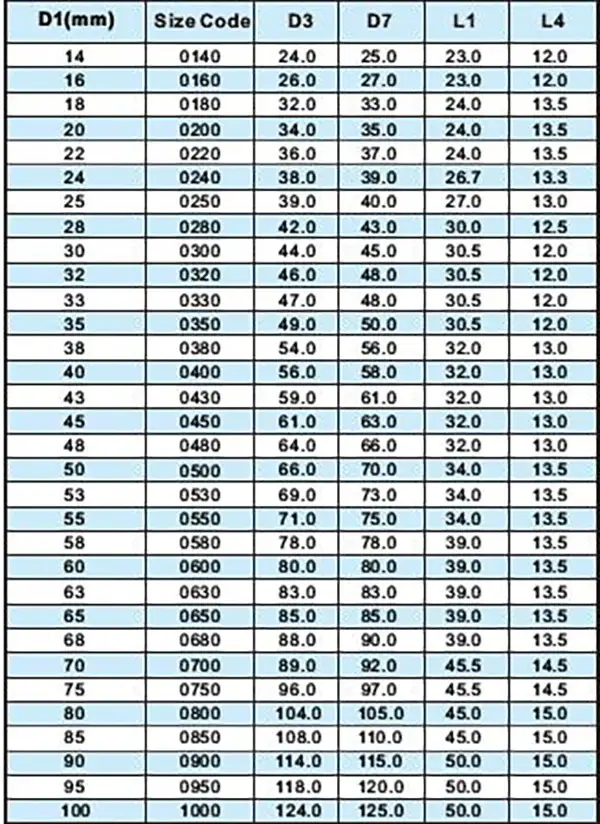

Specification and size :


Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-7



PRODUCT APPLICATION

bg


Pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment


Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-8


Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-9
Lepu-Professional John Crane Mechanical Seal Type 1 John Crane-10



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
