high-quality metal bellow mechanical seal single OEM for food

Brand Name:

Lepu

Place of Origin:

Guangzhou, China

Model Number:

155/155B

Shaft size:

10mm-40mm

Avaiable material:

CARBON/SIC/TC/EPDM/VITON, SS304 or SS316

Certification:

SGS,ISO,CE/UL/SGS/…

OEM/ODM Availability:

Yes

Package:

Carton box

Delivery Time:

15-20 day

Supply Ability:

100000 set/MONTH

MOQ:

1 set

Payment Terms:

L/C, T/T, Western Union, MoneyGram

Inquiry

Company Advantages
1. During the production of Lepu elastomer seal design, several stages are covered. They are the collection of different foot types, CAD pattern design, material preparation, machining, and trimming. High density silicon for the seal face is adopted by Lepu
2. By using this product, everything under it looks more vibrant and lifelike. It brings a fresh look of the surrounding for me. - said one of the customers. Lepu seal can be applied to all kinds of pumps
3. The product is equipped with all the safety systems. The function of automatic diagnosis enables it to detect the faults of the instruments by alarming.

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal

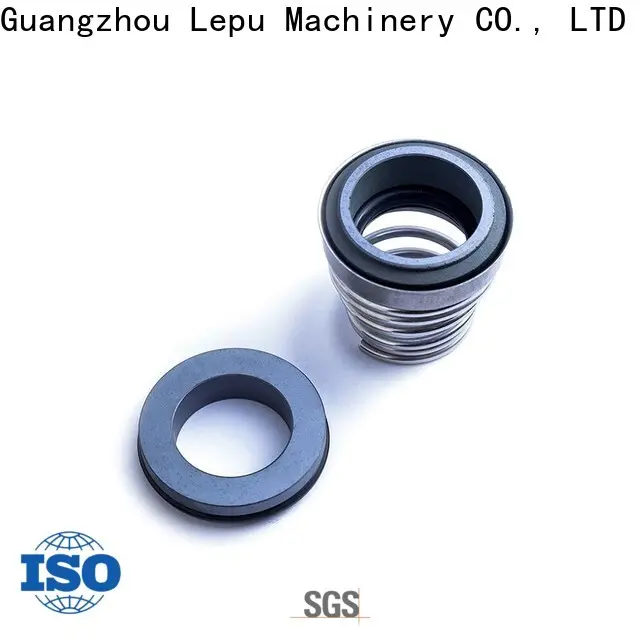

Single spring mechanical seal 155(155B) is a very economic mechanical seal, highly valuable and with interchangeable components.

As a low cost seal, mechanical seal 155 is used for many famous pump, like lowara pump, flowserve pump, and so on. It is easy to replace and maintain.

The popular material are ceramic ,carbon, silicon for the seal ring, and stainless steel for the frame and single spring .

Lepu seal factory provides this mechanical seal 155 to many different clients with big quantity, and get high reputation when making this seal 155, buy mechanical seal from our factory is a good choice.

PRODUCT ADVANTAGE

Low cost with high valuable mechanical seal

Multi kinds of material matching different working condition

155 or 155B(big head) are all available

Factory directly price with fast delivery, even for small order quantity

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-1

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-2

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-3

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

click here to get free seal sample！

PRODUCT TECHNICAL SPECIFICATION

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-5

◪ Sealing Face: Carbon, SIC, TC, Ceramic
◪ Secondary Sealing Combination: NBR, EPDM, VITON
◪ Sealing Frame: stainless steel
◪ Working Temperature:-20℃ --- 180℃
◪ Working pressure: ≤ 0.8MPA
◪ Linear Speed:≤ 10m/s

PRODUCT TECHNICAL DRAWING

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-6

Specification and size : 155/155B

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-7

PRODUCT APPLICATION

Working for water pump like lowara flowserve, KSB pump.

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-8

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-9

DISPLAY DIAGRAM

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-10

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-11

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-14

Lepu-Find Single Spring Type Mechanical Seal Single Spring Mechanical Seal-16

Company Features
1. We have a pool of design professionals. They are well-educated and have a deep and unique insight into the way of designing products. They have already designed a broad range of products that sell like a hot cake in our clients' markets.
2. Guangzhou Lepu Machinery CO., LTD has been working closely with customers to develop solutions. Please contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
