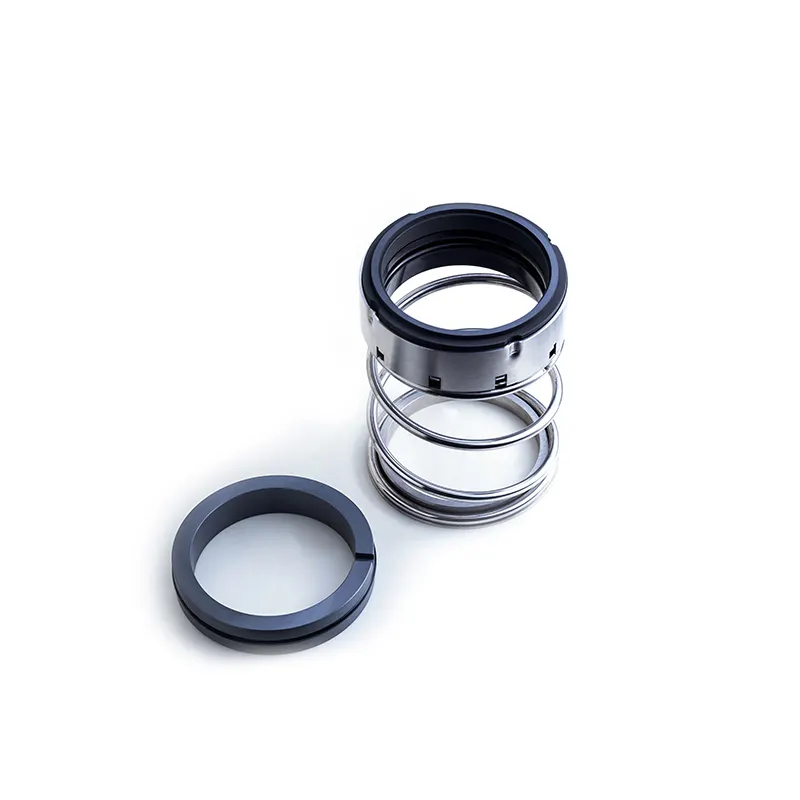

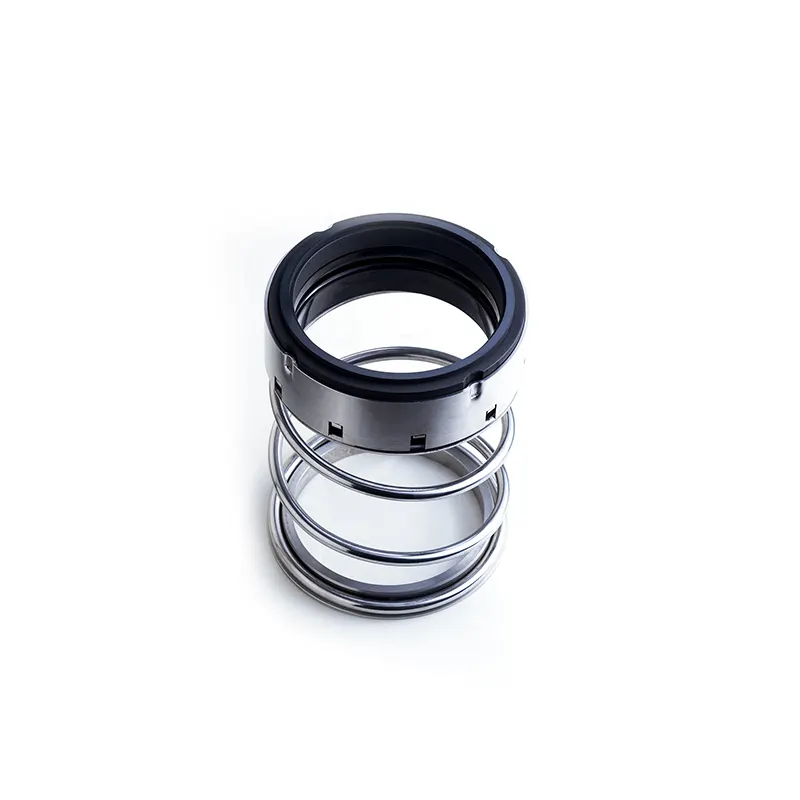

Custom john seal john crane mechanical seal Lepu 502

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
TYPE 1
Shaft size:
12-75mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Unmatched expertise of Lepu enables us to serve our clients with utmost accuracy than our industry competitors. Lepu seals: small but essential
2. The adoption of john crane mechanical seal spare parts method can cause john crane type 21 mechanical seal and satisfy production requirements. Lepu seals can be applied to all kinds of pumps
3. Even in extreme condition, our john crane mechanical seal can work normally. Focus on mechanical seals for 20 years


Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu


John crane type 1 is a full Convolution Industrial-duty seal, with elastomer Bellows design, Suitable for a wide range of service conditions ranging from water and steam to chemicals and corrosive materials.

The Type 1 elastomer bellows seal is widely recognized as the industry's workhorse., the Type 1 mechanical seal is ideal for use in pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment.
It is normally used by the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing and power generation industries.

The mechanical seal type 1 is a punched light pump seal, so cost is cheap, so very popular used in many kinds of industry equipment, that type 1 seal is also a featured seal item in our factory, we do offer high quality with very nice price for our professional mechanical seal clients in the past years.

Contact us without any hesitation if you are looking for this john crane type 1 mechanical seal.



PRODUCT ADVANTAGE

bg



1
1
Top quality stainless steel for the frame and spring
1
1
Different type material match depends on client’s request
1
1
Our factory Competitive price with fast delivery for this seal
1
1
100% replacement for original john crane seal design
1
1
Strong ability To absorb both breakout and running torque
1
1
Low drive torque improves performance and reliability

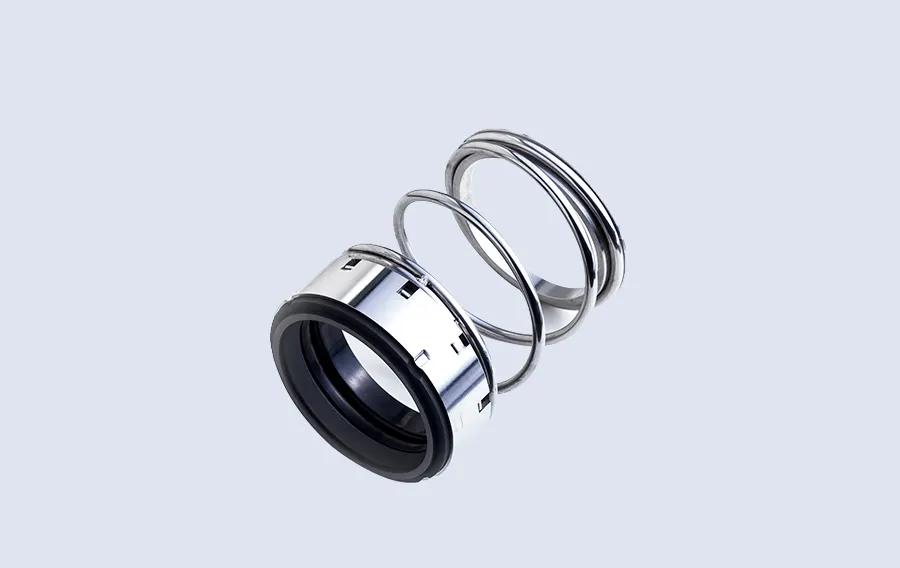

Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-1
Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-2

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


  • ◪ Model Number: John crane TYPE 1

  • ◪ Sealing Face: Carbon, SIC, TC, Ceramic

  • ◪ Secondary Sealing Combination: NBR, EPDM, VITON

  • ◪ Sealing Frame: stainless steel

  • ◪ Working Temperature:-20℃ --- 120℃

  • ◪ Linear Speed:≤ 15m/s

  • ◪ Technical drawing


Product feature

◪  UNBALANCED

◪  SINGLE SPRING

◪  BI-DIRECTIONAL

◪  ELASTOMER BELLOWS

◪  SET SCREW LOCK COLLARS AVAILABLE

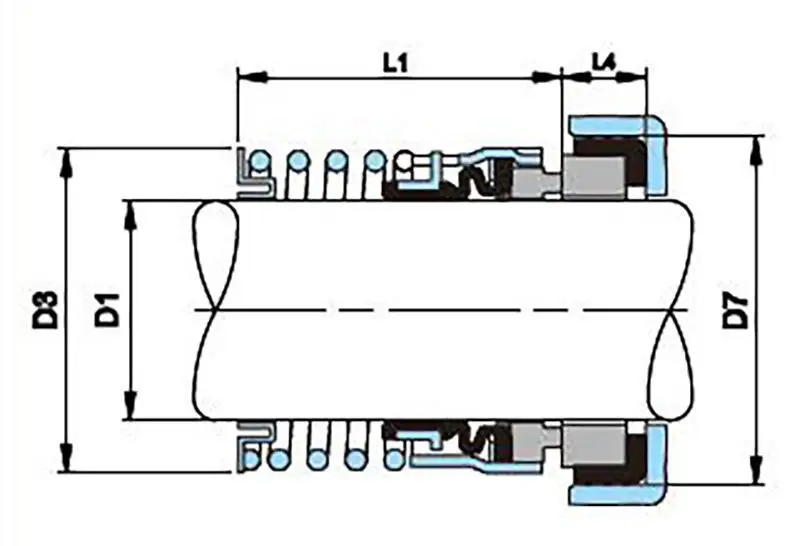

PRODUCT TECHNICAL DRAWING

bg

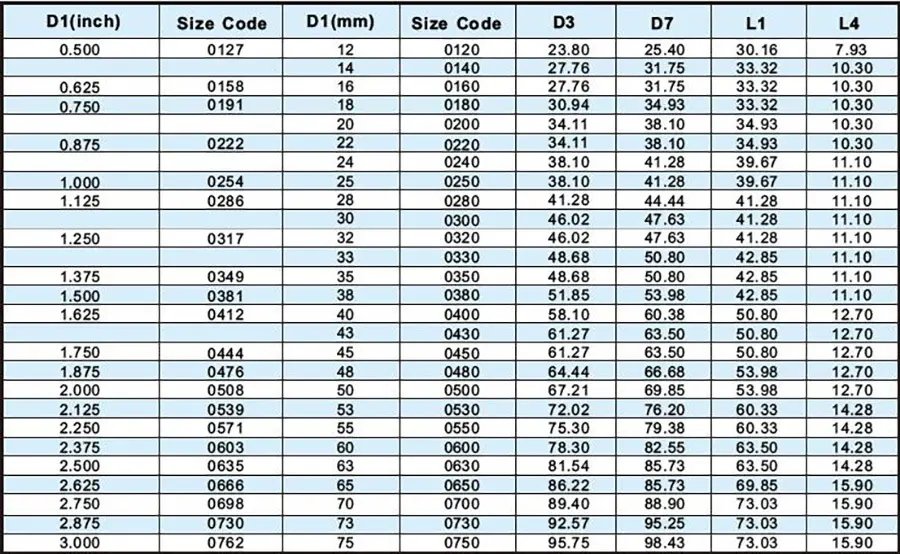

Specification and size :




PRODUCT APPLICATION

bg


Pumps, mixers, blenders, agitators, air compressors, blowers, fans and other rotary shaft equipment

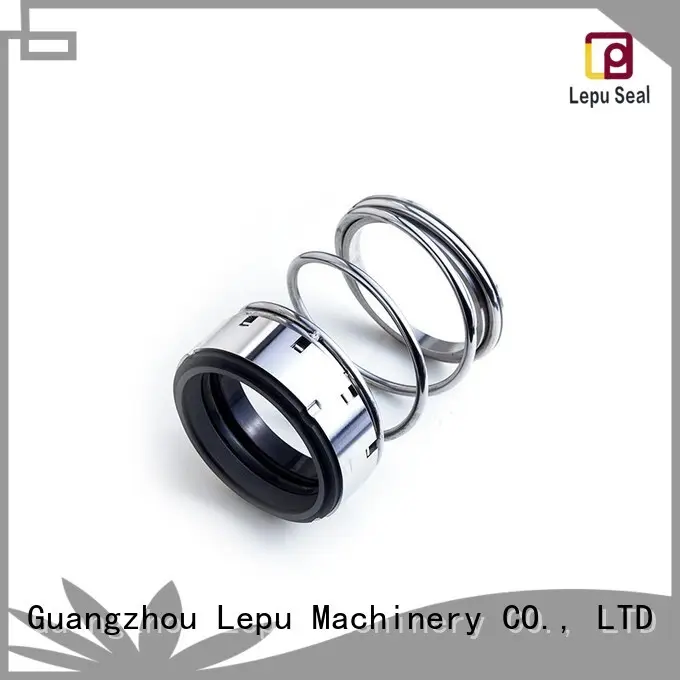

Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-3
Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-4



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.

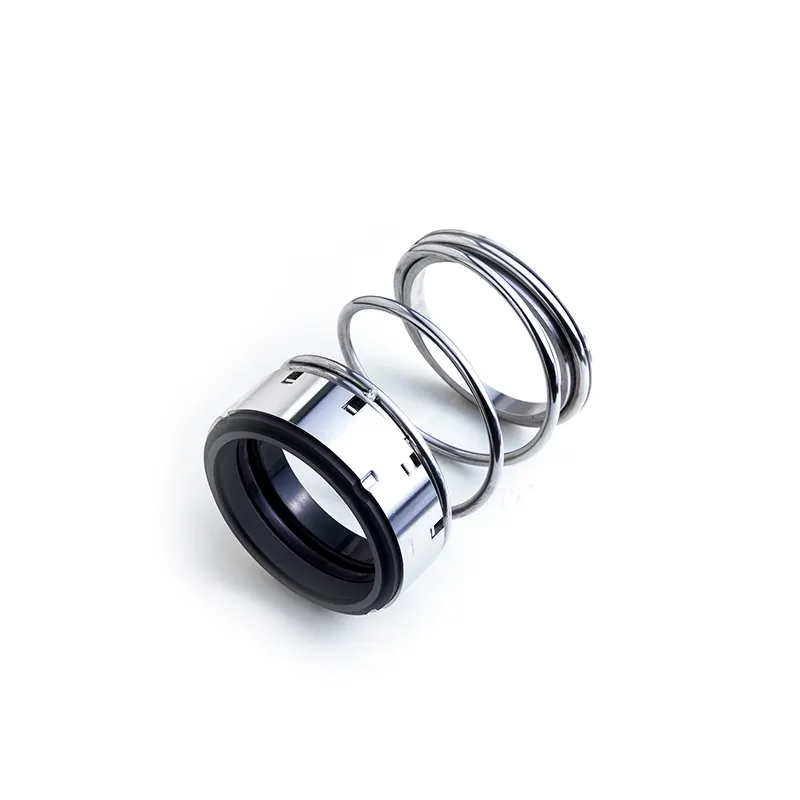

Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-5

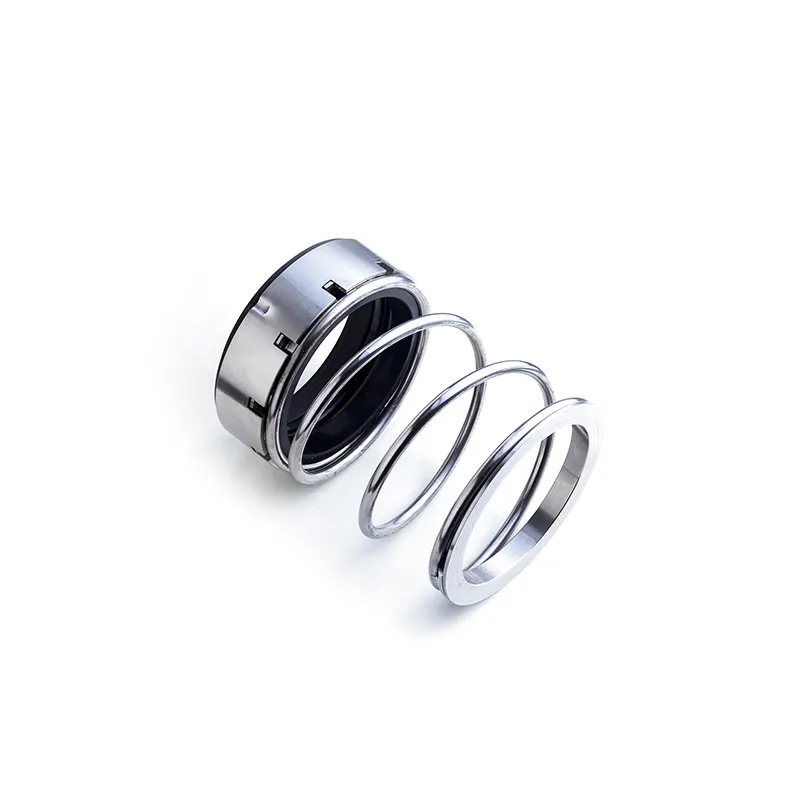

Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-6
undefined
undefined
Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-9
undefined
Lepu-Find John Crane Mechanical Seal 502 John Crane Seals Distributor From Lepu-11





Company Features
1. The john crane mechanical seal Which Meet People's Requirements In Pursuit Of Good Taste Life. Choose From Lepu Machinery Website, You Will Never Be Disappointed. - Guangzhou Lepu Machinery CO., LTD owns manufacturing facilities.
2. Guangzhou Lepu Machinery CO., LTD has complete test measures and high-qualified employees.
3. There is strict testing for quality of john crane seals to make satisfying products for customers. - Guangzhou Lepu Machinery CO., LTD make every effort to have john crane mechanical seal spare parts in this john crane mechanical seal catalogue. Check it!
