Breathable eagleburgmann mechanical seal eagleburgmann get quote high pressure

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
MG1/MG12/MG13
Shaft size:
10-100mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
1 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. The design of Lepu burgmann m7n mechanical seal involves many aspects. It mainly includes process mechanics, structural dynamics, process dynamics, stability, and CAD/CAM integration. During the operation, Lepu seals enjoy higher precision
2. Guangzhou Lepu Machinery CO., LTD says it will strengthen the sales network in the future. The seal face uses high quality SSIC for stationary and rotary
3. The product is highly energy efficient. When it is not in use, it can automatically stand by to help minimize power consumption. Lepu seal is extreme corrosion resistance
4. The product features a long service life. With a full-shield design, it can effectively avoid leakage problems such as engine oil leakage. Lepu ensures that the product quality and appearance are same to the original


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical

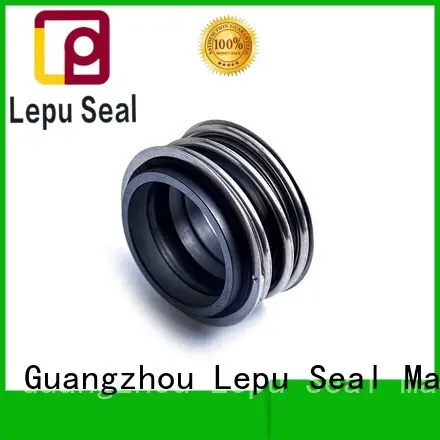

Burgmann mechanical seal MG1/MG12/MG13 is a famous elastomer bellows seal widely used in many kind of industry, like Process industry, Chemical industry, Pulp and paper industry, Water and waste water technology, Food and beverage industry, Sugar industry, and so on.

The MG1 can also be used as a multiple seal in tandem or in a back-to-back arrangement. Installation proposals available upon request.

And for different using, there several type of the rubber tail, a middle long tail is MG12 mechanical seal, and longest tail is MG13 type. Please choose the right type tail when buying this burgmann mechanical seal MG1 type.



PRODUCT ADVANTAGE

bg



1
1
100% same replacement for burgmann MG1/MG12/MG13
1
1
Different type Top quality material for seal face, matching clients running request
1
1
Different type rubber for different working liquid
1
1
Different color rubber is available according client’s request, like green, black, brown.



Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-1
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-2
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-3
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-5
  • ◪  For plain shafts

  • ◪  Single and dual seal

  • ◪  Elastomer bellows rotating

  • ◪  Unbalanced

  • ◪  Independent of direction of rotation

  • ◪  No torsion on bellows



PRODUCT TECHNICAL DRAWING

bg


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-6



SHAFT SIZE LIST

bg


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-7


Working Range:

Pressure: p1 = 16 bar (230 PSI),
vacuum ... 0.5 bar (7.25 PSI),
up to 1 bar (14.5 PSI) with seat locking
Temperature:
t = -20 °C … +140 °C
(-4 °F … +284 °F)
Sliding velocity: vg = 10 m/s (33 ft/s)
Admissible axial movement: ±2.0 mm



PRODUCT APPLICATION

bg


◪  Process industry

◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Food and beverage industry

◪  Sugar industry

◪  Chemical standard pumps

◪  Helical screw pumps

◪  Stock pumps

◪  Circulating pumps

◪  Submersible pumps

◪  Water and waste water pumps


Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-8
Lepu-High Quality Unbelievable Price High Quality Burgmann Mechanical-9



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
