    ----------Bellows mechanical seal for Ceramic coated face pillar marine pump seal US2----------

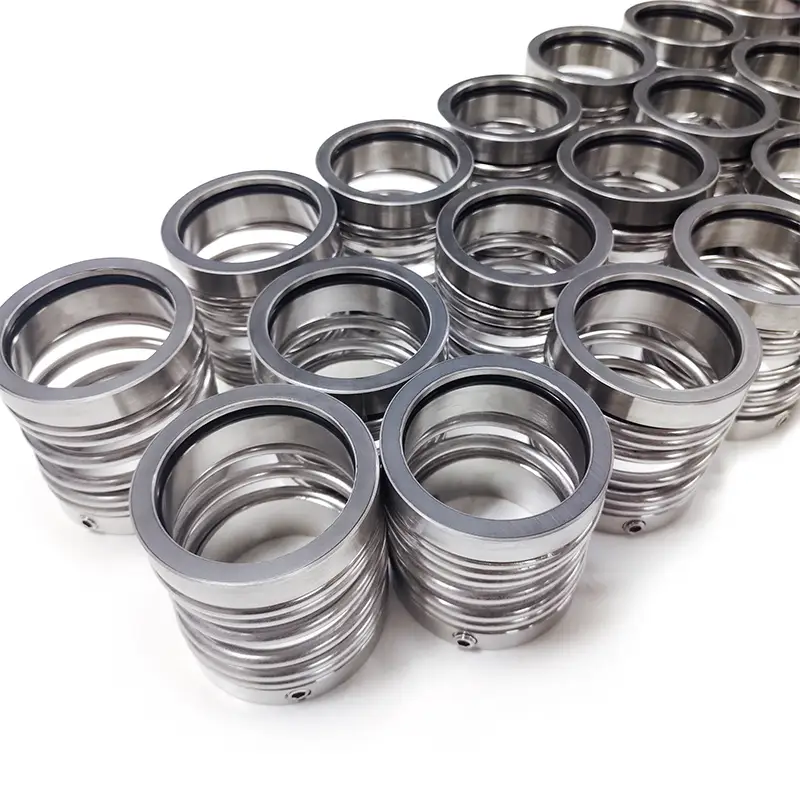

    Pillar marine mechanical seal is a special desinged mechanical seal for marine pump. Pillar seal is widely used for big sea ship pump,This pillar seal is designed to have dimensions meeting the corresponding requirements of standards establi shed by Japanese Marine Equipment Association.

    In order to prevent corrosion by sea water, it is furnished with mating face of plasma flame fusible ceramics. So it is a Pillar marine pump seal with ceramic coated layer on the seal face, offer more resistance against sea water.



    As a leading professional mechanical seal supplier, Lepu seal manufacture this pillar marine pump mechanical seal US for many shipping companies, and are very professional and have enough experience for this marine pump seal.


    BELLOWS MECHANICAL SEAL FEATURES
    b
    product-Lepu Seal-img
    LP-US2
    product-Lepu Seal-img
    LP-US2
    product-Lepu Seal-img
    Standard

    This seal is designed to have dimensions meeting the corresponding requirements of standards establi shed by Japanese Marine Equipment Association.

    product-Lepu Seal-Bellows mechanical seal for Ceramic coated face pillar marine pump seal US2-img
    Prevent corrosion by sea water

    A marine pump seal with ceramic coated layer on the seal face, offer more resistance against sea water.

    product-Lepu Seal-img
    Good abrasion resistance

    The surface is coated for increased wear resistance

    product-Bellows mechanical seal for Ceramic coated face pillar marine pump seal US2-Lepu Seal-img-1
    Unique

    The column type marine mechanical seal is a mechanical seal specially designed for marine pumps.

    PRODUCT TECHNICAL SPECIFICATION
    bg
    product-Lepu Seal-img-1



    Bellows mechanical seal for Ceramic coated face pillar marine pump seal US2

    • Brand Name
       LEPU
    • Place of Origin
      China
    • Model Number
      LP-US2
    • Shaft size
      20-130mm
    • Elastomer
               NBR,EPDM,VIT,Aflas,FEP,FFKM
    • Face                      Carbon,SIC,TC

    • Seat
                         Ceramic,SIC,TC
    • Medium                 water,oil,acids,alkali,etc
    • Spring and Metal Part   Stainless steel
    • Temperature          -20℃--200℃
    • Pressure                ≤2.5Mpa
    • Speed                      ≤18m/s
