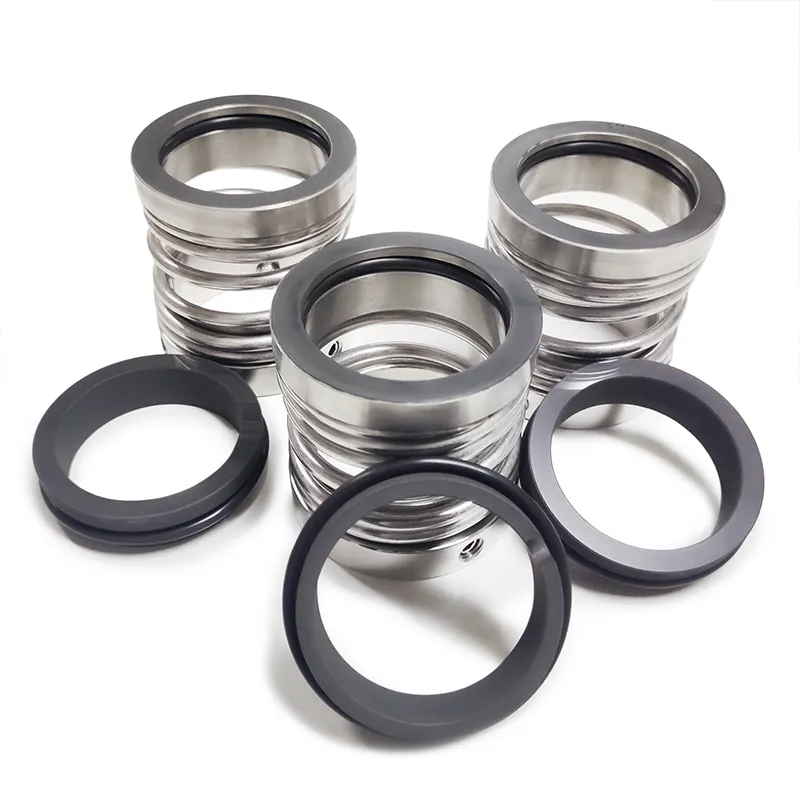

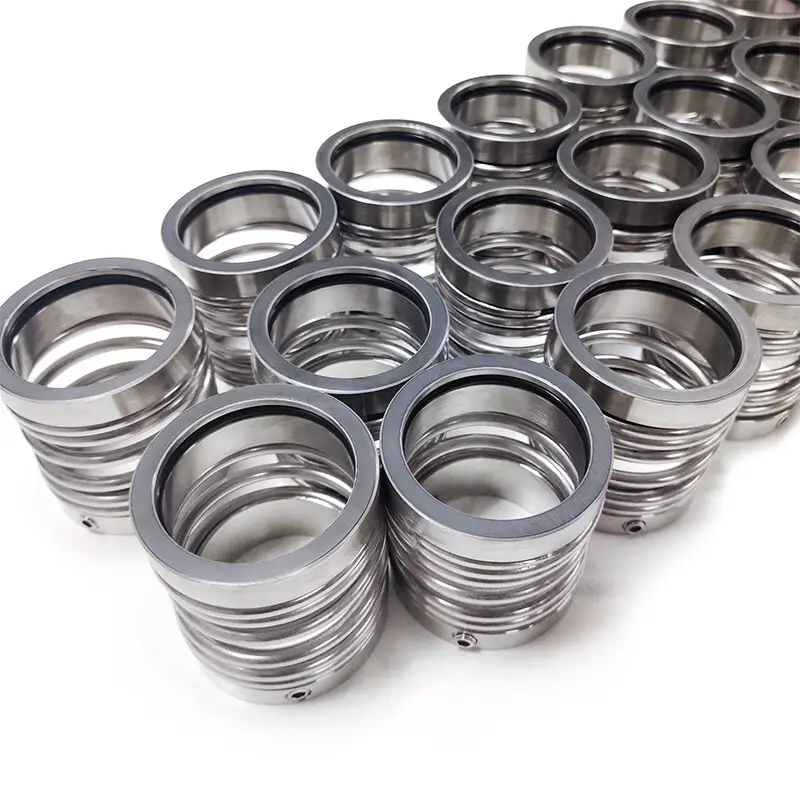

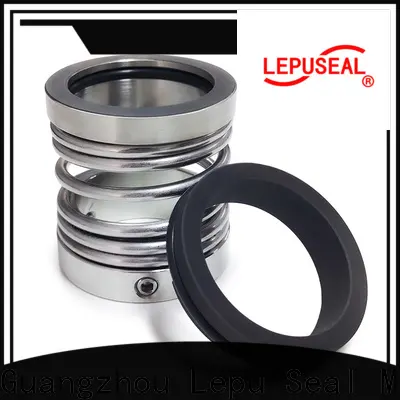

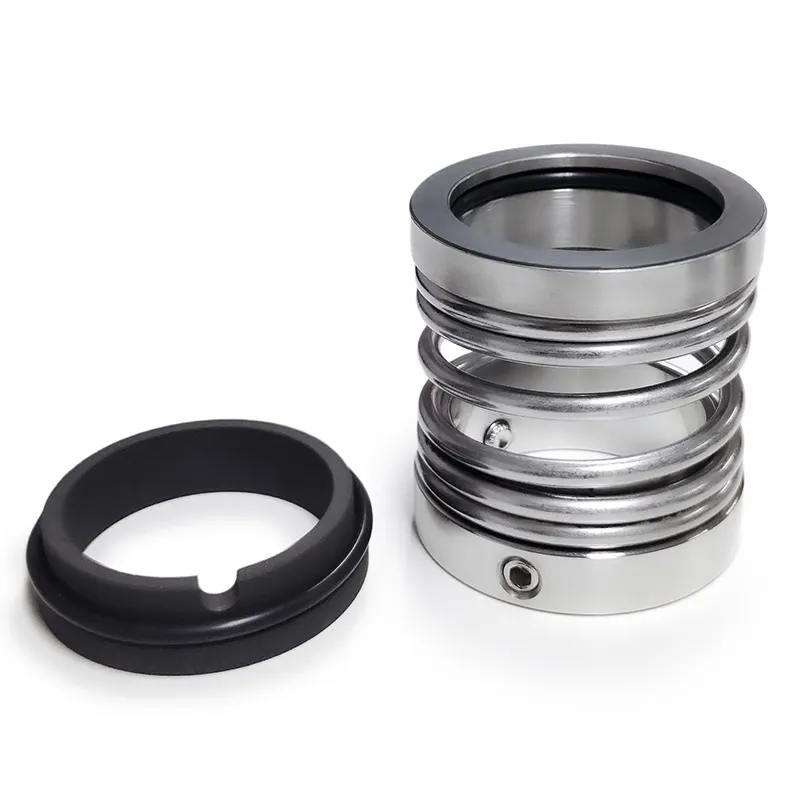

----------Bellows mechanical seal for Ceramic coated face pillar marine pump seal US2----------
Pillar marine mechanical seal is a special desinged mechanical seal for marine pump. Pillar seal is widely used for big sea ship pump,This pillar seal is designed to have dimensions meeting the corresponding requirements of standards establi shed by Japanese Marine Equipment Association.
In order to prevent corrosion by sea water, it is furnished with mating face of plasma flame fusible ceramics. So it is a Pillar marine pump seal with ceramic coated layer on the seal face, offer more resistance against sea water.
![uploads/www.lepuseal.com/images/16869706545809.png image.png]()
As a leading professional mechanical seal supplier, Lepu seal manufacture this pillar marine pump mechanical seal US for many shipping companies, and are very professional and have enough experience for this marine pump seal.
BELLOWS MECHANICAL SEAL FEATURES
b
Standard
This seal is designed to have dimensions meeting the corresponding requirements of standards establi shed by Japanese Marine Equipment Association.
Prevent corrosion by sea water
A marine pump seal with ceramic coated layer on the seal face, offer more resistance against sea water.
Good abrasion resistance
The surface is coated for increased wear resistance
Unique
The column type marine mechanical seal is a mechanical seal specially designed for marine pumps.
PRODUCT TECHNICAL SPECIFICATION
bg
Bellows mechanical seal for Ceramic coated face pillar marine pump seal US2
- Brand Name
- LEPU
- Place of Origin
- China
- Model Number
- LP-US2
- Shaft size
- 20-130mm
- Elastomer
- NBR,EPDM,VIT,Aflas,FEP,FFKM
Face Carbon,SIC,TC
- Seat
- Ceramic,SIC,TC
- Medium water,oil,acids,alkali,etc
- Spring and Metal Part Stainless steel
- Temperature -20℃--200℃
- Pressure ≤2.5Mpa
- Speed ≤18m/s
WHO IS LEPUSEAL FACTORY?
bg
1
1
professional mechanical seal manufacturer from china
1
1
focus on mechanical seal since 1998
1
1
cover many mechanical seal product range
1
1
stable quality with reasonable price
1
1
fast delivery with online service after sale
1
1
responsible and efficient
Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
