Lepu Seal Breathable seal valve free sample for high-pressure applications

Brand Name:
LEPUSEAL
Place of Origin:
China
Model Number:
WB3
Shaft size:
25mm
Avaiable material:
Ceramic/SIC/SS316/SS304/NBR/EPDM/PTFE
Certification:
ISO,SGS,TUV,Patent certificate of LIP CARTRIDGE SEAL
OEM/ODM Availability:
YES
Package:
CARTON OR WOOD BOX
Delivery Time:
5-30DAYS
Start Port:
GUANGZHOU,SHENZHEN
Supply Ability:
1000 Set/ Month
MOQ:
1SET
Payment Terms:
T/T,L/C,WESTERN UNION,ALIPAY
Inquiry

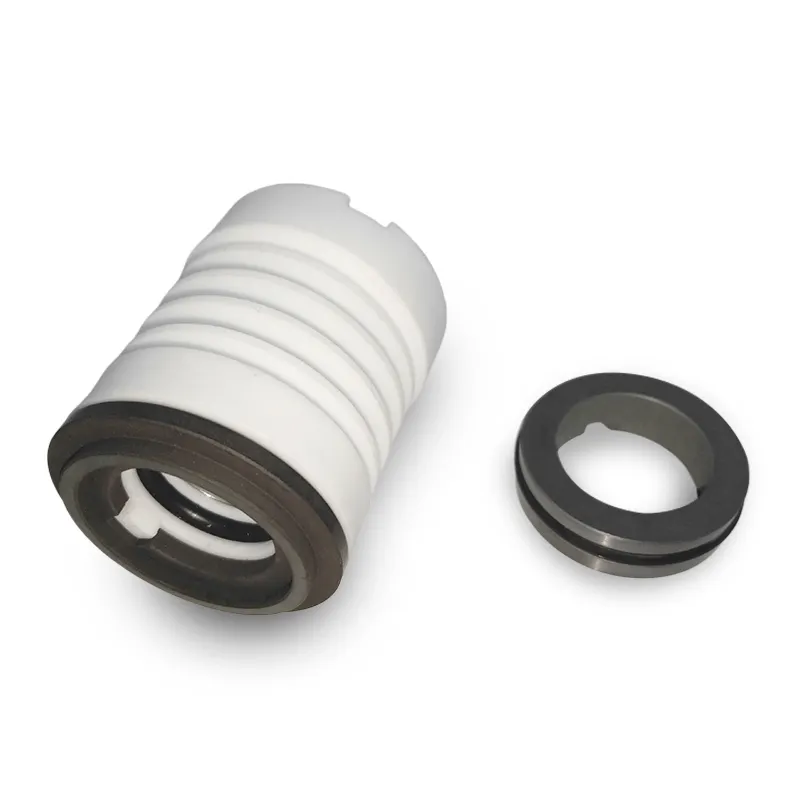

 WB3 25MM PTFE Bellow Seal Teflon Bellow Mechanical Seal - Lepu Seal


Lepu teflon bellow mechanical seal supplier


The PTFE Bellow Seal is a specialized type of mechanical seal used in various industries to prevent leakage and maintain the integrity of equipment. Made from polytetrafluoroethylene (PTFE), this seal consists of a series of convoluted bellows that provide exceptional flexibility and resilience. The PTFE material offers excellent chemical resistance, making it ideal for applications involving corrosive fluids or gases. Moreover, its low friction coefficient ensures smooth operation, minimizing wear on rotating shafts. The bellow design allows for axial movement while maintaining a tight seal, compensating for thermal expansion and vibration that can occur during operation. With its unique properties and construction, the PTFE Bellow Seal provides reliable sealing performance even under demanding conditions encountered in pumps, compressors, mixers, and other industrial machinery.


Replacement of John Crane WB3, PTFE bellows design, outside mounted, used in strong corrosive chemical occasions. The WB3 series uses PTFE(teflon) bellows and adopts a multi-spring structure design. The WB2 type spring is protected by a perfluoroethylene cover.

This mechanical seal is widely used in petroleum, chemical industry, oil refining, papermaking, pharmaceutical, electric power, automobile and other industries.

In order to keep high level ability against corrosive medium, Lepu seal use 100% virgin Teflon(PTFE) raw material for the ptfe bellows, skilled workers machined the ptfe bellows seal WB3 by high precision CNC machine.



We offer below service:

    1. OEM/ODM serivce

    2. Free sample mechanical seal

    3. Customized mechanical seal production.

    4. Quality guarantee.

    5. Technology support and training service for mechanical seal.

    6. Mechanical seal trouble shoot service

If it is not the one you need, you can pass us your drawing, material, shaft size for quotation. Small order for mechanical seal WB is acceptable.

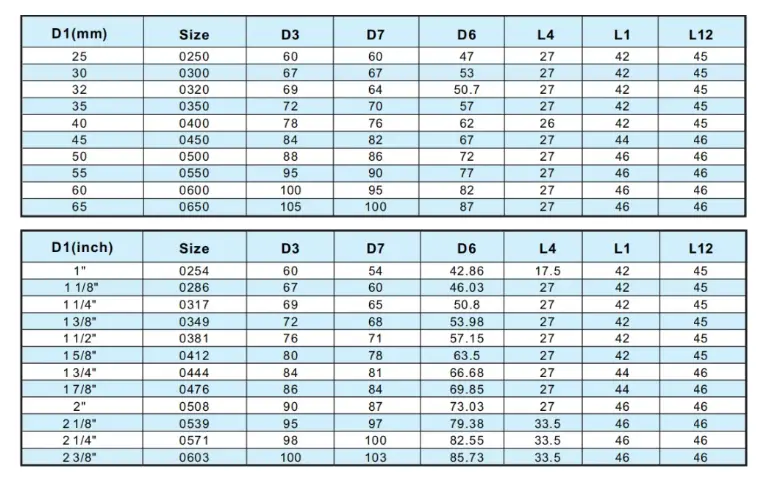

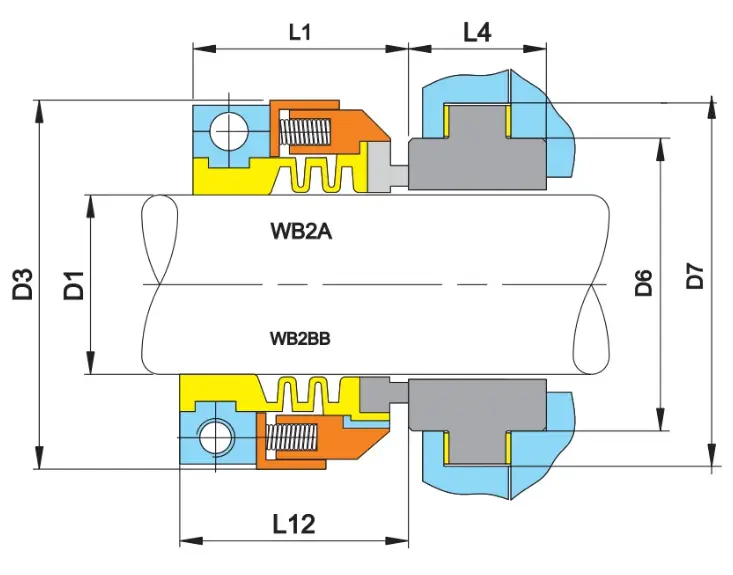

Drawing & Dimension Of LP WB3



...
...
Technical Specification of WB3 PTFE Bellow Seal
product-Lepu Seal-img
  • TYPE
    LP WB3
  • SHAFT SIZE
    25mm
  • Temperature
    -20~120℃
  • Speed
    10 m/s
  • Pressure
    5 bar
  • Stationary ring
    Ceramic/SIC/SIC
  • Rotary ring
    Ceramic/SIC/SIC
  • Secondary seal
    NBR/EPDM/PTFE
  • Spring and metal part
    Stainless steel

 Advantages Of LP WB3
1
1
100% virgin ptfe material.
1
1
100% same with original design
1
1
Factory Price,High Quality ,Fast Delivery and Best Service.
1
1
For use with extremely corrosive chemicals
1
1
Accept small order, only need 1pcs quantity.
1
1
OEM and Customized products is welcomed.

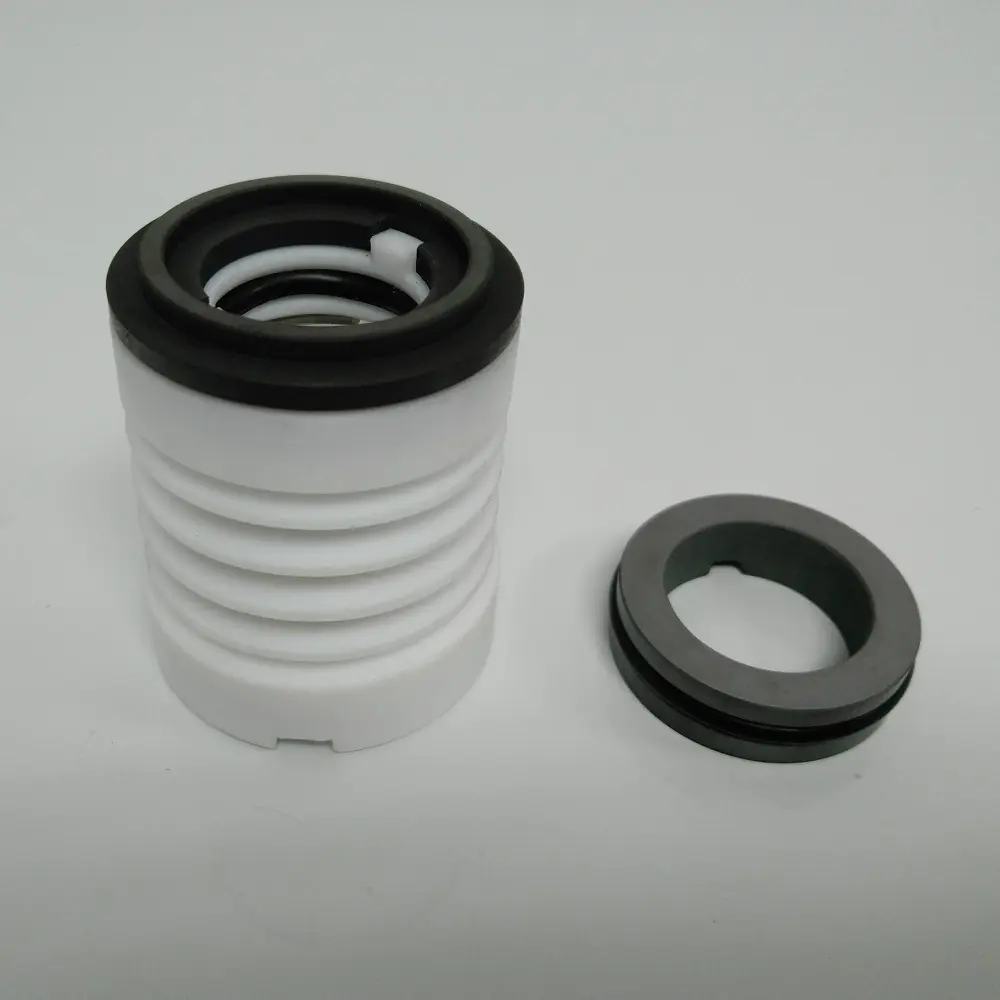

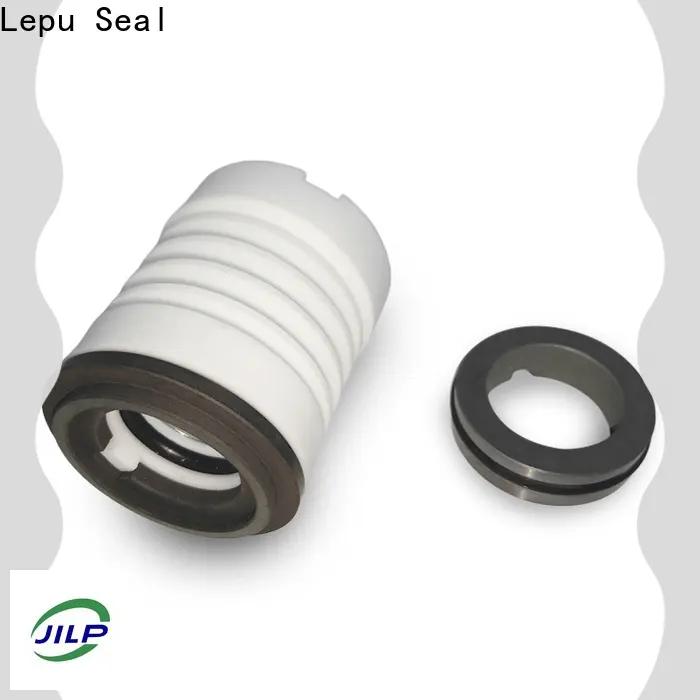

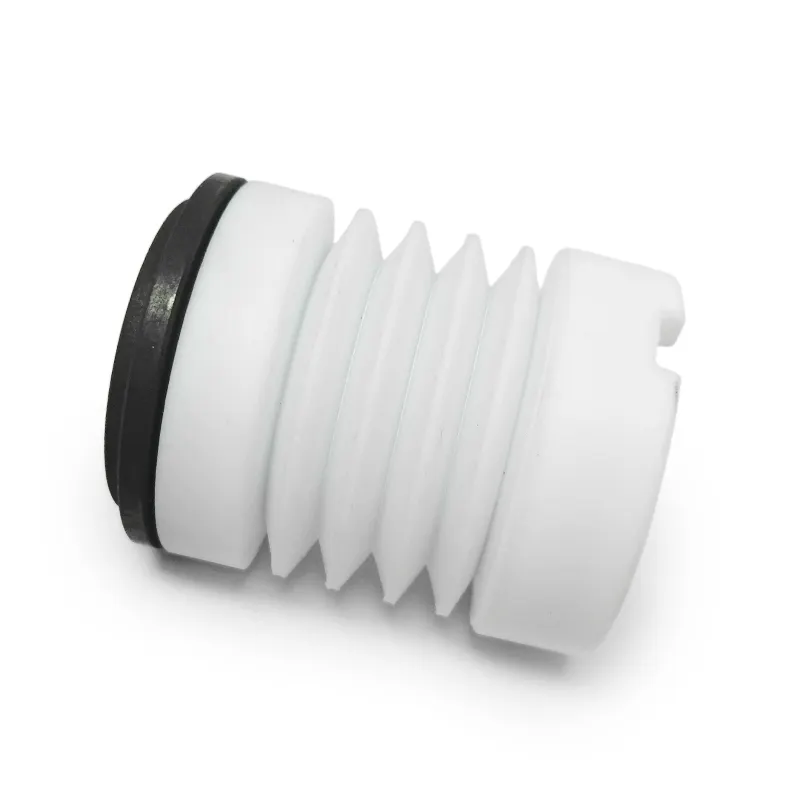

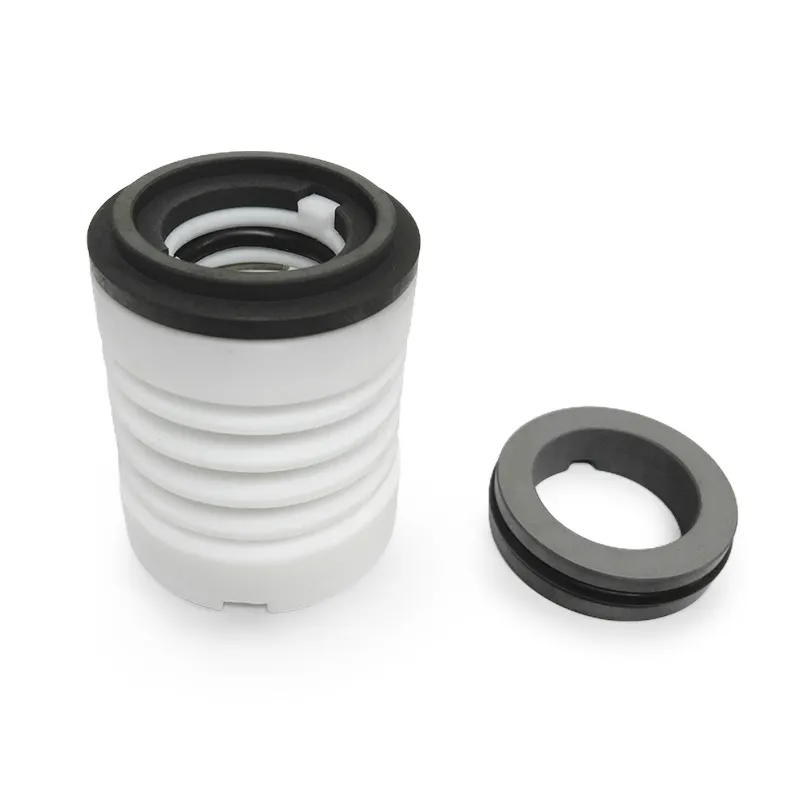

Pictures Of LP FS-120


product-Lepu Seal-img
product-Lepu Seal-img




Lepu Seal mechanical seal manufacturer & supplier can provide OEM service.

We are a mechanical seal manufacturer with 25 years of production experience since 1998 in China.


We have still more teflon bellow seal. and we support OEM!
