Lepu Seal Bulk buy custom cartridge mechanical seal for business bulk buy

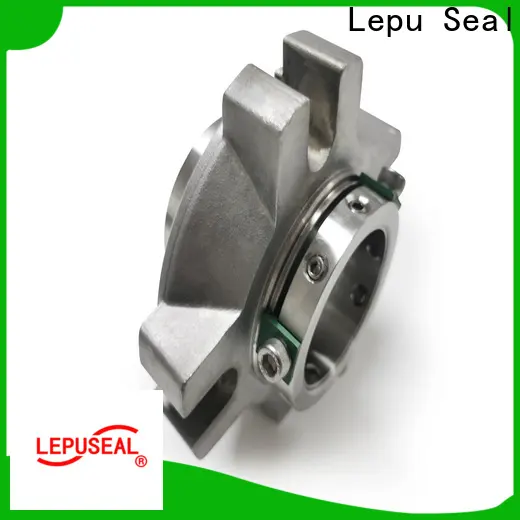

John crane 4610 is one single cartridge seal, widely used in many pumps.

• Running face design optimized using proprietary computer simulation program technology.

• Premium-grade carbon and silicon carbide are standard.

• Robust pin drive provides positive torque transmission.

• Hydraulically balanced for optimal performance.

• Non-clogging, crest-to-crest wave spring

• Less prone to corrosion problems

• Uniform face loading

• Unique centralizing ring eliminates setting clips and prevents component damage from over-compression during seal fitting.

• Compact cartridge design with precise investment cast gland plate design.

• Four-bolt gland accurately sets the seal axially and radially.

• Large flush connection drilling ensures optimum flow and allows seal chamber venting for horizontal and vertical applications.

• Factory-preset and pressure-tested assembly.

lepu seal is a professional manufacturer for mechanical seal since 1998, now it is one leading seal supplier in china.

in the past 20years, lepu seal have top reputation in local and overseal market, provide many kinds of mechanical for our clients.

Advantage introduction:competitive price+ fast delivery+top after-sale service

• ◪ Standard or Nonstandard: Standard

• ◪ Model Number: Burgmann cartex single seal

• ◪ Sealing Face: Carbon, SSIC, Tungsten carbide

• ◪ Secondary Sealing Combination:NBR, EPDM, VITON

• ◪ Sealing Frame:stainless steel SS316 OR SS304

• ◪ Working Temperature:-40 - 200 °C, depnes on material

• ◪ Working pressure: ≤ 25MPA

• ◪ Axial movement:±1.0 mm

CARTEX DATA AND DRAWING:

CARTEX SEAL DIMENSTION LIST

◪ perfect cartridge mechanical seal for many type pumps, agitator, mixers.

◪ a perfect replacement of original EAGLEBURGMANN CARTEX SINGLE mechanical seal.

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
