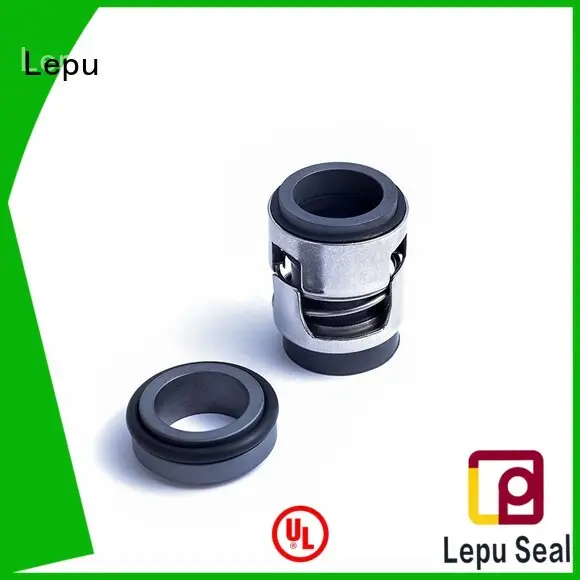

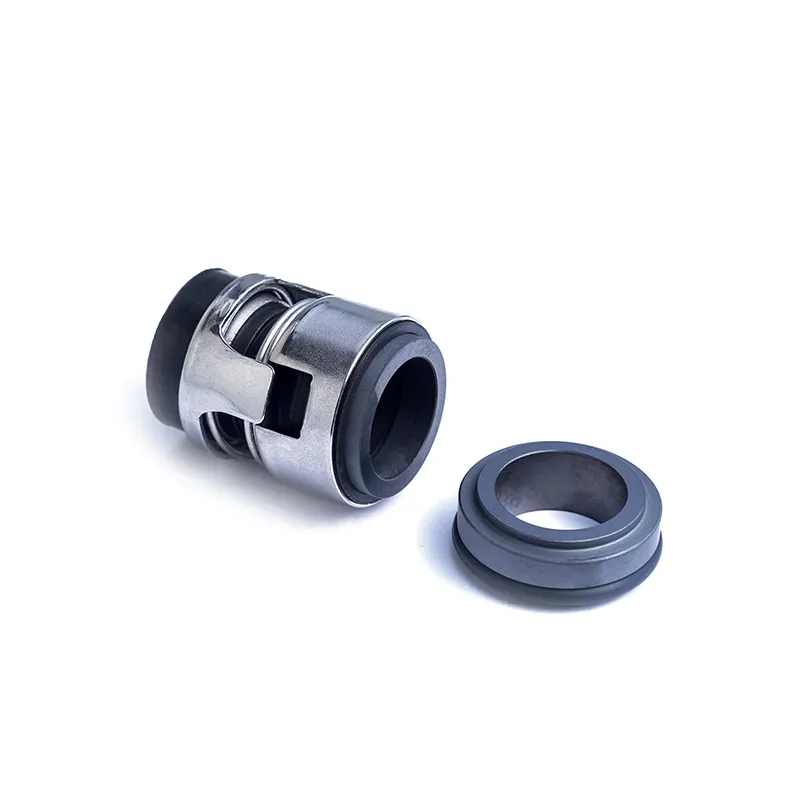

Lepu holes grundfos pump mechanical seal customization for sealing joints

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-A
Shaft size:
12,16mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
10000 set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Enterprise Strength
  • LEPU SEAL is capable of providing customers with high-quality products and thoughtful services relying on the professional service team.
Company Advantages
1. Lepu grundfos pump mechanical seal is designed by using the finest material and leading technology.
2. This product requires less maintenance. It is designed so that it can work for long periods of time without causing severe wear and tear.
3. Thanks to its maintenance and easy control, the product can significantly reduce the need for labor, which will directly cut down labor costs.
4. The major advantage of this product is that it greatly improves automation. It removes the need for too many operators to finish tasks.


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a

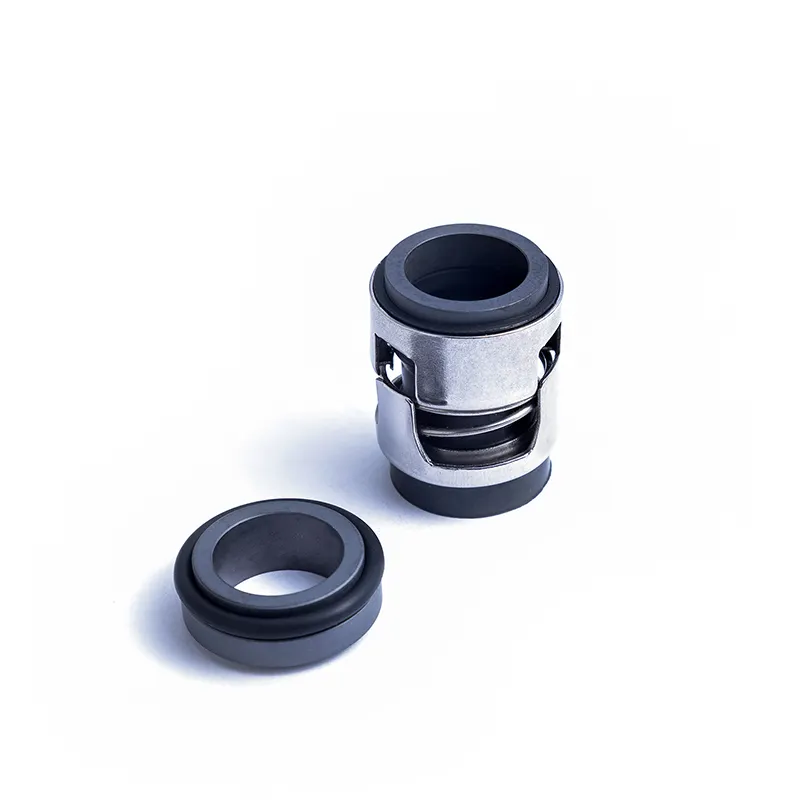

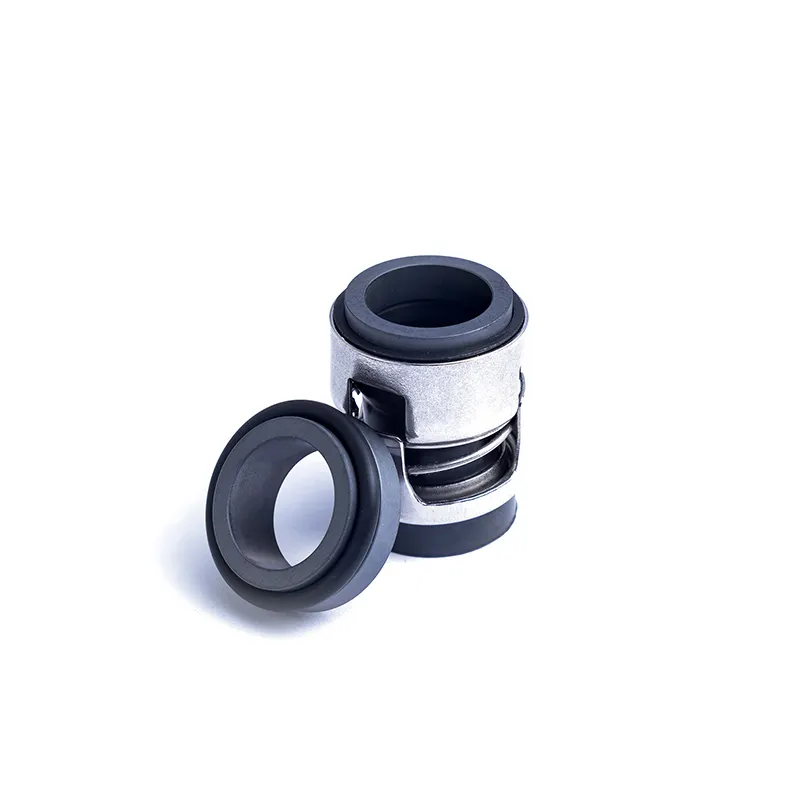

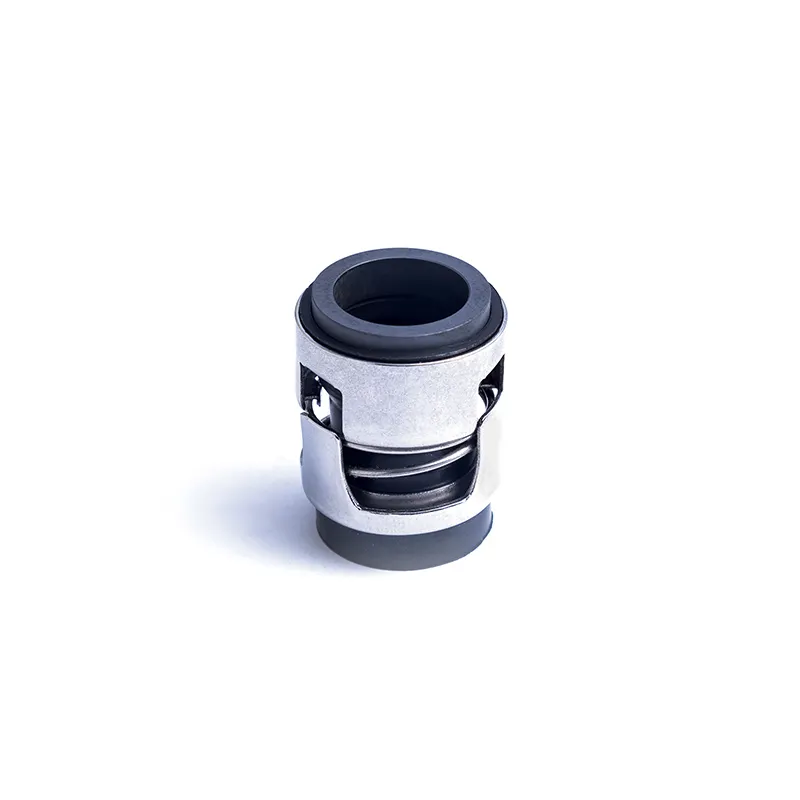

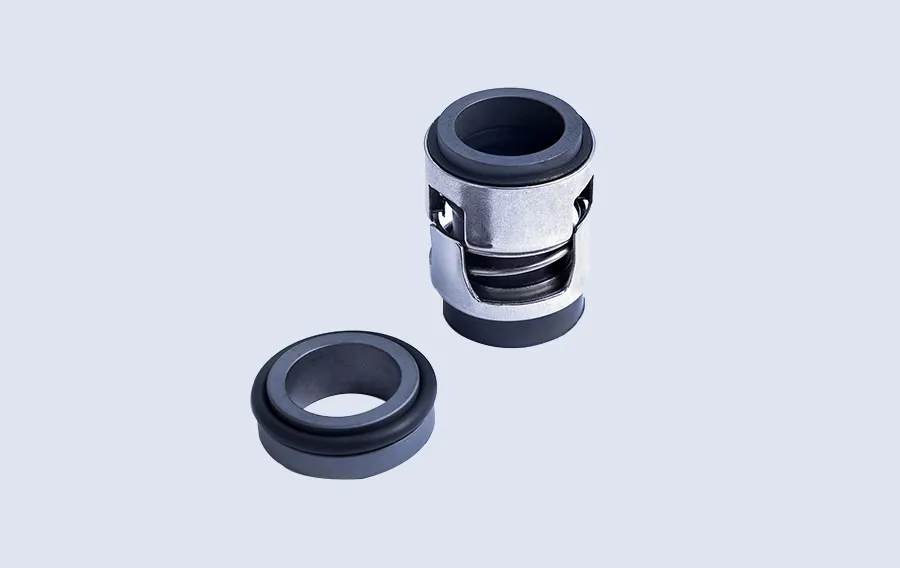

Rubber Bellow Grundfos Mechanical Seal GRF-A is a replacement seal, working for grundfos Multistage Centrifugal Pumps. As a professional mechanical seal manufacturer, lepu seal factory 100% follow original grundfos design for this mechanical seal, and make sure perfect fit for grundfos CR / CRI / CRN Series Vertical Multistage Centrifugal Pumps.

This Grundfos Mechanical Seal with rubber bellows design, offering perfect seal ability for the pump. The rotary and stationary seal face can choose carbon or silicon as material, and use epdm or viton as rubber seal part.

If you donot know what size for what grundfos pump, please check the below data or contact us our sales, and get professional suggestion.



PRODUCT ADVANTAGE

bg



1
1
Top quality material for the frame and bellows
1
1
Long and short tail(foot) are all available
1
1
Competitive price with fast delivery for this seal
1
1
100% replacement for grundfos seal



Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-1
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-2
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-3
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-5
  • ◪ Temperature:-30℃ to 200℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel

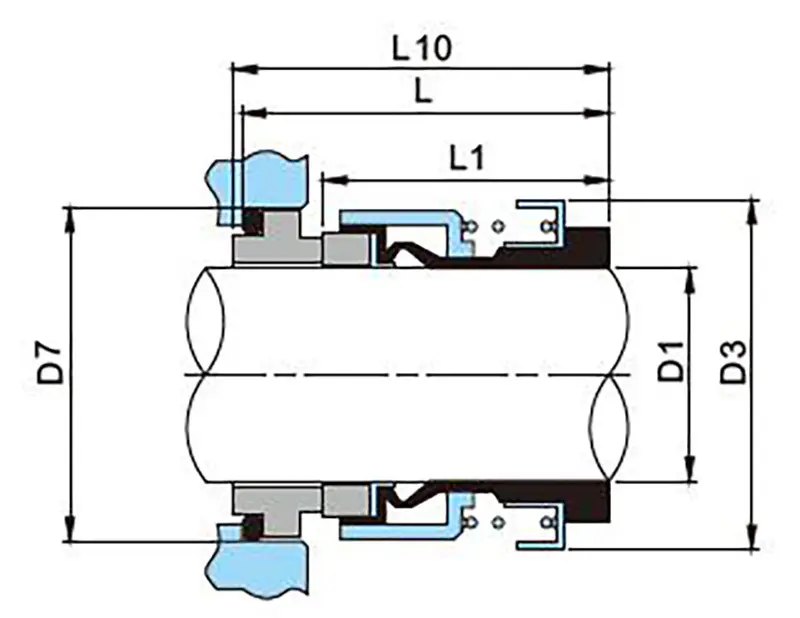

PRODUCT TECHNICAL DRAWING

bg


GRF-A rubber bellow seal

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-6


Specification and size

Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-7



PRODUCT APPLICATION

bg


◪  12mm shaft seal:

◪  Part number should be 405096, 405347, 405347TC

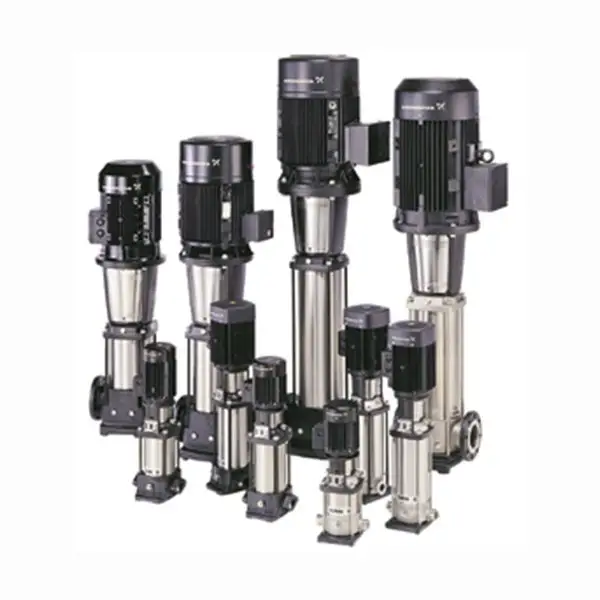

◪  Fit for Pump Models CR2, CRN2 (S), CR4, CRN4 (S), CR8,

◪  16mm shaft seal, part number is 425763, 425672, 425672TC.

◪  Fit for Pump Models CR8, CRN 8 (S), CR16, CRN16 (S)

◪  Also working for  grundfos CH, CHI ,CHE pump.


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-8



DISPLAY DIAGRAM

bg

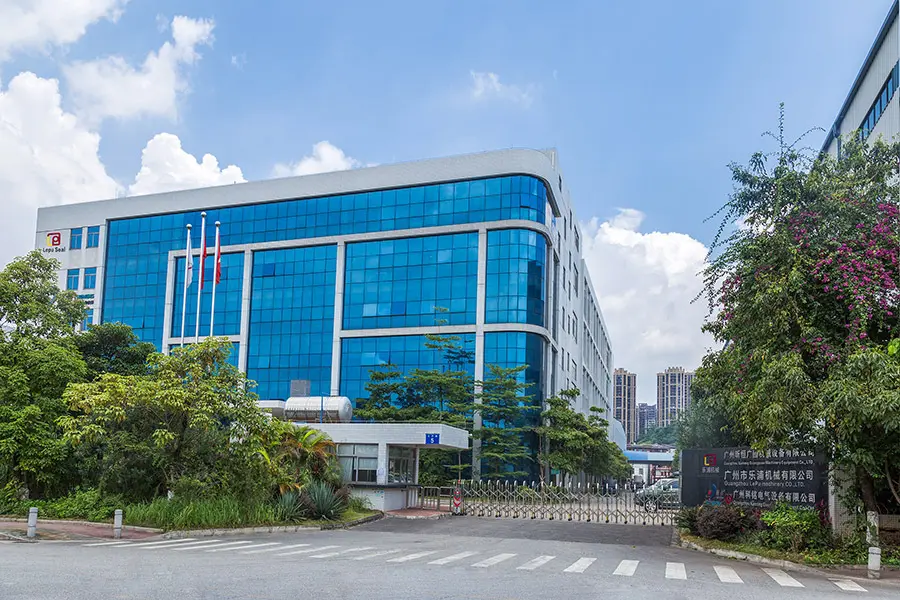

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-9


Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-10
undefined
undefined
Lepu-Professional Rubber Bellow Grundfos Mechanical Seal Grf-a-13
undefined
undefined





Company Features
1. As we evolved over the years, Guangzhou Lepu Machinery CO., LTD has been recognized to be reliable in providing quality Mechanical Seal for Grundfos Pump that is beyond industry standards.
2. Supported by strong technical strength, Lepu always provides grundfos pump mechanical seal with outstanding quality assurance for customers.
3. Ensuring high quality for mechanical seal grundfos pump is our commitment. Inquiry! Our company is continuously analyzing the needs of the market around the world aiming to develop a full range of product applications in business, industry, education, etc. Inquiry!
