Lepu funky grundfos pump mechanical seal buy now for sealing frame

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-E
Shaft size:
12,16,22mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Details
With the pursuit of excellence, LEPU SEAL is committed to showing you unique craftsmanship in details.LEPU SEAL's Grundfos Mechanical Seal is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.
  • Lepu funky grundfos pump mechanical seal buy now for sealing frame 11
Company Advantages
1. The design procedures of Lepu grundfos pump mechanical seal are professional, including CAD shadow band, creation of prototypes, creation of castable models, and 3D wax prototype.
2. This grundfos pump mechanical seal is Mechanical Seal for Grundfos Pump and practical for kit shaft seal grundfos .
3. Guangzhou Lepu Machinery CO., LTD has a sound production base and an experienced marketing team.
4. Guangzhou Lepu Machinery CO., LTD has developed a series of grundfos pump mechanical seal products with leading domestic level.

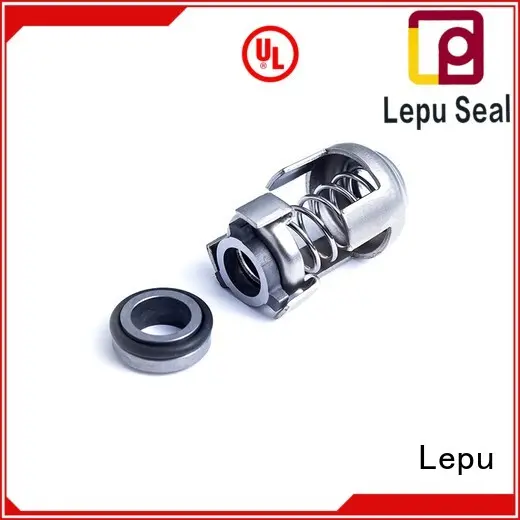

Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e


Grundfos mechanical seal GRF-E is a  pump seal which fit for grundfos pump model CRK2/CR4/CRK8/CRK16, CRK2/4 AUUV, CRK8/16 AUUV, CRK2/4

This grundfos seal is a unbalance seal with oring component, Robust O-ring seal featuring a rigid torque transmission design required for hard material pairings (WC/WC or SiC/SiC), even where lubrication is poor. The dynamic secondary seal is an O-ring. This involves a risk of wear on the shaft under the O-ring and of seal hang-up (blocking of axial movement of the rotating seal ring).

Users can choose carbon, silicon, and tungsten carbide for this mechanical seal as seal face, if for high temerperature, we suggest to choose rubber seal viton for the rubber parts.

Lepu seal make this grundfos pump seal for many years, and offer professional suggestion when client need this grundfos seal, so we are your reliable specialist for grundfos mechanical seal.



PRODUCT ADVANTAGE

bg



1
1
High density SSIC material for the seal face
1
1
Free sample available for this seal
1
1
Competitive price and fast delivery
1
1
Unbalanced seal with oring type



Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-1
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-2
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-3
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-5
  • ◪ Temperature:-30℃ to 180℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel



PRODUCT TECHNICAL DRAWING

bg


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-6


Specification and size :

12mm, 16mm, 22mm



PRODUCT APPLICATION

bg


This grundfos seal working for below pump model:

CRK2/CR4/CRK8/CRK16, CRK2/4 AUUV, CRK8/16 AUUV, CRK2/4


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-7



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-8


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-9
undefined
undefined
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-12
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD can produce a variety of grundfos pump mechanical seal .
2. Guangzhou Lepu Machinery CO., LTD is equipped with strong research strength, having an R&D team dedicated to developing all types of new grundfos seal kit .
3. grundfos mechanical seal catalogue is a declaration of the positive field of Lepu business. Inquire online! It is important to regard grundfos shaft seal as the focus of Lepu. Inquire online! Working on supplying the finest grundfos mechanical seal and professional service will facilitate Lepu to move forward. Inquire online!
