Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

Lepu flange grundfos mechanical seal get quote for sealing frame 1
Lepu flange grundfos mechanical seal get quote for sealing frame 2
Lepu flange grundfos mechanical seal get quote for sealing frame 3
Lepu flange grundfos mechanical seal get quote for sealing frame 4
Lepu flange grundfos mechanical seal get quote for sealing frame 5
Lepu flange grundfos mechanical seal get quote for sealing frame 6
Lepu flange grundfos mechanical seal get quote for sealing frame 7
Lepu flange grundfos mechanical seal get quote for sealing frame 8
Lepu flange grundfos mechanical seal get quote for sealing frame 9
Lepu flange grundfos mechanical seal get quote for sealing frame 10
Lepu flange grundfos mechanical seal get quote for sealing frame 1
Lepu flange grundfos mechanical seal get quote for sealing frame 2
Lepu flange grundfos mechanical seal get quote for sealing frame 3
Lepu flange grundfos mechanical seal get quote for sealing frame 4
Lepu flange grundfos mechanical seal get quote for sealing frame 5
Lepu flange grundfos mechanical seal get quote for sealing frame 6
Lepu flange grundfos mechanical seal get quote for sealing frame 7
Lepu flange grundfos mechanical seal get quote for sealing frame 8
Lepu flange grundfos mechanical seal get quote for sealing frame 9
Lepu flange grundfos mechanical seal get quote for sealing frame 10

Lepu flange grundfos mechanical seal get quote for sealing frame

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-E
Shaft size:
12,16,22mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Enterprise Strength
  • A comprehensive after-sales service system is established based on customers' needs. We are committed to providing quality services including consulting, technical guidance, product delivery, product replacement and so on. This enables us to establish a good corporate image.
Product Comparison
Under the guidance of market, LEPU SEAL constantly strives for innovation. Bellows Seal has reliable quality, stable performance, good design, and great practicality.Compared with products in the same category, Bellows Seal we produce is equipped with the following advantages.
  • Lepu flange grundfos mechanical seal get quote for sealing frame 11
    Lepu flange grundfos mechanical seal get quote for sealing frame 12
Company Advantages
1. Lepu Mechanical Seal for Grundfos Pump goes through elaborate design steps. They are problem definition, basic need definition, material analysis, detailed design, and preparation of drawing.
2. It has a fine hardness. It has good cracking proof capacity and is not easy to deform due to the cold stamping process during production.
3. The product is optimized to maximize profits, and at the same time minimize the impact of business operations on the environment.
4. The product is becoming more and more popular with many demands for its outstanding features.

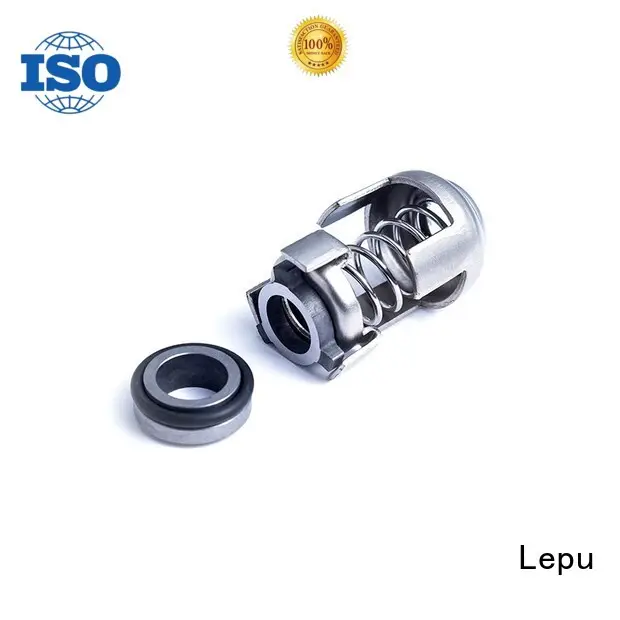

Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e


Grundfos mechanical seal GRF-E is a  pump seal which fit for grundfos pump model CRK2/CR4/CRK8/CRK16, CRK2/4 AUUV, CRK8/16 AUUV, CRK2/4

This grundfos seal is a unbalance seal with oring component, Robust O-ring seal featuring a rigid torque transmission design required for hard material pairings (WC/WC or SiC/SiC), even where lubrication is poor. The dynamic secondary seal is an O-ring. This involves a risk of wear on the shaft under the O-ring and of seal hang-up (blocking of axial movement of the rotating seal ring).

Users can choose carbon, silicon, and tungsten carbide for this mechanical seal as seal face, if for high temerperature, we suggest to choose rubber seal viton for the rubber parts.

Lepu seal make this grundfos pump seal for many years, and offer professional suggestion when client need this grundfos seal, so we are your reliable specialist for grundfos mechanical seal.



PRODUCT ADVANTAGE

bg



1
1
High density SSIC material for the seal face
1
1
Free sample available for this seal
1
1
Competitive price and fast delivery
1
1
Unbalanced seal with oring type



Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-1
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-2
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-3
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-4

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-5
  • ◪ Temperature:-30℃ to 180℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel



PRODUCT TECHNICAL DRAWING

bg


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-6


Specification and size :

12mm, 16mm, 22mm



PRODUCT APPLICATION

bg


This grundfos seal working for below pump model:

CRK2/CR4/CRK8/CRK16, CRK2/4 AUUV, CRK8/16 AUUV, CRK2/4


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-7



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-8


Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-9
undefined
undefined
Lepu-Best Long Spring O Ring Type Grundfos Mechanical Seal Grf-e-12
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD is the main developer and supplier of grundfos mechanical seal .
2. Guangzhou Lepu Machinery CO., LTD is based on market demand and relies on technological innovation.
3. With the goal of "forever exceeding customer expectations", we will continue to refine unique products and continue to lead the world with unremitting efforts and innovative ideas. Please contact. Adhering to the corporate philosophy of “Dedicating to the success of our customers”, we are united to create innovative products with global competitiveness. Please contact. We are marching forwards a more environmental-friendly and greener production way. Any production activities harming the environment will be strongly refused. We will uphold the concept of sustainable development during our production. We have established a sustainable production plan concerning the saving of resources and the cutting of emissions.
