Lepu Breathable o ring factory for water

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
M3N
Shaft size:
6-80mm
Avaiable material:
CARBON/SIC/TC/CERAMIC
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
1 day
Supply Ability:
100000set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Details
LEPU SEAL pursues perfection in every detail of Mechanical seal, so as to show quality excellence.Well-chosen in material, fine in workmanship, excellent in quality and favorable in price, LEPU SEAL's Mechanical seal is highly competitive in the domestic and foreign markets.
  • Lepu Breathable o ring factory for water 11
Company Advantages
1. Lepu o ring seal manufacturers undergoes regular inspection to achieve proper functionality.
2. This product has a precise dimension. Its manufacturing process adopts the CNC machines and advanced technologies, which guarantee its accuracy in size and shape.
3. This product features high precision. It can produce an exact result every single time and repeat the exact same task with the same level.
4. Many producers have used this product to increase their production and income. The use of this product means saving time and labor costs.

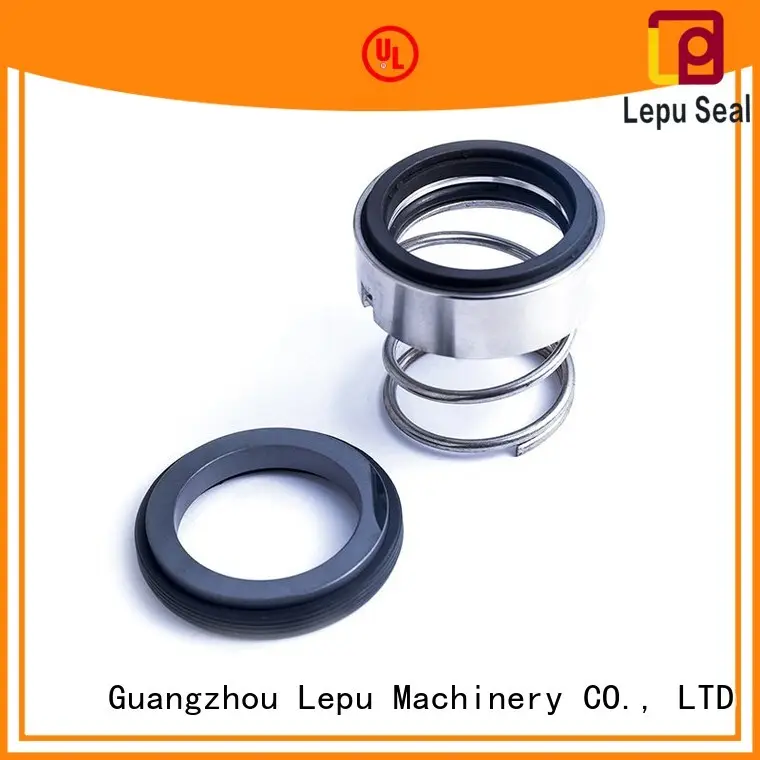

Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For


This mechanical seal is a standard seal for plain shafts, this m3n mechanical seal designed with rotating conical spring, and it is a single and unbalance seal, and it is a dependent on direction of rotation seal type

As a standard mechanical seal, burgmann m3n seal is widely used in many kinds of industry pumps, like water pumps, sewage pumps, submerged pumps, chemical pumps, and so on.



PRODUCT ADVANTAGE

bg



1
1
100% same design as a replacement for burgmann m3n mechanical seal
1
1
Different type material for seal face, matching clients running request
1
1
Top quality stainless steel SS304 for seal frame and spring
1
1
Left rotating or right rotating spring are all available in our factory



Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-1
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-2
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-3

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-4
  • ◪  Universal application opportunities

  • ◪  Insensitive to low solids content

  • ◪  No damage of the shaft by set screws

  • ◪  Large choice of materials

  • ◪  Short installation lengths possible (G16)

  • ◪  Short installation lengths possible (G16)



PRODUCT TECHNICAL DRAWING

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-5



SHAFT SIZE LIST

bg


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-6


Working Range:

Pressure: p1 = 10 bar (145 PSI)
Temperature:
t = -20 °C ... +140 °C (-4 °F ... +355 °F)
Sliding velocity: vg = 15 m/s (50 ft/s)
Axial movement: ±1.0 mm



PRODUCT APPLICATION

bg


◪  Chemical industry

◪  Pulp and paper industry

◪  Water and waste water technology

◪  Building services industry

◪  Food and beverage industry

◪  Sugar industry

◪  Low solids content media

◪  Water and sewage water pumps

◪  Submersible pumps

◪  Chemical standard pumps

◪  Eccentric screw pumps

◪  Cooling water pumps


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-7
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-8



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-9


undefined
undefined
undefined
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-13
undefined
Lepu-High Quality Conical Spring Burgmann Mechanical Seal M3n For-15





Company Features
1. With the mutual supports from our outstanding technicians and sales team, Lepu successfully create our own brand.
2. Our professional technician strictly operate machines to ensure its normal operation and produce high quality o ring .
3. Guangzhou Lepu Machinery CO., LTD has accumulated a lot of OEM and ODM customization experience. Please contact us! Lepu aims to promote exporting viton o ring . Please contact us!
