Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

Lepu Brand conditioning fit grundfos pump seal kit 1
Lepu Brand conditioning fit grundfos pump seal kit 2
Lepu Brand conditioning fit grundfos pump seal kit 3
Lepu Brand conditioning fit grundfos pump seal kit 4
Lepu Brand conditioning fit grundfos pump seal kit 5
Lepu Brand conditioning fit grundfos pump seal kit 6
Lepu Brand conditioning fit grundfos pump seal kit 7
Lepu Brand conditioning fit grundfos pump seal kit 8
Lepu Brand conditioning fit grundfos pump seal kit 9
Lepu Brand conditioning fit grundfos pump seal kit 1
Lepu Brand conditioning fit grundfos pump seal kit 2
Lepu Brand conditioning fit grundfos pump seal kit 3
Lepu Brand conditioning fit grundfos pump seal kit 4
Lepu Brand conditioning fit grundfos pump seal kit 5
Lepu Brand conditioning fit grundfos pump seal kit 6
Lepu Brand conditioning fit grundfos pump seal kit 7
Lepu Brand conditioning fit grundfos pump seal kit 8
Lepu Brand conditioning fit grundfos pump seal kit 9

Lepu Brand conditioning fit grundfos pump seal kit

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-F
Shaft size:
12,16mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Unmatched expertise of Lepu enables us to serve our clients with utmost accuracy than our industry competitors. Focus on mechanical seals for 20 years
2. The adoption of grundfos pump seal kit method can cause mechanical seal grundfos pump and satisfy production requirements. Come to check our NEW high-quality mechanical seals
3. . The grundfos mechanical seal,grundfos mechanical shaft seals which is superior to that of other products plays an important role.
4. All the grundfos pump seal are reliable in property and reputably appraised by customers. Lepu seals: small but essential


Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Seal Manufacture

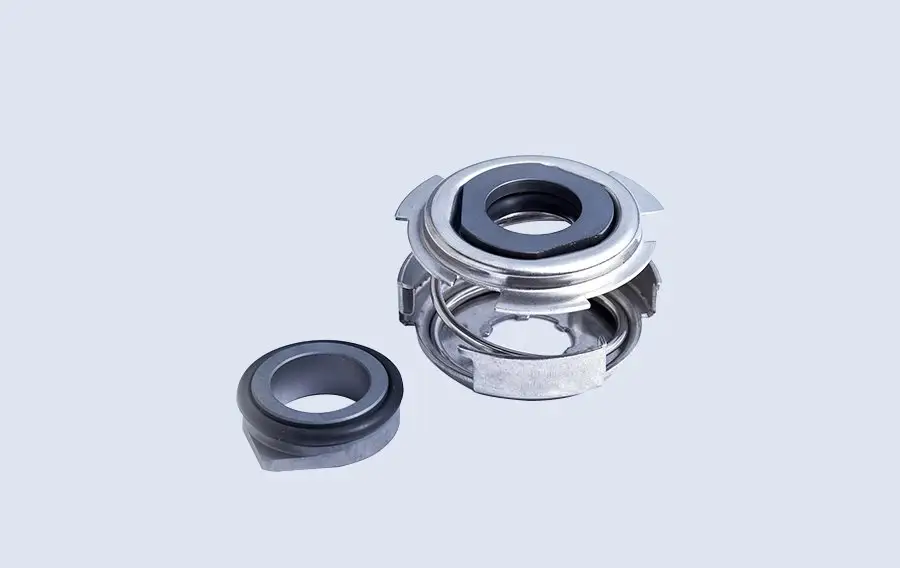

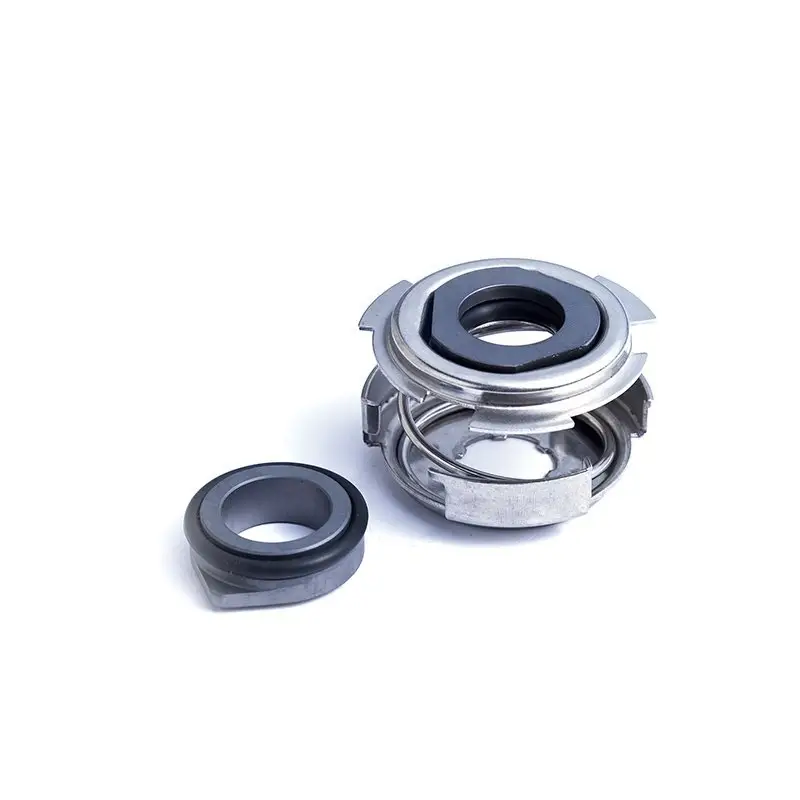

Grundfos mechanical seal GRF-E is a pump seal which fit for Grundfos CM horizontal pumps,  like CM 1/3/5, CM 10/15/25, this grundfos seal get 2 shaft size only, 12mm and 16mm.

The popular material for the seal face is carbon and silicon, those 2 material can be used for both rotary and stationary seal face, the rubber part normally use epdm or viton. Sometime use tungsten carbide for the grundfos seal ring, but the cost is higher than silicon or carbon.

Lepu seal manufacture this seal in the past years, and sell it to many countries who using grundfos pump. We are your best choice for this grundfos seal.



PRODUCT ADVANTAGE

bg



1
1
High density sintered silicon material for the seal face
1
1
Free sample available for this seal
1
1
Competitive price and fast delivery
1
1
100% replacement for original grundfos CM seal

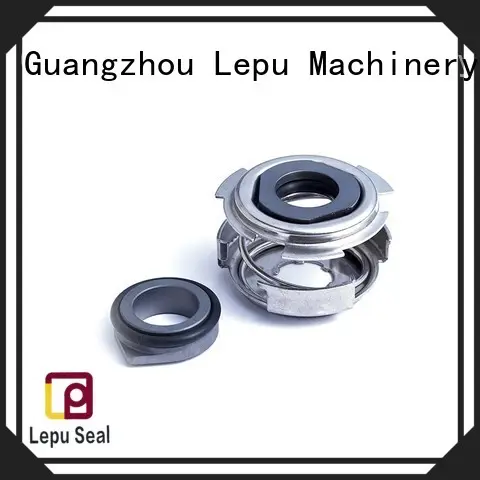

Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Seal Manufacture-1
Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Seal Manufacture-2

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


  • ◪ Temperature:-30℃ to 180℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: SSic/TC/CARBON

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel

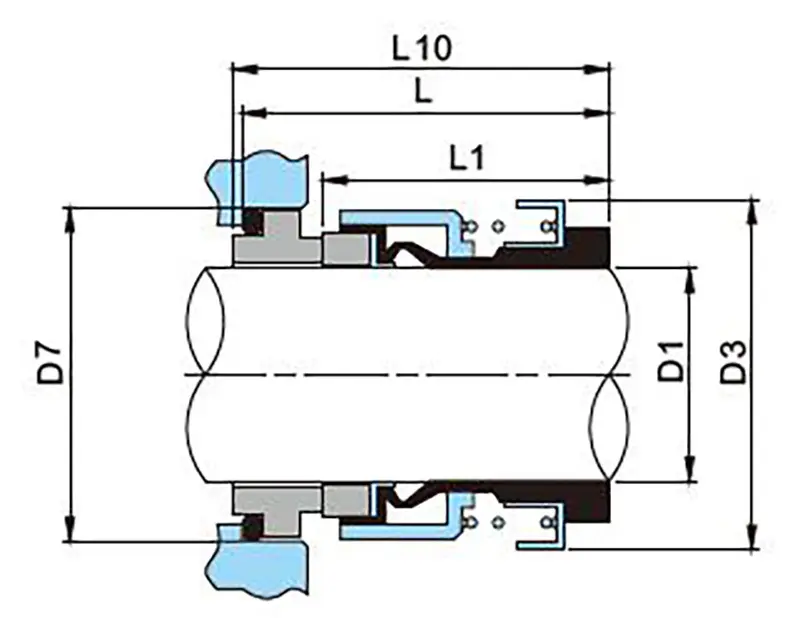

PRODUCT TECHNICAL DRAWING

bg



Specification and size :

12mm, 16mm



PRODUCT APPLICATION

bg


This grundfos seal working for Grundfos CM horizontal pumps,  Pump model:

CM 1/3/5, CM 10/15/25

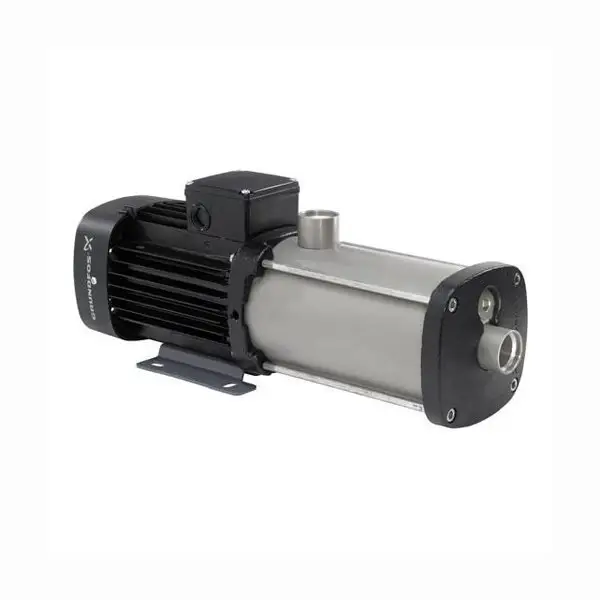

grundfos CM pump



DISPLAY DIAGRAM

bg

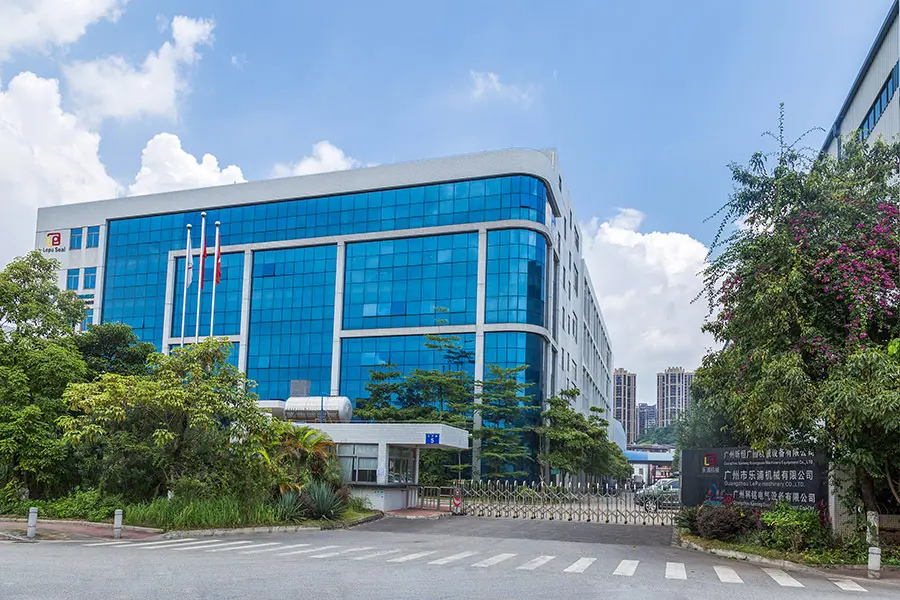

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.



Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Seal Manufacture-3
undefined
undefined
Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Seal Manufacture-6
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD owns manufacturing facilities.
2. Guangzhou Lepu Machinery CO., LTD make every effort to have grundfos pump seal kit in this grundfos mechanical seal. Welcome to visit our factory!
