latest Metal Bellows Seal teflon bulk production for high-pressure applications

Brand Name:
LEPU
Place of Origin:
GUANGDONG, CHINA
Model Number:
WB3
Shaft size:
25mm
Avaiable material:
ptfe, teflon, carbon/sic
Certification:
ISO, SGS,
OEM/ODM Availability:
YES
Package:
CARTON BOX
Delivery Time:
30DAYS
Start Port:
GUANGHZOU,CHINA
Supply Ability:
10000SET/MONTH
MOQ:
1SET
Payment Terms:
TT,WESTERN UNION, MONEYGRAM,LC
Inquiry
Application Scope
With wide application, Mechanical seal can be used in the following aspects.LEPU SEAL always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
  • latest Metal Bellows Seal teflon bulk production for high-pressure applications 6
Company Advantages
1. It is characterized by its PTFE Bellows Seal WB2 and Bellow Type Mechanical Seal .
2. Our QC team is incorporated into every stage of the testing process to guarantee its quality.
3. The product is highly sought after by customers with an increased frequency of application.

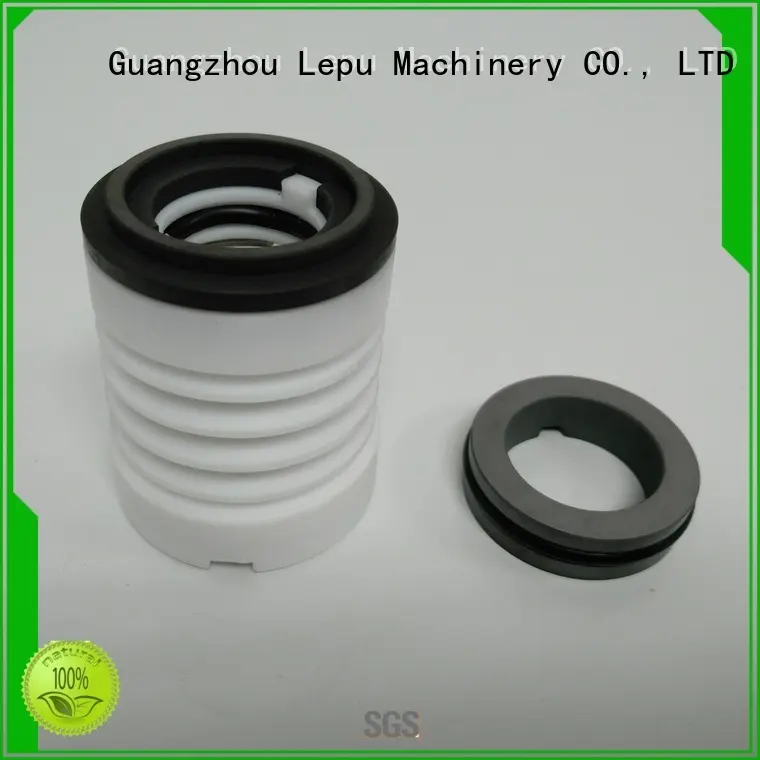

Lepu-25mm Teflon Ptfe Bellows Seal From China Leading Mechanical Seal


PTFE Bellows mechanical seal WB3 is designed with externally PTFE(teflon) bellows mechanical seals Type for extreme corrosion resistance applications, such as high concentrations of acids, salts, strong oxidizing and reducing agents and chemically active organic compounds.

For use with extremely corrosive chemicals, including concentrated acids and salts, strong oxidizing and reducing agents, and chemically active organic compounds commonly used on PTFE filled pumps.

The entire seal assembly and component parts employ mechanical drive to prevent slippage on the shaft or sleeve. Seal assembly is outside mounted and internally pressurized.

In order to keep high level ability against corrosive medium, Lepu seal use 100% virgin Teflon(PTFE) raw material for the ptfe bellows, skilled workers machined the ptfe bellows seal WB3 by high precision CNC machine.



PRODUCT ADVANTAGE

bg



1
1
100% virgin ptfe raw material for ptfe bellows
1
1
High precision CNC machining Teflon bellows
1
1
Strong quality stainless steel for seal frame.
1
1
20 years experience for teflon bellows seal





PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-25mm Teflon Ptfe Bellows Seal From China Leading Mechanical Seal-1
  • ◪  PTFE bellows seals

  • ◪  Externally mounted,Independent of direction of rotation.

  • ◪ With spring protective sleeve



PRODUCT TECHNICAL DRAWING

bg




SHAFT SIZE LIST

bg



Operating Range:
◪  Temperature: -20--120℃
◪  Speed: 10m/s
◪  Pressure: 5bar
◪  Standard size: 1"--2.375"


Material:
100% virgin ptfe material



PRODUCT APPLICATION

bg


◪ Chemical and organic compounds industry

◪ Extreme corrosion resistance media
◪ Anticorrosive Pumps
◪ Other Rotating Equipment.



Lepu-25mm Teflon Ptfe Bellows Seal From China Leading Mechanical Seal-2



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-25mm Teflon Ptfe Bellows Seal From China Leading Mechanical Seal-3


undefined
undefined
undefined
Lepu-25mm Teflon Ptfe Bellows Seal From China Leading Mechanical Seal-7
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD has engaged in the developing, manufacturing and sales of PTFE Bellows Seal WB2 for years. We have a good reputation in the market.
2. We have advanced manufacturing setup. They run under a dust-proof and humidity-controlled environment and help our factory maintain optimum manufacturing conditions.
3. Our sustainability targets are consistent with our overall strategy. We adhere to an integrated sustainability strategy aligned with international standards along. We have a strong commitment to sustainable development. By utilizing the latest production technologies, we attempt to reduce emissions and increasing recycling. We drive the implementation of environmental protection policy. Take our internal footprint as an example, we have deployed appropriate clean technologies and have engaged all employees in continuous green improvements at the workplace. We continue to focus on managing our operating footprint. We are learning from best practices to increase the diversion of our waste and mitigate our greenhouse gas (GHG) emissions.
