Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

Hot wb2 Bellows seal lp85n from Lepu Brand 1
Hot wb2 Bellows seal lp85n from Lepu Brand 2
Hot wb2 Bellows seal lp85n from Lepu Brand 3
Hot wb2 Bellows seal lp85n from Lepu Brand 4
Hot wb2 Bellows seal lp85n from Lepu Brand 5
Hot wb2 Bellows seal lp85n from Lepu Brand 6
Hot wb2 Bellows seal lp85n from Lepu Brand 7
Hot wb2 Bellows seal lp85n from Lepu Brand 8
Hot wb2 Bellows seal lp85n from Lepu Brand 9
Hot wb2 Bellows seal lp85n from Lepu Brand 10
Hot wb2 Bellows seal lp85n from Lepu Brand 1
Hot wb2 Bellows seal lp85n from Lepu Brand 2
Hot wb2 Bellows seal lp85n from Lepu Brand 3
Hot wb2 Bellows seal lp85n from Lepu Brand 4
Hot wb2 Bellows seal lp85n from Lepu Brand 5
Hot wb2 Bellows seal lp85n from Lepu Brand 6
Hot wb2 Bellows seal lp85n from Lepu Brand 7
Hot wb2 Bellows seal lp85n from Lepu Brand 8
Hot wb2 Bellows seal lp85n from Lepu Brand 9
Hot wb2 Bellows seal lp85n from Lepu Brand 10

Hot wb2 Bellows seal lp85n from Lepu Brand

Brand Name:
Lepu Seal
Place of Origin:
Guangzhou, China
Model Number:
WB2
Shaft size:
25-65mm
Avaiable material:
CARBON/SSIC/TC/EPDM/CAST IRON
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
15-20 day
Supply Ability:
5000set/Month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Lepu seals can be applied to all kinds of pumps. As one of the unique feature, Metal Bellows Seal 85N successfully makes Burgmann Bellows Seal MFL 85N more popular among customers. Lepu seals can be applied to all kinds of pumps
2. Guangzhou Lepu Machinery CO., LTD, well-known for its superior quality, will provide first-class service. Lepu seals: small but essential
3. Lepu seals enjoy low maintenance costs. Bellows seal,PTFE Bellows Seal WB2 has applications in a wide range of fields, including Bellow Type Mechanical Seal.
4. . Bellows Seal Suppliers has been become a developing trend of Metal Bellows Seal,Metal Bellows Seal 85N market.
5. Lepu has gained more fame for its spectacular Burgmann Bellows Seal MFL 85N. Lepu mechanical seals create excellent quality


Lepu-Professional Ptfe Bellows Seal Wb2 From 20 Years Professional Mechanical

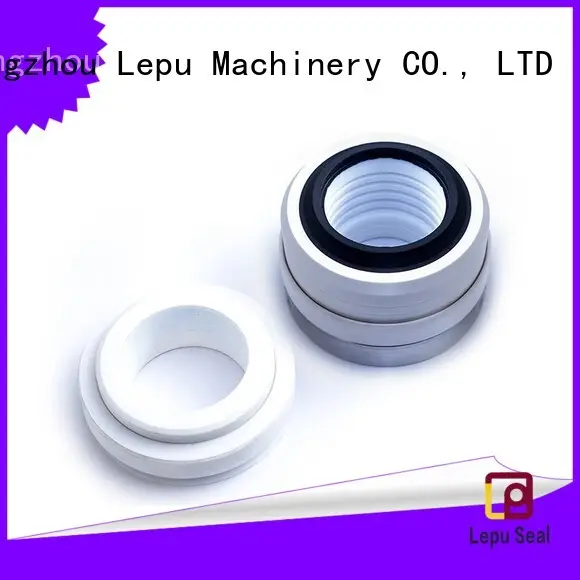

PTFE Bellows mechanical seal WB2 is designed with externally PTFE bellows mechanical seals Type for extreme corrosion resistance applications, such as high concentrations of acids, salts, strong oxidizing and reducing agents and chemically active organic compounds..

In order to keep high level ability against corrosive medium, Lepu seal use 100% virgin Teflon(PTFE) raw material for the ptfe bellows, skilled workers machined the ptfe bellows seal WB2 by high precision CNC machine.



PRODUCT ADVANTAGE

bg



1
1
100% virgin ptfe raw material for ptfe bellows
1
1
High precision CNC machining Teflon bellows
1
1
Strong quality stainless steel for seal frame.
1
1
20 years experience for ptfe bellows seal



Lepu-Professional Ptfe Bellows Seal Wb2 From 20 Years Professional Mechanical-1
Lepu-Professional Ptfe Bellows Seal Wb2 From 20 Years Professional Mechanical-2


PRODUCT TECHNICAL SPECIFICATION

bg


  • ◪  PTFE bellows seals

  • ◪  Externally mounted,Independent of direction of rotation.

  • ◪ With spring protective sleeve



PRODUCT TECHNICAL DRAWING

bg




SHAFT SIZE LIST

bg



Operating Range:
◪  Temperature: -20--120℃
◪  Speed: 10m/s
◪  Pressure: 5bar
◪  Standard size: 1"--2.375"


Material:
◪  Seal ring: Car,Sic,Ssic,Ceramic,PTFE,Glassfill
◪  Secondary seal: PTFE
◪  Spring and metal parts: 304,316



PRODUCT APPLICATION

bg


◪ Chemical and organic compounds industry

◪ Extreme corrosion resistance media
◪ Anticorrosive Pumps
◪ Other Rotating Equipment.




DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
