High Quality Mechanical Seal LPW03/LPW03S
Product Introduction
The LPW03 mechanical seal is a cost-effective alternative to the Aesseal W03 model, engineered for industrial pumping systems handling clean water, sewage water, and oil media. Operating within a temperature range of -40℃ to 200℃, it delivers reliable sealing performance at speeds up to 15m/s and pressures ≤0.8MPa, covering most standard fluid transfer applications.
● Lepu Seal mechanical seal manufacturer & supplier can provide OEM service.
● We are a mechanical seal manufacturer with 25 years of production experience since 1998 in China.

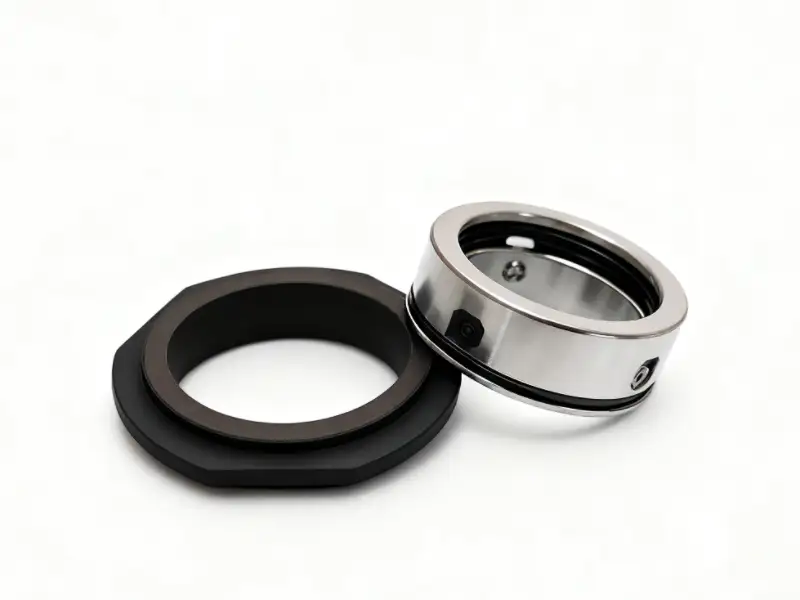

The LPW03 / LPW03S
The seal features versatile material combinations: The rotary ring offers options of SUS304/SUS316, silicon carbide, or tungsten carbide, while the stationary ring is available in carbon graphite, silicon carbide, or tungsten carbide configurations, creating optimized tribological pairs. Secondary seals include FKM, NBR, or EPDM elastomers to meet different chemical compatibility requirements. All metal components, including springs, are constructed from SUS304 or SUS316 stainless steel, ensuring long-term durability in corrosive environments.
With a compact design that matches the exact dimensions of the original Aesseal W03, the LPW03 enables direct replacement without equipment modification. Its balanced design reduces face pressure and minimizes frictional heat generation, significantly extending service life in high-speed rotation scenarios. Ideal for water supply systems, wastewater treatment plants, and lubricating oil circulation pumps, this seal provides customers with a reliable and economical sealing solution.
Essential details Of Cartridge Mechanical Seal
|
Brand Name |
LEPU Seal |
|
Place of Origin |
China |
|
Model Number |
LPW03/LPW03S |
|
WShaft Size |
20--75mm |
|
Metal Parts |
Stainless Steel |
|
Working Temperature |
-40℃-- +200℃ |
|
Working Pressure |
≤ 0.8 Mpa |
|
Liner Speed |
≤ 15 m/s |
|
Avaiable Material |
CAR/SIC/VITON/SS316/SS304/NBR/EPDM/TC |
|
Standard or Nonstandard |
Standard |
