Lepu Seal - A Professional China Mechanical Seal Manufacturer providing Cartridge Seal, Grundfos Mechanical Seal And We offer free sample!

grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 1
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 2
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 3
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 4
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 5
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 6
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 7
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 8
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 9
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 1
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 2
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 3
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 4
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 5
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 6
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 7
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 8
grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture 9

grundfos pump seal kit grfe cnp conditioning grundfos mechanical seal manufacture

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-F
Shaft size:
12,16mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Company Advantages
1. Same quality as the original cost less than the original. The grundfos pump seal kit that is reinforced with mechanical seal grundfos pump composite is unique and in the grundfos mechanical shaft seals machinery industry only to be found in Lepu Machinery.
2. 'Strictly abide by the contract and deliver promptly' is Guangzhou Lepu Machinery CO., LTD's consistent principle. Lepu seals: small but essential
3. Training programs at Guangzhou Lepu Machinery CO., LTD facilities are designed to create a skilled and responsible workforce, able to meet and exceed the customer requirements and expectations, across all activities. Lepu seals can be applied to all kinds of pumps
4. grundfos mechanical seal is representative of kit shaft seal grundfos as it has all the merits of mechanical seal pompa grundfos. Lepu seals are 100% same as the original design
5. Focus on mechanical seals for 20 years. The grundfos pump seal,Grundfos Mechanical Seal Suppliers offered by us is widely appreciated for its Mechanical Seal for Grundfos Pump and grundfos pump seal kit.

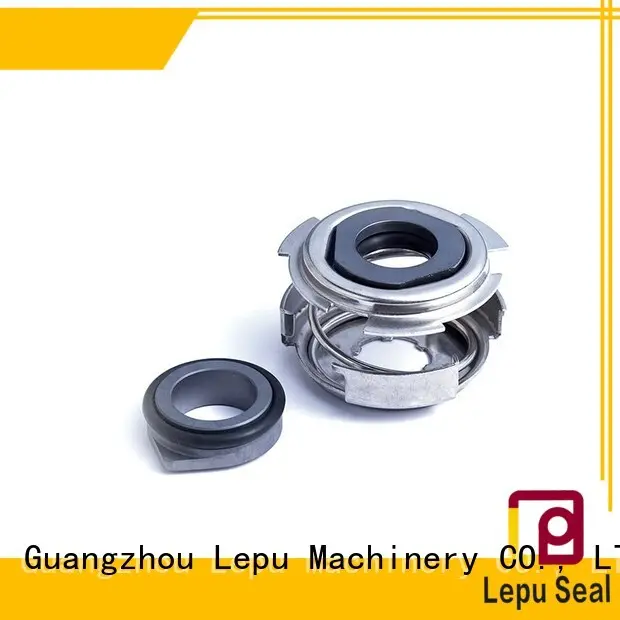

Lepu-Grundfos Mechanical Seal Grf-f Fit For Grundfos Cm Horizontal Pump - Lepu


Grundfos mechanical seal GRF-E is a pump seal which fit for Grundfos CM horizontal pumps,  like CM 1/3/5, CM 10/15/25, this grundfos seal get 2 shaft size only, 12mm and 16mm.

The popular material for the seal face is carbon and silicon, those 2 material can be used for both rotary and stationary seal face, the rubber part normally use epdm or viton. Sometime use tungsten carbide for the grundfos seal ring, but the cost is higher than silicon or carbon.

Lepu seal manufacture this seal in the past years, and sell it to many countries who using grundfos pump. We are your best choice for this grundfos seal.



PRODUCT ADVANTAGE

bg



1
1
High density sintered silicon material for the seal face
1
1
Free sample available for this seal
1
1
Competitive price and fast delivery
1
1
100% replacement for original grundfos CM seal



Lepu-Grundfos Mechanical Seal Grf-f Fit For Grundfos Cm Horizontal Pump - Lepu-1
Lepu-Grundfos Mechanical Seal Grf-f Fit For Grundfos Cm Horizontal Pump - Lepu-2

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


  • ◪ Temperature:-30℃ to 180℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: SSic/TC/CARBON

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel



PRODUCT TECHNICAL DRAWING

bg



Specification and size :

12mm, 16mm



PRODUCT APPLICATION

bg


This grundfos seal working for Grundfos CM horizontal pumps,  Pump model:

CM 1/3/5, CM 10/15/25


grundfos CM pump



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.



Lepu-Grundfos Mechanical Seal Grf-f Fit For Grundfos Cm Horizontal Pump - Lepu-3
undefined
undefined
Lepu-Grundfos Mechanical Seal Grf-f Fit For Grundfos Cm Horizontal Pump - Lepu-6
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD has widely popularity and reputation in grundfos mechanical seal field.
2. In Guangzhou Lepu Machinery CO., LTD, only finest-quality grundfos pump seal can be provided.
3. Guangzhou Lepu Machinery CO., LTD keeps concentrated on superior service for customers. Ask!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
