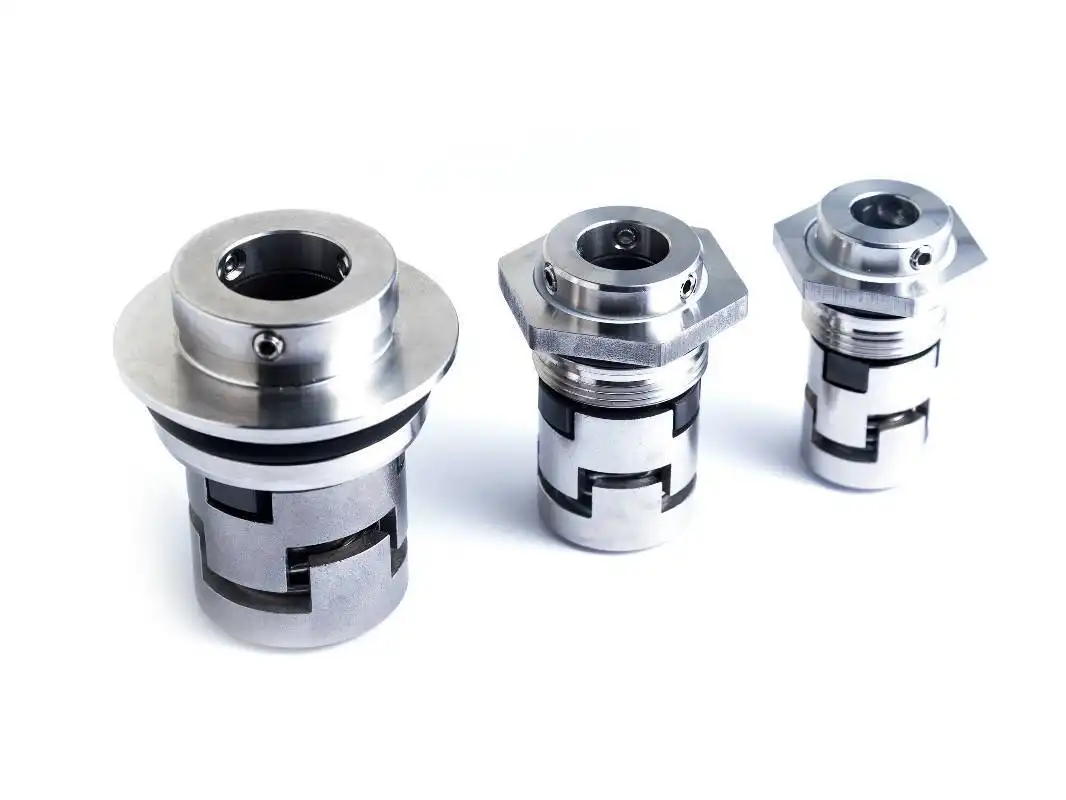

Cartridge Grundfos Mechanical Seals Grf-c Grundfos Cr Vertical Pump Mechanical Seal

This cartridge grundfos mechanical seal is a smart design pump seal for grundfos vertical pump, this seal suit for grundfos CR CRI and CRN series vertical water pumps. As a special cartridge mechanical seal, we follow the original grundfos design 100% for this seal, this help to avoid any installation mistake when you install the seal for the grundfos pump, and make installation easy. Our grundfos mechanical seal frame and spring are made by strong quality stainless steel SS304( SS316 available too) material, help to against rusty problem. We use SSIC (Pressureless Sintered Silicon Carbide) as stationary and rotary seal face, it is much better than normal material RSIC(Reaction sintered Silicon Carbide), offer more wear resistance for the grundfos mechanical seal. For Rubber part, normally people choose EPDM or VITON for secondary seal. Our grunfos mechanical seal will or vertical pump mechanical seal make your pump as good as new and reduce downtime, and last longer time when pump running.

Grundfos Pump Mechanical Seals are an important component of many pumping systems, providing a reliable seal between the pump and the motor.

Some potential benefits of Grundfos Pump Mechanical Seals include:

● Enhanced efficiency: Grundfos Pump Mechanical Seals are designed to minimize the amount of fluid leakage between the pump and motor, which can improve the overall efficiency of the system.

● Reduced maintenance: The use of high-quality materials and design of Grundfos Pump Mechanical Seals can result in less wear and tear on the seal, leading to reduced maintenance requirements and longer service life.

● Improved safety: Properly installed and maintained mechanical seals can help prevent leaks and spills, reducing the risk of damage to equipment and injury to personnel.

● Cost-effective: Grundfos Pump Mechanical Seals can be a cost-effective solution for sealing pumps in a variety of applications, with their long service life and low maintenance requirements potentially resulting in significant cost savings over time.

● Versatile: Grundfos Pump Mechanical Seals can be used in a wide range of industrial applications, including water treatment, food and beverage, pharmaceuticals, and more, making them a versatile solution for many different pumping needs.

Advantage introduction:competitive price+ fast delivery+top after-sale service

• ◪ Standard or Nonstandard: Standard

• ◪ Model Number:GRF-C

• ◪ Sealing Face: Carbon, SSIC, TC

• ◪ Secondary Sealing Combination:NBR, EPDM, VITON

• ◪ Sealing Frame:stainless steel

• ◪ Working Temperature:-30℃ --- 200℃

• ◪ Working pressure: ≤ 1.2MPA

• ◪ Linear Speed:≤ 10m/s

◪ Grundfos mechanical Seals suit for Pump.

◪ CR1，CR3，CR5，CRN1，CRN3，CRN5，CRI1，CRI3，CRI5 Series.

◪ CR32， CR45， CR64， CR90 Series pump

◪ CRN32， CRN45， CRN64， CRN90 Series pump

Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
