Breathable grundfos seal conditioning supplier for sealing joints

Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-C
Shaft size:
12mm, 16mm,22mm, 32mm
Avaiable material:
CARBON/SSIC/TC/EPDM/VITON
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
1 day
Supply Ability:
5000 set/month
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Application Scope
With wide application, Cartridge Seal can be used in the following aspects.LEPU SEAL insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
  • Breathable grundfos seal conditioning supplier for sealing joints 11
Product Comparison
Grundfos Mechanical Seal is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable.Compared with other products in the industry, Grundfos Mechanical Seal has more obvious advantages which are reflected in the following aspects.
  • Breathable grundfos seal conditioning supplier for sealing joints 12
    Breathable grundfos seal conditioning supplier for sealing joints 13
Company Advantages
1. One of Lepu’s greatest strengths and benefits offered to our clients is the ability to develop unique design.
2. grundfos seal excels due to its excellent properties of mechanical seal grundfos pump .
3. The product only requires little time to clean because it has a self-cleaning capacity. People only need to clean it for a certain time.


undefined

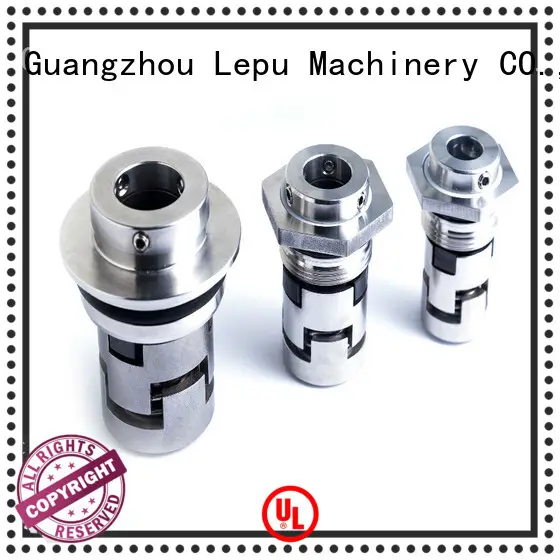

This cartridge grundfos mechanical seal is a smart design pump seal for grundfos vertical pump, this seal suit for grundfos CR CRI and CRN series vertical water pumps. As a special cartridge mechanical seal, we follow the original grundfos design 100% for this seal, this help to avoid any installation mistake when you install the seal for the grundfos pump, and make installation easy. Our grundfos mechanical seal frame and spring are made by strong quality stainless steel SS304( SS316 available too) material, help to against rusty problem. We use SSIC (Pressureless Sintered Silicon Carbide) as stationary and rotary seal face, it is much better than normal material RSIC(Reaction sintered Silicon Carbide), offer more wear resistance for the grundfos mechanical seal. For Rubber part, normally people choose EPDM or VITON for secondary seal. Our grunfos mechanical seal will make your pump as good as new and reduce downtime, and last longer time when pump running.



PRODUCT ADVANTAGE

bg



1
1
High quality SSIC for stationary and rotary seal face.
1
1
Welded type products, 100% same with original grundfos design
1
1
Top quality stainless steel for seal frame and spring against rusty problem
1
1
Stock seals ready to go at once after you place order.
1
1
Accept small order, only need 1pcs quantity.



undefined
undefined
undefined
undefined

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


undefined
  • ◪ Standard or Nonstandard: Standard

  • ◪ Model Number:GRF-C

  • ◪ Sealing Face: Carbon, SSIC, TC

  • ◪ Secondary Sealing Combination:NBR, EPDM, VITON

  • ◪ Sealing Frame:stainless steel

  • ◪ Working Temperature:-30℃ --- 200℃

  • ◪ Working pressure: ≤ 1.2MPA

  • ◪ Linear Speed:≤ 10m/s



PRODUCT APPLICATION

bg


◪ Grundfos mechanical Seals suit for Pump.

◪ CR1,CR3,CR5,CRN1,CRN3,CRN5,CRI1,CRI3,CRI5 Series.

◪ CR32, CR45, CR64, CR90 Series pump

◪ CRN32, CRN45, CRN64, CRN90 Series pump


undefined
undefined



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.
