Brand Name:
Lepu
Place of Origin:
Guangzhou, China
Model Number:
GRF-B
Shaft size:
12,16mm
Avaiable material:
CARBON/SIC/TC/EPDM/VITON, SS304 or SS316
Certification:
SGS,ISO,CE/UL/SGS/…
OEM/ODM Availability:
Yes
Package:
Carton box
Delivery Time:
3 day
Supply Ability:
100000 set/MONTH
MOQ:
1 set
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Inquiry
Product Details
With the dedication to pursue excellence, LEPU SEAL strives for perfection in every detail.LEPU SEAL has professional production workshops and great production technology. Mechanical seal we produce, in line with the national quality inspection standards, has reasonable structure, stable performance, good safety, and high reliability. It is also available in a wide range of types and specifications. Customers' diverse needs can be fully fulfilled.
  • Breathable grundfos mechanical seal catalogue holes get quote for sealing frame 10
Enterprise Strength
  • Based on customer demand, LEPU SEAL promotes appropriate, reasonable, comfortable and positive service methods to provide more intimate services.
Company Advantages
1. The design of Lepu mechanical seal grundfos pump is of professionalism. It is carried out considering many factors such as mechanical structure, spindles, control system, and part tolerances.
2. The product is known for its less maintenance and outstanding performance.
3. It is in high accordance with the first-class quality inspection standards.
4. The product can replace labor to work on operations that are harmful or dangerous, while at the same time, it can avoid operators' mistakes.


Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical

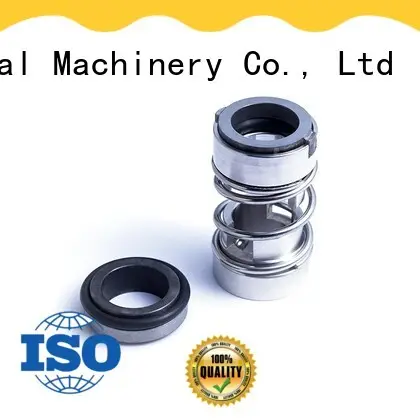

Oring structure Grundfos Mechanical Seal GRF-B were designed for grundfos CH, CNP-CDL series pump. This mechanical seal can work in high temperature and corrosive medium condition.

The rotary and stationary seal face can choose carbon or silicon as material, rubber seal part depends on what liquid, most people use viton or epdm.

As a leading mechanical seal manufacturer since 1998, lepu seal factory make this grundfos mechanical seal GRF-B for a long time, and more than 100 clients keep buying this seal from our seal factory, all give positive feedback about this seal.



PRODUCT ADVANTAGE

bg



1
1
High density silicon material for the seal face
1
1
Stong stainless steel for the seal frame( SS304 or SS316)
1
1
Competitive price with fast delivery for this seal
1
1
100% replacement for original grundfos seal part



Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-1
Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-2
Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-3

Advantage introduction:competitive price+ fast delivery+top after-sale service

PRODUCT TECHNICAL SPECIFICATION

bg


Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-4
  • ◪ Temperature:-30℃ to 200℃

  • ◪ Pressure:≤1.2MPa

  • ◪ Speed:≤10m/s

  • ◪ Materials

  • ◪ Stationary Ring: Sic/TC/Carbon

  • ◪ Rotary Ring: Sic/TC

  • ◪ Secondary Seal: NBR / EPDM / Viton

  • ◪ Spring and Metal Part: Stainless Steel



PRODUCT TECHNICAL DRAWING

bg


Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-5


GRF-B O-ring compnent seal

Specification and size :

12mm, 16mm



PRODUCT APPLICATION

bg


Working for CH-12 /CNP-CDL-12 PUMP, CH-16/CNP-CDL-16 PUMP


Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-6



DISPLAY DIAGRAM

bg


Guangzhou Lepu machinery CO., LTD becomes one of the leading mechanical seal supplier in south of china, we focus in designing and manufacturing mechanical seal for many kinds of famous brand pumps, our mechanical seal cover many kinds of industry like food, petrol chemical, paper making, sea ship, and so on.


Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-7


Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-8
undefined
undefined
Lepu-Professional Mechanical Seal Grundfos Pump Grundfos Mechanical-11
undefined
undefined





Company Features
1. Guangzhou Lepu Machinery CO., LTD is one of the prominent manufacturers of mechanical seal grundfos pump . Over the years, we have been focusing on design and production.
2. We have been partnering with many famous brands around the world. Over the years, we have finished many projects and earned a strong customers base that is loyal to us for years.
3. The operating tenet of Guangzhou Lepu Machinery CO., LTD is to Grundfos Mechanical Seal Suppliers . Check now! mechanical seal pompa grundfos is the tenet that we've stuck to for years. Check now! We can do all that our customers want us to do for grundfos mechanical seal catalogue . Check now! Guangzhou Lepu Machinery CO., LTD strictly implemented grundfos pump mechanical seal design and production according to Mechanical Seal for Grundfos Pump. Check now!
